MCU31W-AWAGK (2003)
Toyota Harrier
Production
Feb 2003
-
Jan 2006
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

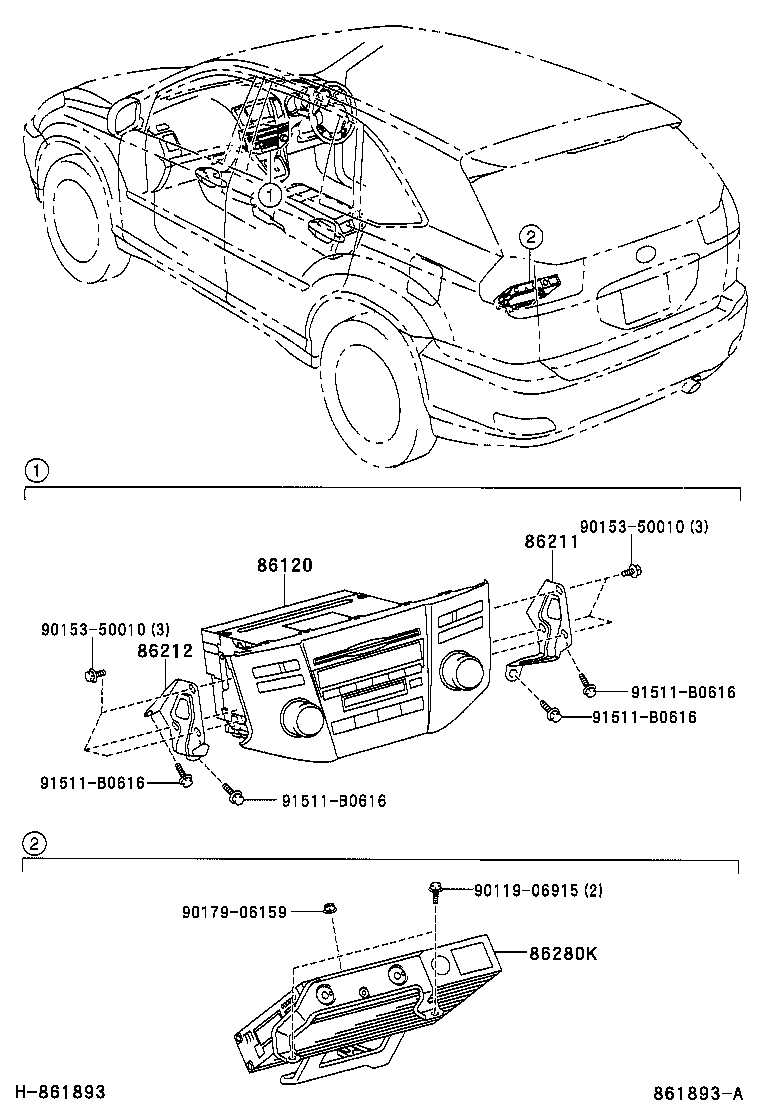

ILLUST NO. 1 OF 3(0302-0601)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-48300 |
MCU31,36 MATSUSHITA,ID=50320,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-48760 |
MCU31,36 PANASONIC,ID=50340,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-48300 |
MCU31,36 MATSUSHITA,ID=50320,TYPE B:ｲﾗｽﾄ参照,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86120-48760 |
MCU31,36 PANASONIC,ID=50340,TYPE B:ｲﾗｽﾄ参照,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-48030 |
ACU3#,MCU3# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-48030 |
ACU3#,MCU3# |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W320 |
MCU31,36 |
1 | ||
| 86280-0W230 |
MCU31,36 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50010 | ||||
| 90179-06159 | ||||
| 91511-B0616 | ||||

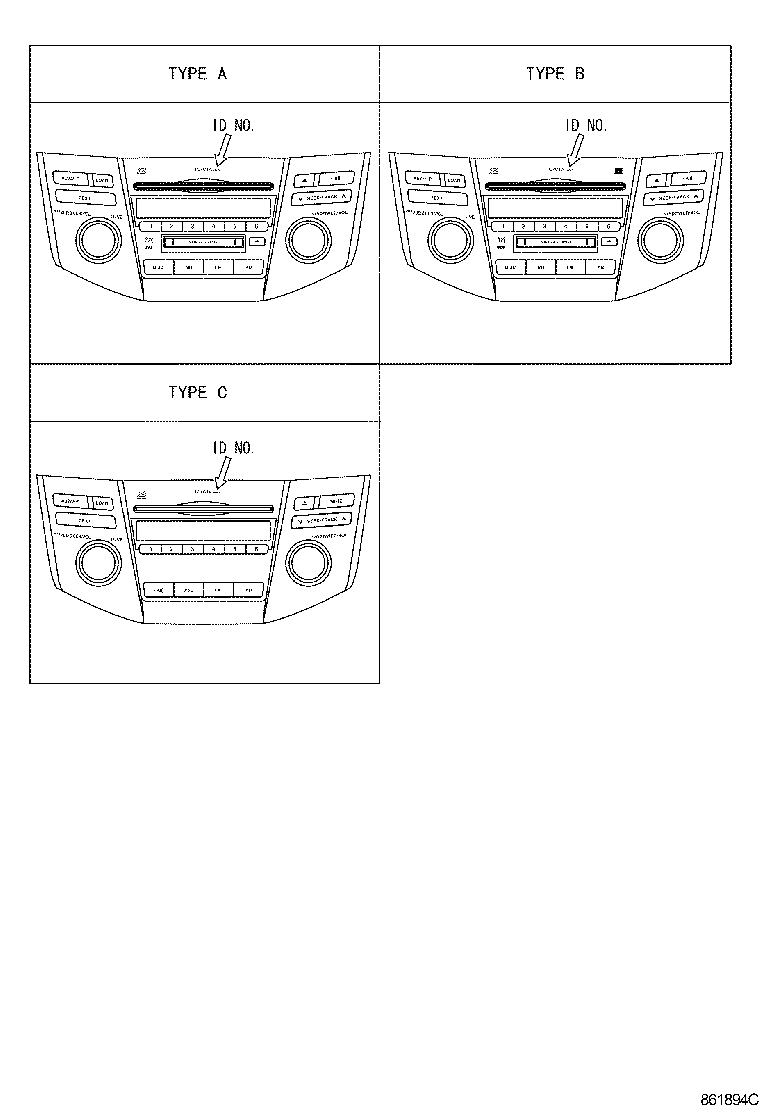

ILLUST NO. 2 OF 3(0302-0601)
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|

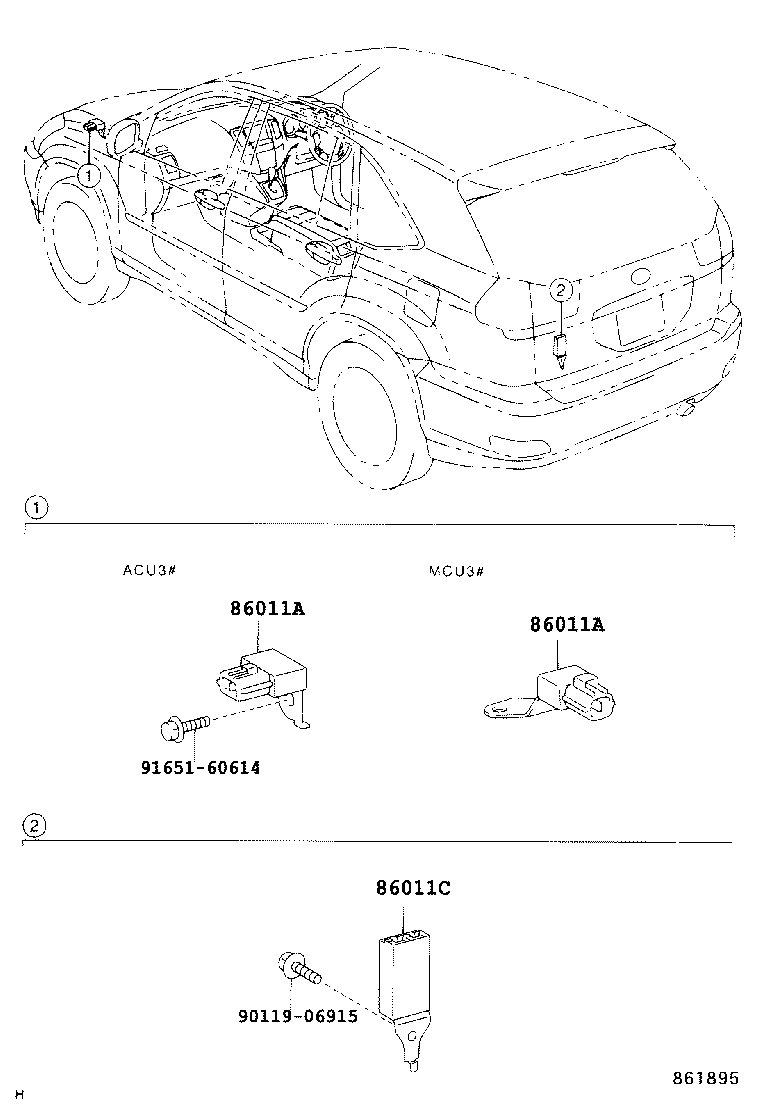

ILLUST NO. 3 OF 3(0302-0601)
Click highlighted areas on diagram
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04153 |
MCU3# |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04153 |
MCU3# |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-04172 |
ACU3#,MCU3# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91651-60614 | ||||
