MCU31W-AWAGK (2003)
Toyota Harrier

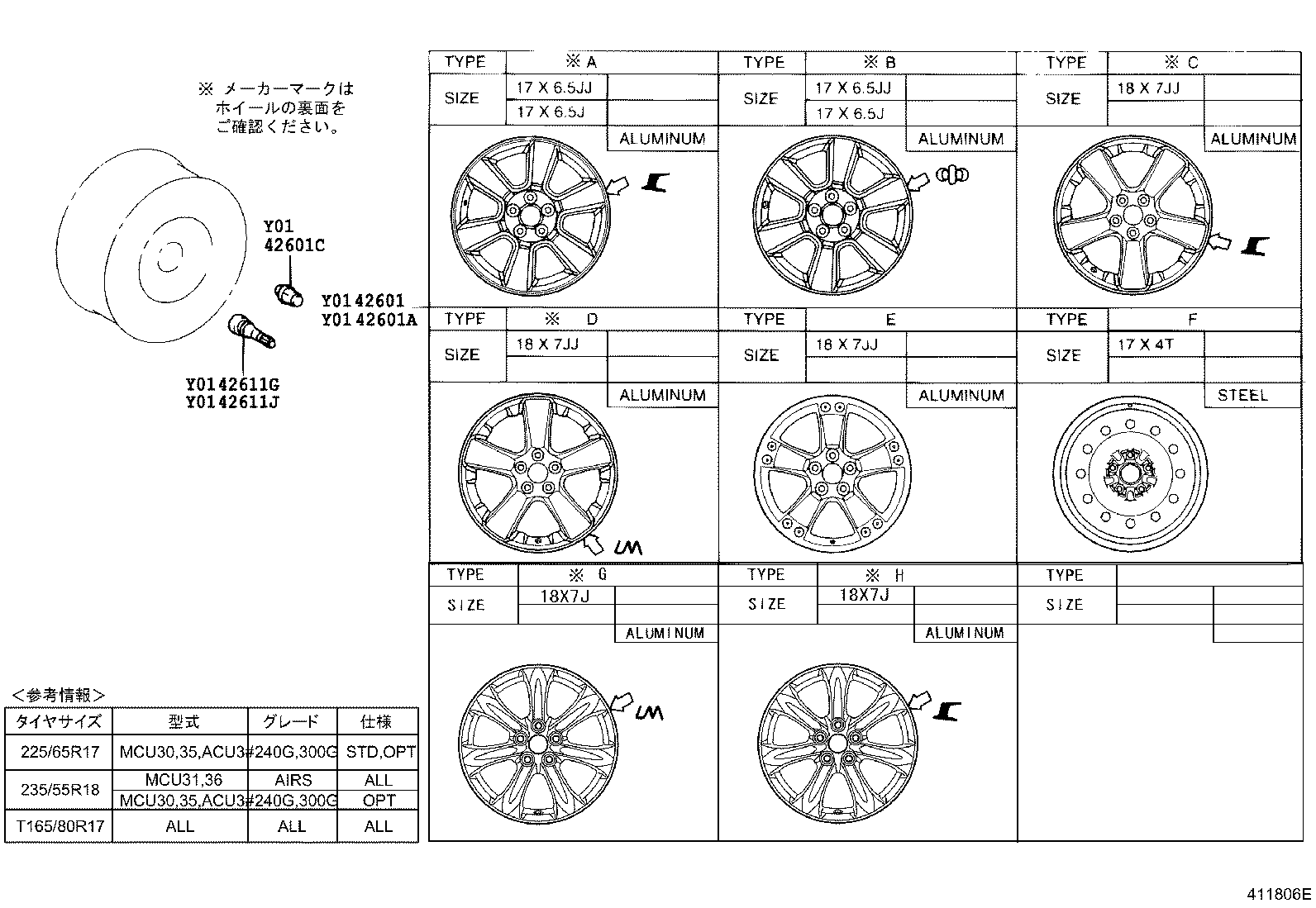

ILLUST NO. 1 OF 3(0302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-48220 |
MCU31,36 18X7JJ,ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE C:ｲﾗｽﾄ参照 |
4 | ||
| 42611-48230 |
MCU31,36 18X7JJ,#,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE D:ｲﾗｽﾄ参照 |
4 | ||
| 42611-48220 |
MCU31,36 18X7JJ,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE C:ｲﾗｽﾄ参照 |
4 | ||
| 42611-48230 |
MCU31,36 18X7JJ,#,ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE D:ｲﾗｽﾄ参照 |
4 | ||
| 42611-48240 |
MCU31,36 18X7JJ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 42611-48221 |
MCU31,36 18X7JJ,ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE C:ｲﾗｽﾄ参照 |
4 | ||
| 42611-48231 |
MCU31,36 18X7JJ,#,ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE D:ｲﾗｽﾄ参照 |
4 | ||
| 42611-48241 |
MCU31,36 18X7JJ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 42611-48221 |
MCU31,36 18X7JJ,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE C:ｲﾗｽﾄ参照 |
4 | ||
| 42611-48231 |
MCU31,36 18X7JJ,#,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE D:ｲﾗｽﾄ参照 |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-48230 |
MCU31,36 18X7JJ,#,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 42611-48220 |
MCU31,36 18X7JJ,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 42611-50090 |
ACU3#,MCU3# 17X4T,TYPE F:ｲﾗｽﾄ参照 |
1 | ||
| 42611-48221 |
MCU31,36 18X7JJ,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 42611-48240 |
MCU31,36 18X7JJ,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 42611-48231 |
MCU31,36 18X7JJ,#,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ),TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 42611-48241 |
MCU31,36 18X7JJ,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
ACU3#,MCU3# |
20 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
ACU3#,MCU3# ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ |
4 | ||
| 90942-05009 |
ACU3#,MCU3# |
4 | ||
| 90942-05009 |
MCU31,36 ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ) |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
ACU3#,MCU3# ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ |
1 | ||
| 90942-05009 |
ACU3#,MCU3# |
1 | ||
| 90942-05009 |
MCU31,36 ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ&ﾘﾔ ｽﾎﾟｲﾗｰ有り(ﾌﾞﾗｯｸ) |
1 | ||

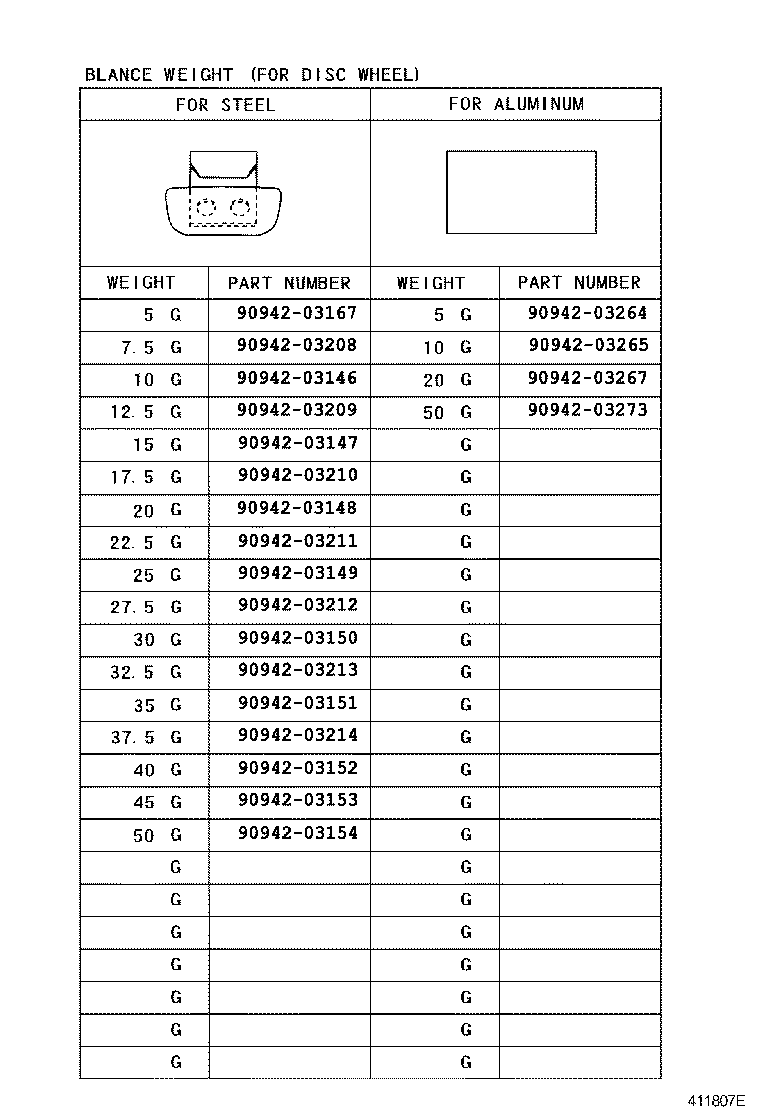

ILLUST NO. 3 OF 3(0302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03267 | ||||
| 90942-03273 | ||||
ILLUST NO. 2 OF 3(0302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-33090 |
ACU3#,MCU3# *ALU,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-48010 |
MCU31,36 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42602-48010 |
MCU31,36 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42602-48010 |
MCU31,36 ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ,TYPE A:ｲﾗｽﾄ参照 |
5 | ||
| 42602-48010 |
MCU31,36 ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ,TYPE A:ｲﾗｽﾄ参照 |
5 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-48010 |
MCU31,36 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42602-48010 |
MCU31,36 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42602-48010 |
MCU31,36 ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ,TYPE A:ｲﾗｽﾄ参照 |
5 | ||
| 42602-48010 |
MCU31,36 ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ,TYPE A:ｲﾗｽﾄ参照 |
5 | ||
| 42627B - BOLT, WHEEL CAP SET | ||||
| 42627-24010 |
MCU31,36 |
40 | ||
| 42627-24010 |
MCU31,36 ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ |
50 | ||
