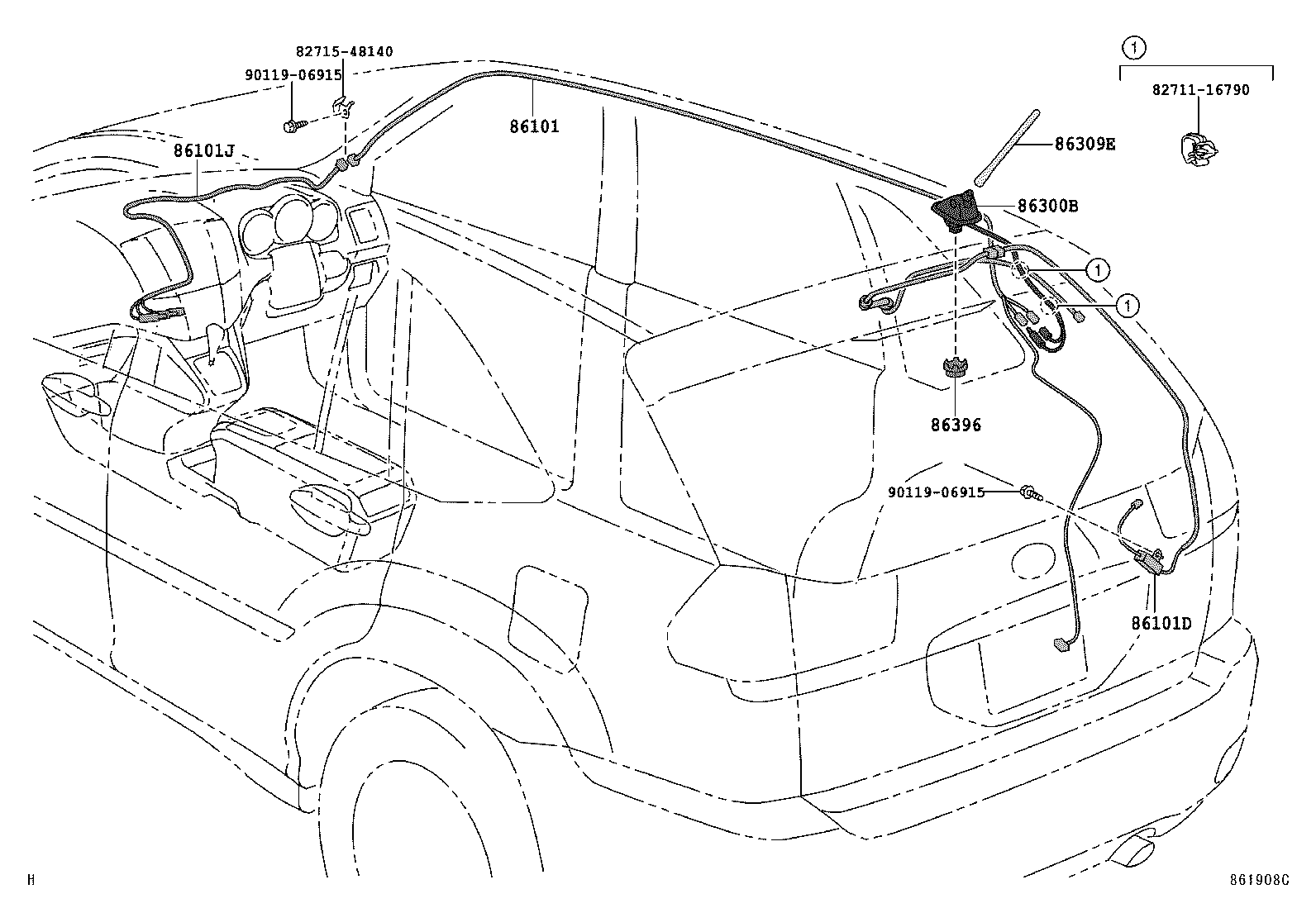

MCU30W-AWAGK (2003)
Toyota Harrier
(0302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-48290 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り |
1 | ||
| 86101-48280 |
ACU3#,MCU3# |
1 | ||
| 86101-48330 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り&DVDﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86101-48320 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 86101-48290 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86101-48330 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り&DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-48340 |
ACU3#,MCU3# |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-48180 |
ACU3#,MCU3# |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-48130 |
ACU3#,MCU3# |
1 | ||
| 86309E - POLE SUB-ASSY, ROOF ANTENNA | ||||
| 86309-20310 |
ACU3#,MCU3# |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-20040 |
ACU3#,MCU3# |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82715-48140 | ||||
| 90119-06915 | ||||

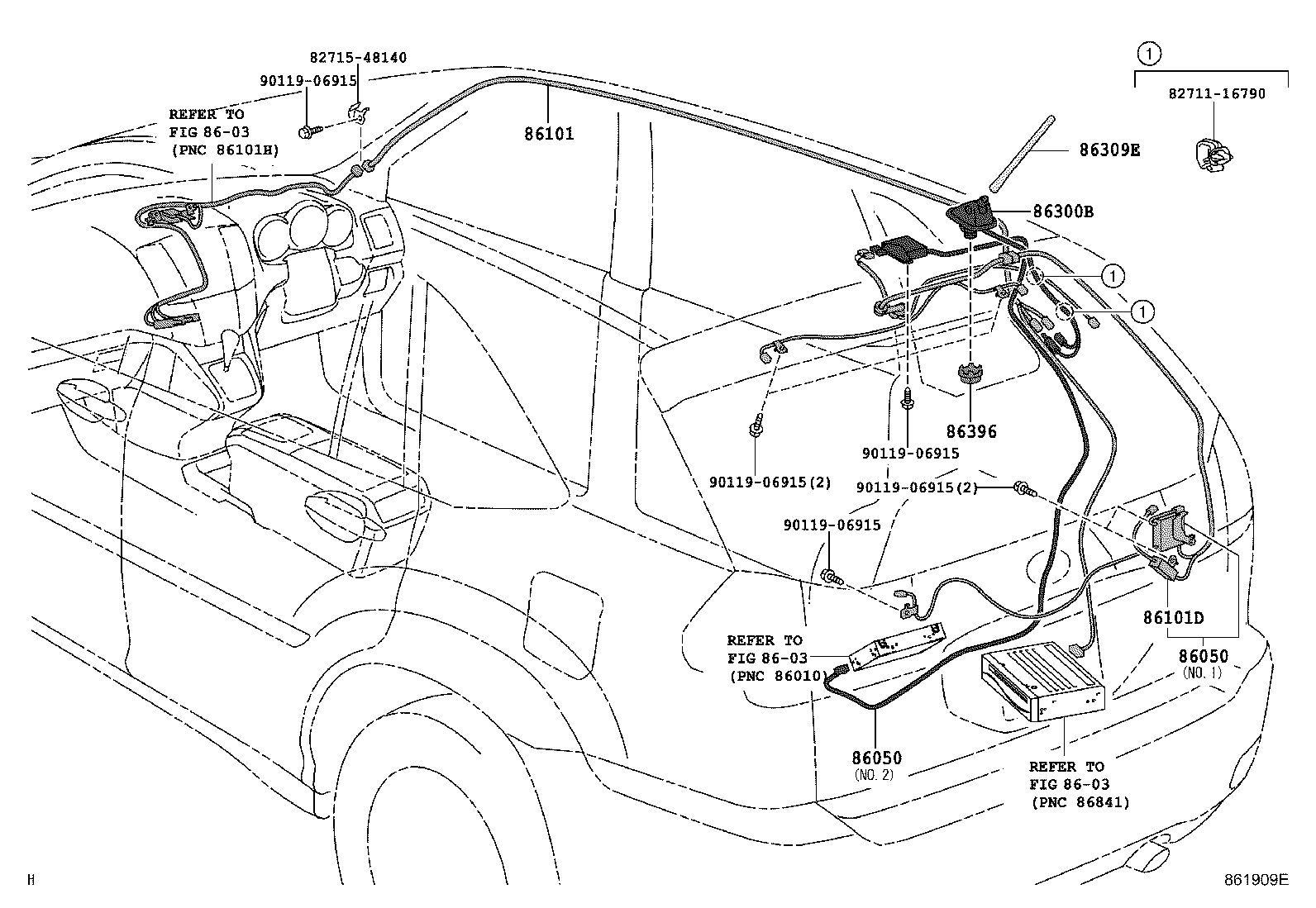

(0302-0601)
ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-48050 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り&DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り,NO.1 |
1 | ||
| 86050-48060 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ有り,NO.2 |
1 | ||
| 86050-48060 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り,NO.2 |
1 | ||
| 86050-48050 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り,NO.1 |
1 | ||
| 86050-48050 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ有り,NO.1 |
1 | ||
| 86050-48050 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り&DVDﾅﾋﾞｹﾞｰｼｮﾝ有り,NO.1 |
1 | ||
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-48050 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り&DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り,NO.1 |
1 | ||
| 86050-48060 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ有り,NO.2 |
1 | ||
| 86050-48060 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り,NO.2 |
1 | ||
| 86050-48050 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り,NO.1 |
1 | ||
| 86050-48050 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ有り,NO.1 |
1 | ||
| 86050-48050 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り&DVDﾅﾋﾞｹﾞｰｼｮﾝ有り,NO.1 |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-48290 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り |
1 | ||
| 86101-48280 |
ACU3#,MCU3# |
1 | ||
| 86101-48330 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り&DVDﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86101-48320 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り |
1 | ||
| 86101-48290 |
ACU3#,MCU3# DVDﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86101-48330 |
ACU3#,MCU3# ﾏﾙﾁﾊﾟﾈﾙｶﾞﾗｽ ﾑｰﾝﾙｰﾌ有り&DVDﾅﾋﾞｹﾞｰｼｮﾝ & TV有り |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-48340 |
ACU3#,MCU3# |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-48130 |
ACU3#,MCU3# |
1 | ||
| 86309E - POLE SUB-ASSY, ROOF ANTENNA | ||||
| 86309-20310 |
ACU3#,MCU3# |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-20040 |
ACU3#,MCU3# |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82715-48140 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8603 | ||||
