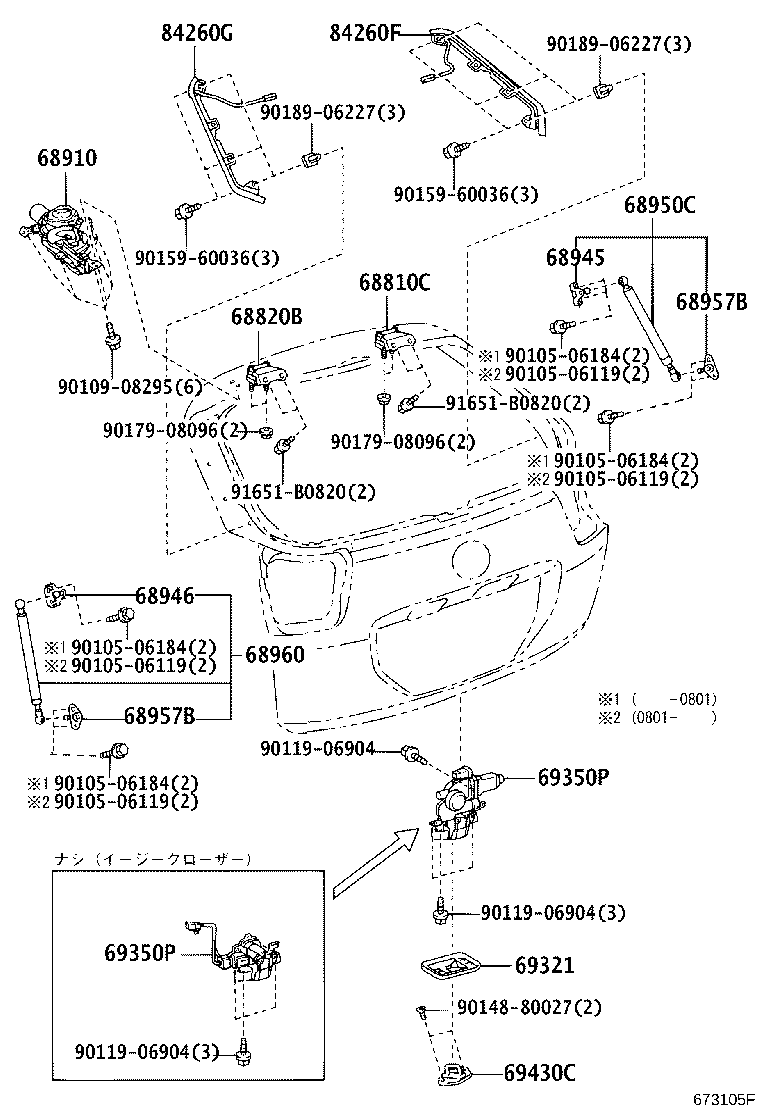

MCU30W-AWAGK (2003)
Toyota Harrier
(0302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-48010 |
ACU3#,MCU3# |
1 | ||
| 68820B - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-48010 |
ACU3#,MCU3# |
1 | ||
| 68910 - UNIT ASSY, POWER BACK DOOR | ||||
| 68910-48010 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 68910-48010 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ 2*(T) |
1 | ||
| 68910-48010 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-48030 |
ACU3#,MCU3# |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68945-48030 |
ACU3#,MCU3# |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-49035 |
ACU3#,MCU30,35 |
1 | ||
| 68950-49175 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 68950-49175 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 68950-49165 |
ACU3#,MCU30,35 |
1 | ||
| 68950-49175 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ 2*(T) |
1 | ||
| 68950-49045 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 68957B - BRACKET, BACK DOOR STAY, LOWER | ||||
| 68957-13020 |
ACU3#,MCU3# |
2 | ||
| 68957B - BRACKET, BACK DOOR STAY, LOWER | ||||
| 68957-13020 |
ACU3#,MCU3# |
2 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-49175 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 68960-49165 |
ACU3#,MCU30,35 |
1 | ||
| 68960-49035 |
ACU3#,MCU30,35 |
1 | ||
| 68960-49175 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 68960-49175 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ 2*(T) |
1 | ||
| 68960-49045 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 69321 - COVER, BACK DOOR LOCK | ||||
| 69321-22020 |
ACU3#,MCU3# |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-48030 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 69350-48030 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 69350-22010 |
ACU3#,MCU30,35 |
1 | ||
| 69350-48030 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ 2*(T) |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-48030 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 69350-48030 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 69350-22010 |
ACU3#,MCU30,35 |
1 | ||
| 69350-48030 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ 2*(T) |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-48010 |
ACU3#,MCU3# |
1 | ||
| 84260F - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84260-48010 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ 2*(T) |
1 | ||
| 84260-48010 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 84260-48010 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 84260G - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84260-48020 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 84260-48020 |
ACU3#,MCU30,35 ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ 2*(T) |
1 | ||
| 84260-48020 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| Common parts | ||||
| 90105-06119 | ||||
| 90105-06184 | ||||
| 90109-08295 | ||||
| 90119-06904 | ||||
| 90148-80027 | ||||
| 90159-60036 | ||||
| 90179-08096 | ||||
| 90189-06227 | ||||
| 91651-B0820 | ||||
