MCU15W-AWPGK (1998)
Toyota Harrier
(9712-0108)

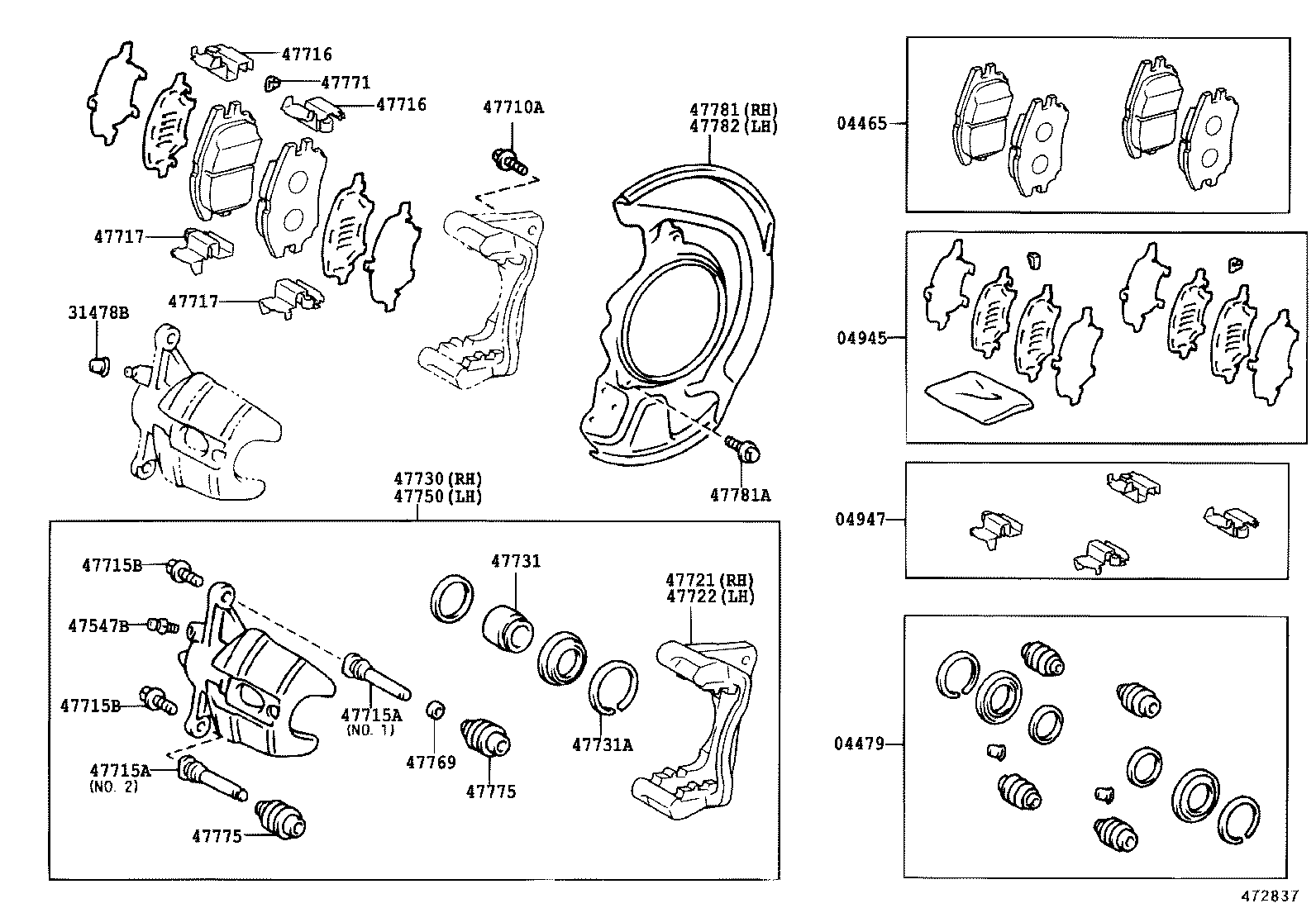

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-48010 |
ACU1#,MCU1#,SXU1# ﾏｰｸ AK PA533 |
1 | ||
| 04465-48050 |
ACU1#,MCU1# ﾏｰｸ AK PA560H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-33130 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-48040 |
ACU1#,MCU1# |
1 | ||
| 04945-48020 |
MCU1#,SXU1# |
1 | ||
| 04945-33040 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-33120 |
MCU1#,SXU1# |
1 | ||
| 04947-48020 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 04947-48030 |
ACU1#,MCU1# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
ACU1#,MCU1#,SXU1# *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48010 |
ACU1#,MCU1#,SXU1# NO.1 |
2 | ||
| 47715-48020 |
ACU1#,MCU1#,SXU1# NO.2 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48010 |
ACU1#,MCU1#,SXU1# NO.1 |
2 | ||
| 47715-48020 |
ACU1#,MCU1#,SXU1# NO.2 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-33080 |
MCU1#,SXU1# |
2 | ||
| 47716-48050 |
ACU1#,MCU1# |
4 | ||
| 47716-48030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-33080 |
MCU1#,SXU1# |
2 | ||
| 47716-48030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47716-48060 |
ACU1#,MCU1# |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-48011 |
ACU1#,MCU1# |
1 | ||
| 47721-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-48011 |
ACU1#,MCU1# |
1 | ||
| 47721-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-48011 |
ACU1#,MCU1# |
1 | ||
| 47730-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-33050 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47750-48011 |
ACU1#,MCU1# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-33020 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-33010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-33020 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-33020 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-48020 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47781-48010 |
MCU1#,SXU1# |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
MCU1#,SXU1# |
8 | ||
| 90119-06227 |
ACU1#,MCU1# |
8 | ||
| 90109-06134 |
ACU1#,MCU1#,SXU1# |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-48020 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47782-48010 |
MCU1#,SXU1# |
1 | ||
(0108- )

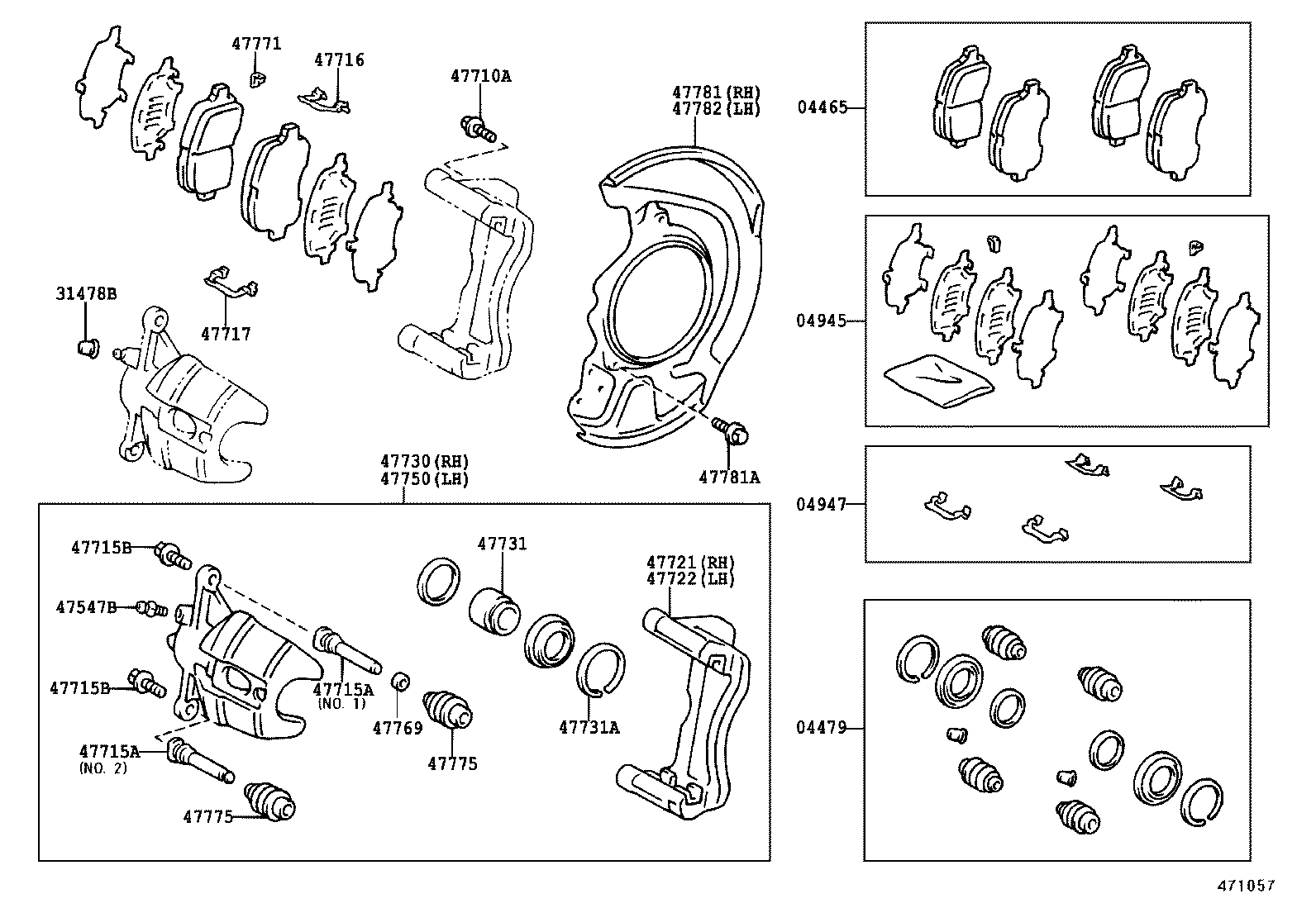

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-48010 |
ACU1#,MCU1#,SXU1# ﾏｰｸ AK PA533 |
1 | ||
| 04465-48050 |
ACU1#,MCU1# ﾏｰｸ AK PA560H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-33130 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-48040 |
ACU1#,MCU1# |
1 | ||
| 04945-48020 |
MCU1#,SXU1# |
1 | ||
| 04945-33040 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-33120 |
MCU1#,SXU1# |
1 | ||
| 04947-48020 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 04947-48030 |
ACU1#,MCU1# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
ACU1#,MCU1#,SXU1# *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48010 |
ACU1#,MCU1#,SXU1# NO.1 |
2 | ||
| 47715-48020 |
ACU1#,MCU1#,SXU1# NO.2 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48010 |
ACU1#,MCU1#,SXU1# NO.1 |
2 | ||
| 47715-48020 |
ACU1#,MCU1#,SXU1# NO.2 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-33080 |
MCU1#,SXU1# |
2 | ||
| 47716-48050 |
ACU1#,MCU1# |
4 | ||
| 47716-48030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-33080 |
MCU1#,SXU1# |
2 | ||
| 47716-48050 |
ACU1#,MCU1# |
4 | ||
| 47716-48030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-33080 |
MCU1#,SXU1# |
2 | ||
| 47716-48030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47716-48060 |
ACU1#,MCU1# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-33080 |
MCU1#,SXU1# |
2 | ||
| 47716-48030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47716-48060 |
ACU1#,MCU1# |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-48011 |
ACU1#,MCU1# |
1 | ||
| 47721-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-48011 |
ACU1#,MCU1# |
1 | ||
| 47721-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-48011 |
ACU1#,MCU1# |
1 | ||
| 47730-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-33050 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47750-48011 |
ACU1#,MCU1# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-33020 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-33010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-33020 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-33020 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-48020 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47781-48010 |
MCU1#,SXU1# |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
MCU1#,SXU1# |
8 | ||
| 90119-06227 |
ACU1#,MCU1# |
8 | ||
| 90109-06134 |
ACU1#,MCU1#,SXU1# |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-48020 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 47782-48010 |
MCU1#,SXU1# |
1 | ||
