MCU10W-AWPGK (1997)
Toyota Harrier

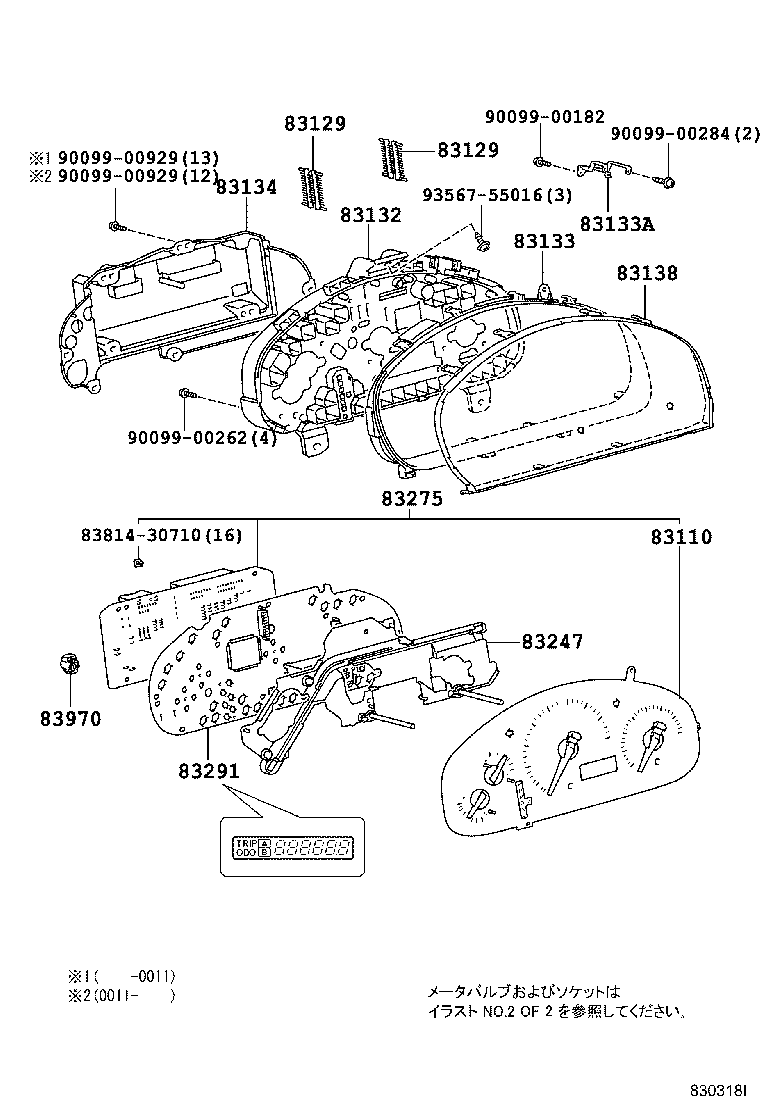

ILLUST NO. 1 OF 2(9712- )
ｽﾋﾟｰﾄﾞﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-48040 |
ACU1#,MCU1# DENSO |
1 | ||
| 83220-48010 |
MCU1#,SXU1# DENSO |
1 | ||
| 83220-48011 |
ACU1#,MCU1# DENSO,ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 83129 - WIRE, METER | ||||
| 83875-48010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 83129 - WIRE, METER | ||||
| 83875-48010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-48020 |
ACU1#,MCU1# |
1 | ||
| 83841-48010 |
MCU1#,SXU1# |
1 | ||
| 83841-48010 |
ACU1#,MCU1# ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83812-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-48010 |
MCU1#,SXU1# |
1 | ||
| 83821-48040 |
ACU1#,MCU1# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83864-48010 |
MCU1#,SXU1# |
1 | ||
| 83864-48011 |
ACU1#,MCU1# |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83801-48010 |
MCU1#,SXU1# DENSO |
1 | ||
| 83801-48011 |
ACU1#,MCU1# DENSO,ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 83801-48040 |
ACU1#,MCU1# DENSO |
1 | ||
| 83275-48010 |
MCU1#,SXU1# DENSO |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-48011 |
ACU1#,MCU1# DENSO,ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 83291-48040 |
ACU1#,MCU1# DENSO |
1 | ||
| 83291-48010 |
MCU1#,SXU1# DENSO |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83248-20010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| Common parts | ||||
| 83814-30710 | ||||
| 90099-00182 | ||||
| 90099-00262 | ||||
| 90099-00284 | ||||
| 90099-00929 | ||||
| 93567-55016 | ||||

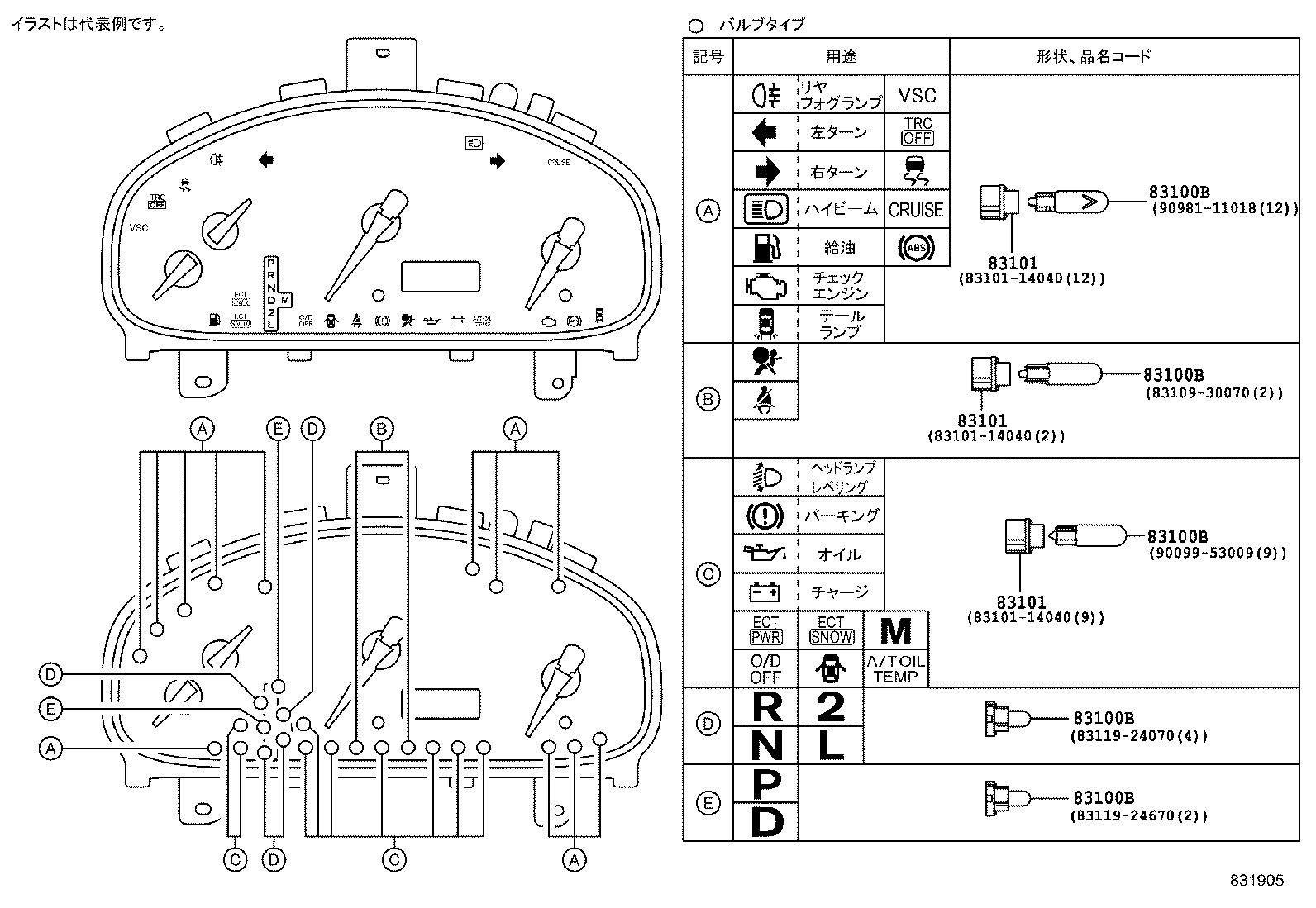

ILLUST NO. 2 OF 2(9712- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
ACU1#,MCU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
MCU1#,SXU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
MCU1#,SXU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90099-53009 |
MCU1#,SXU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90981-11018 |
MCU1#,SXU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30070 |
MCU1#,SXU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
ACU1#,MCU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
ACU1#,MCU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
ACU1#,MCU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83119-24070 |
ACU1#,MCU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
ACU1#,MCU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
MCU1#,SXU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
MCU1#,SXU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90099-53009 |
MCU1#,SXU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90981-11018 |
MCU1#,SXU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30070 |
MCU1#,SXU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
ACU1#,MCU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
ACU1#,MCU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
ACU1#,MCU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83119-24070 |
ACU1#,MCU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
ACU1#,MCU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
MCU1#,SXU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
MCU1#,SXU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90099-53009 |
MCU1#,SXU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90981-11018 |
MCU1#,SXU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30070 |
MCU1#,SXU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
ACU1#,MCU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
ACU1#,MCU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
ACU1#,MCU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83119-24070 |
ACU1#,MCU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
ACU1#,MCU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
MCU1#,SXU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
MCU1#,SXU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90099-53009 |
MCU1#,SXU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90981-11018 |
MCU1#,SXU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30070 |
MCU1#,SXU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
ACU1#,MCU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
ACU1#,MCU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
ACU1#,MCU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83119-24070 |
ACU1#,MCU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
ACU1#,MCU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
MCU1#,SXU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
MCU1#,SXU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90099-53009 |
MCU1#,SXU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 90981-11018 |
MCU1#,SXU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30070 |
MCU1#,SXU1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24670 |
ACU1#,MCU1# 14V 1.12W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
ACU1#,MCU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
ACU1#,MCU1# 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83119-24070 |
ACU1#,MCU1# 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MCU1#,SXU1# |
1 | ||
| 83101-14040 |
ACU1#,MCU1# |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MCU1#,SXU1# |
1 | ||
| 83101-14040 |
ACU1#,MCU1# |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MCU1#,SXU1# |
1 | ||
| 83101-14040 |
ACU1#,MCU1# |
1 | ||
