MCU10W-AWPGK (1997)

Toyota Harrier

Production Dec 1997 - Feb 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )

Click highlighted areas on diagram

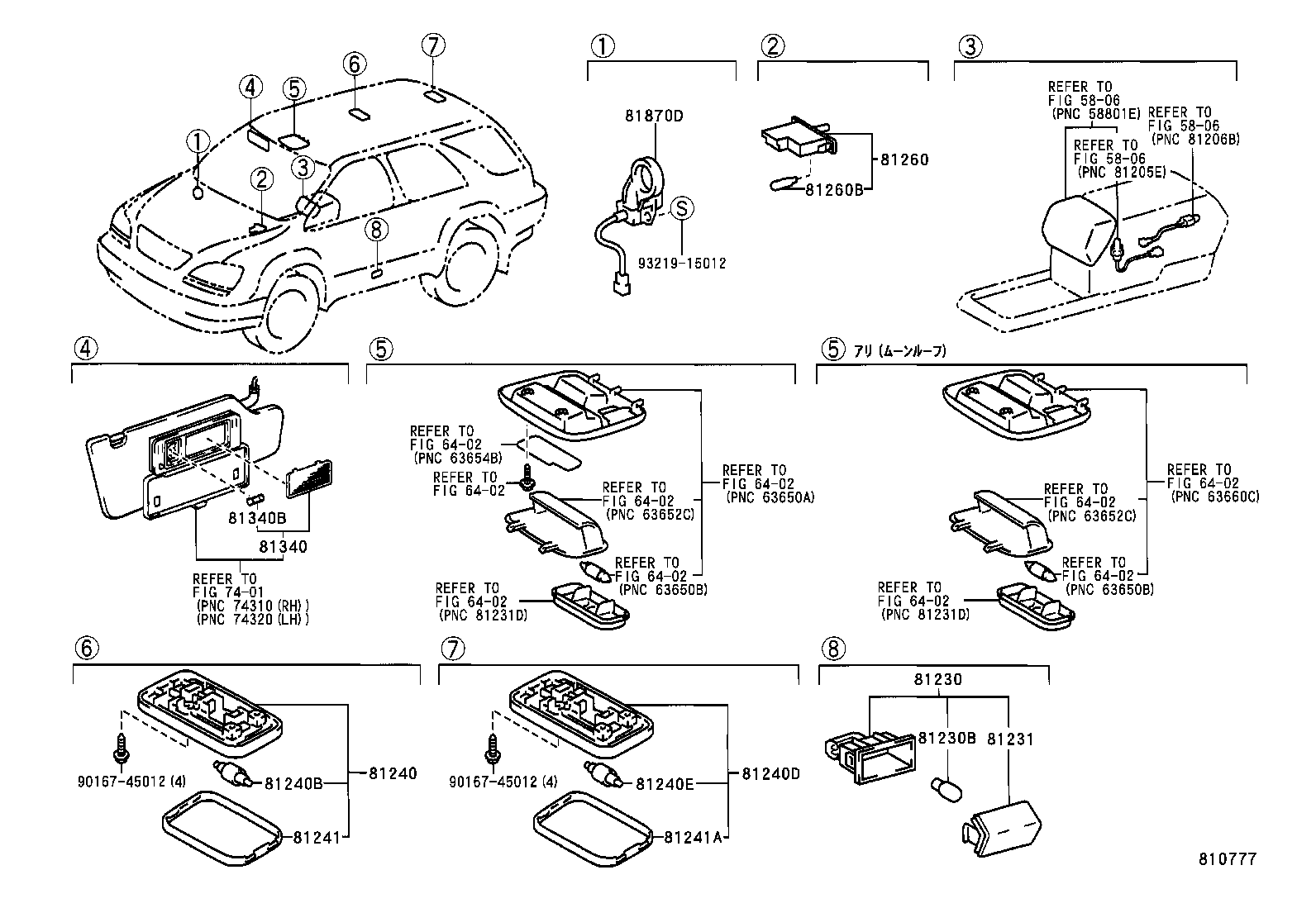

diagram 5806 5806 5806 6402 6402 6402 6402 6402 6402 6402 6402 6402 6402 7401 81230 81230B 81231 81240 81240B 81240D 81240E 81241 81241A 81260 81260B 81340 81340B 81870D 9016745012 9016745012 9321915012
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-48010

ACU1#,MCU1#,SXU1#

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ACU1#,MCU1#,SXU1#

12V 5W

 2
81231 - LENS, COURTESY LAMP
81231-50050

ACU1#,MCU1#,SXU1#

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-22120A1

ACU1#,MCU1#,SXU1#

IVORY,TRIM0#

 1
81240-22120B2

ACU1#,MCU1#

LT.GRAY,TRIM2#

 1
81240-22120B0

MCU1#,SXU1#

MD.GRAY,TRIM1#

 1
81240-22120B1

MCU1#,SXU1#

BLUE GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14004

ACU1#,MCU1#,SXU1#

12V 8W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-22120C0

ACU1#,MCU1#

BLACK,TRIM2#

 1
81240-22120B0

MCU1#,SXU1#

MD.GRAY,TRIM1#

 1
81240-22120A1

ACU1#,MCU1#,SXU1#

IVORY,TRIM0#

 1
81240-22120B1

MCU1#,SXU1#

BLUE GRAY,TRIM1#

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14004

ACU1#,MCU1#,SXU1#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-32031

ACU1#,MCU1#,SXU1#

 1
81241A - LENS, ROOM LAMP, NO.2
81241-32031

ACU1#,MCU1#,SXU1#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22160

ACU1#,MCU1#,SXU1#

 1
81260-33030

ACU1#,MCU1#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ACU1#,MCU1#,SXU1#

12V 1.2W ｿｹｯﾄ無し

 1
81340 - LAMP ASSY, VANITY
81340-33090B4

MCU1#,SXU1#

MD.GRAY,TRIM1#,右側

 1
81350-33040B4

MCU1#,SXU1#

MD.GRAY,TRIM1#,左側

 1
81350-33040B1

MCU1#,SXU1#

BLUE GRAY,TRIM1#,左側

 1
81340-33090B1

MCU1#,SXU1#

BLUE GRAY,TRIM1#,右側

 1
81340-33090A1

ACU1#,MCU1#,SXU1#

IVORY,TRIM0#,右側

 1
81340-33090B0

ACU1#,MCU1#

LT.GRAY,TRIM2#,右側

 1
81350-33040B0

ACU1#,MCU1#

LT.GRAY,TRIM2#,左側

 1
81350-33040A1

ACU1#,MCU1#,SXU1#

IVORY,TRIM0#,左側

 1
81340B - BULB (FOR VANITY LAMP)
90981-14003

ACU1#,MCU1#,SXU1#

12V 1.5W

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-48020

ACU1#,MCU1#,SXU1#

 1
Common parts
90167-45012
93219-15012
