GSU36W-AWAGK (2006)

Toyota Harrier

Production Jan 2006 - Dec 2008
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )GSU3#

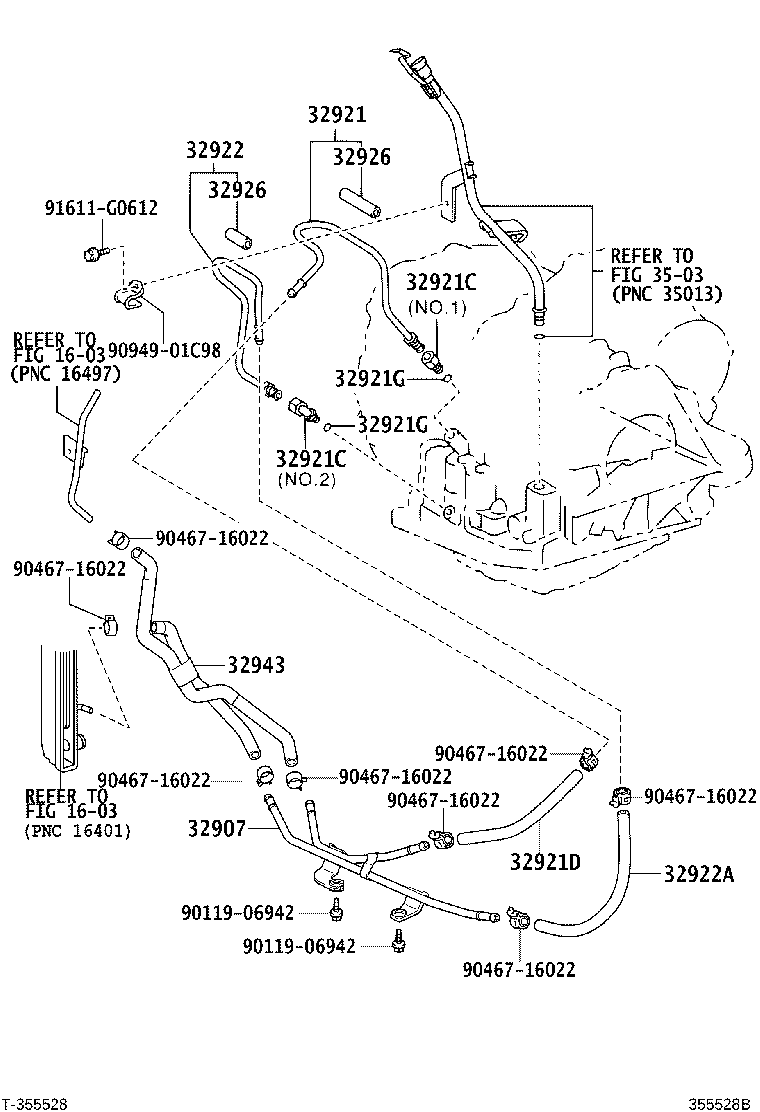

Click highlighted areas on diagram

U151E,U151F

diagram 1603 1603 32907 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32926 32926 32943 3503 9011906942 9011906942 9046716022 9046716022 9046716022 9046716022 9046716022 9046716022 9046716022 9046716022 9094901C98 91611G0612
Part # Description Qty Price
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-48040

GSU3#

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-48140

GSU3#

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

ACU3#,GSU3#

NO.2

 1
90404-16031

ACU3#,GSU3#

NO.1

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

ACU3#,GSU3#

NO.2

 1
90404-16031

ACU3#,GSU3#

NO.1

 1
32921D - HOSE(FOR OIL COOLER INLET)
32943-48080

GSU3#

 1
32943-48081

GSU3#

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ACU3#,GSU3#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ACU3#,GSU3#

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-48120

GSU3#

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17088

GSU3#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-26010

GSU3#

長さ=60,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-26010

GSU3#

長さ=60,内径=10

 2
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32930-48010

GSU3#

 1
Common parts
90119-06942
90467-16022
90949-01C98
91611-G0612
Linked diagrams
1603
3503
