GSU30W-AWAGK (2006)

Toyota Harrier

Production Jan 2006 - Dec 2008
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )GSU3#

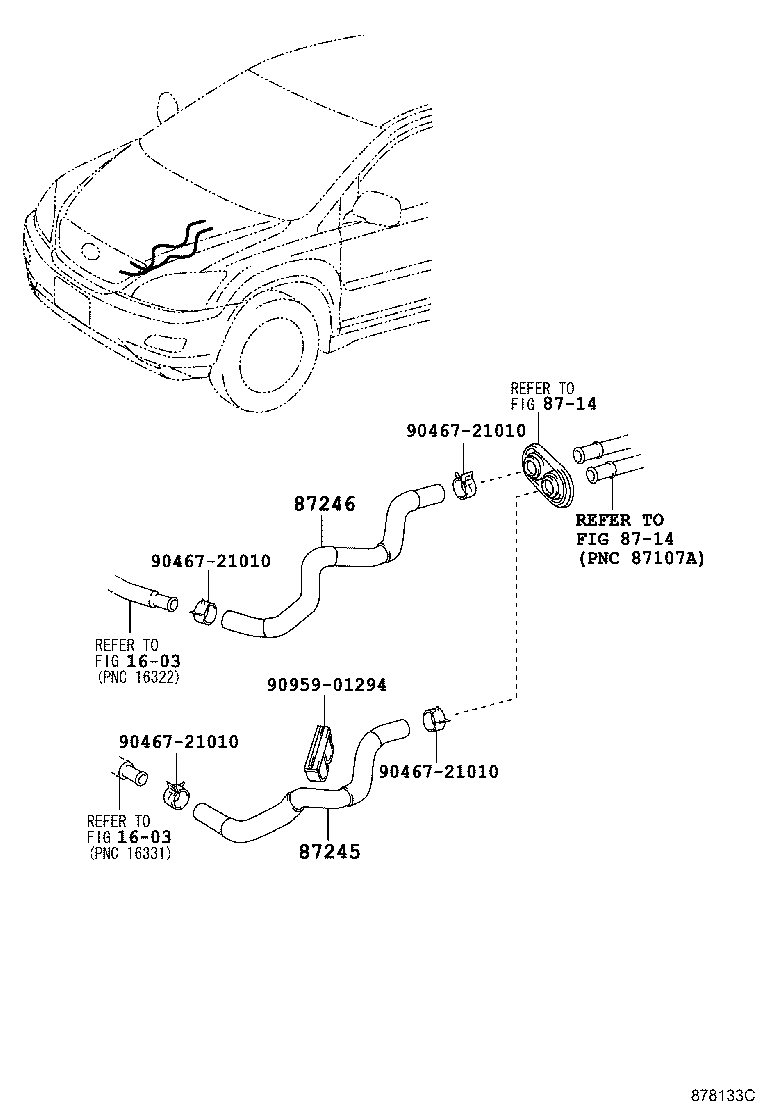

Click highlighted areas on diagram

diagram 1603 1603 8714 8714 87245 87246 9046721010 9046721010 9046721010 9046721010 9095901294
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-48A60

GSU3#

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-48A70

GSU3#

 1
Common parts
90467-21010
90959-01294
Linked diagrams
1603
8714
