AXUH80-ANXSB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

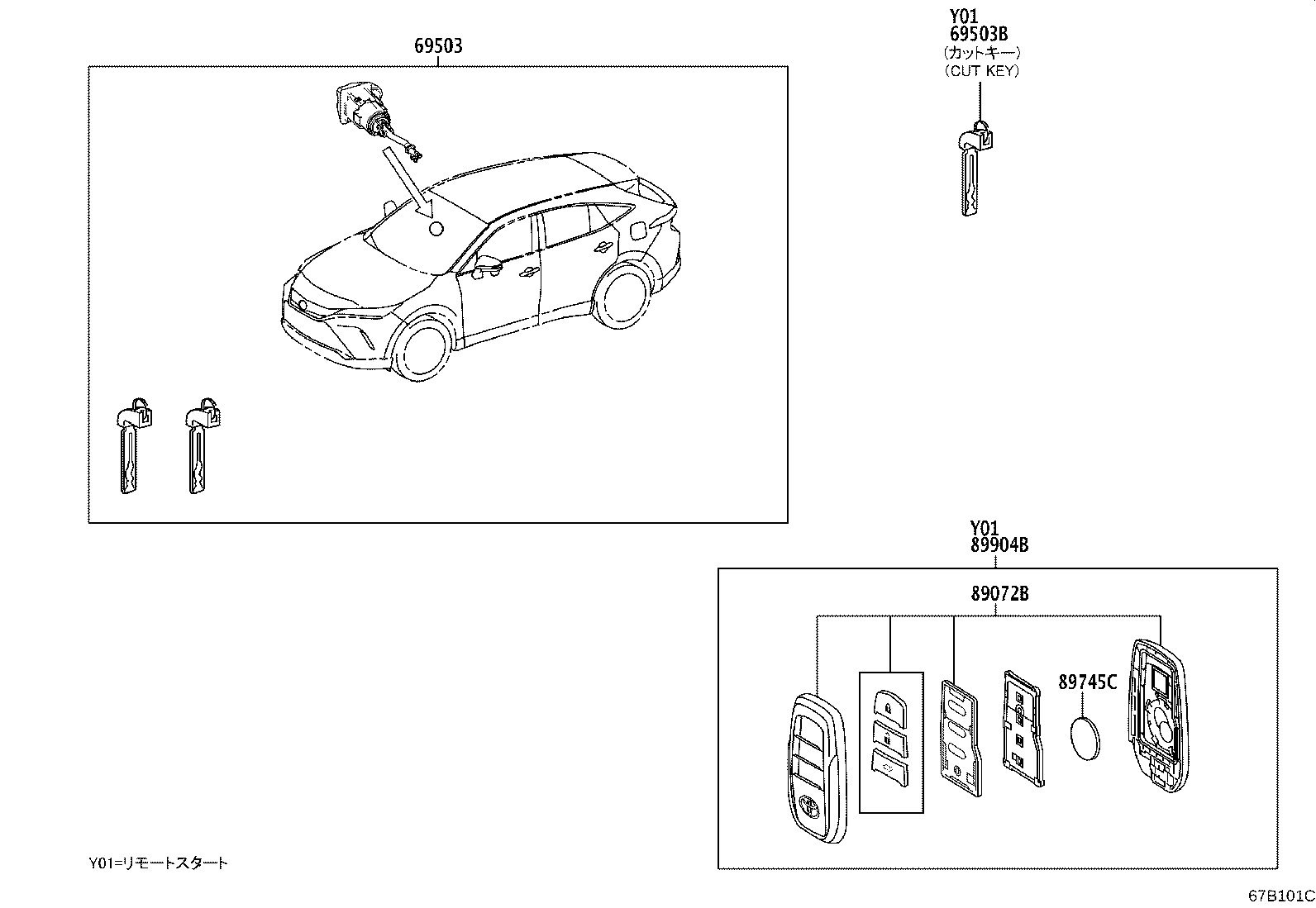

Click highlighted areas on diagram

diagram 69503 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-48610

AXUH8#,MXUA8#

 1
69503B - KEY, CUT
69515-K0010

AXUH8#,MXUA8#

ﾏｽﾀｰｷｰ

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-48E90

AXUH8#..G,Z

 2
89072-48E70

AXUH8#..S

 2
89745C - BATTERY, TRANSMITTER
89745-K0010

AXUH8#,MXUA8#

CR2450

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-48020

AXUH8#..S

 1
8990H-48040

AXUH8#..G,Z

 1
