AXUH80-ANXGB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )AXUH8#

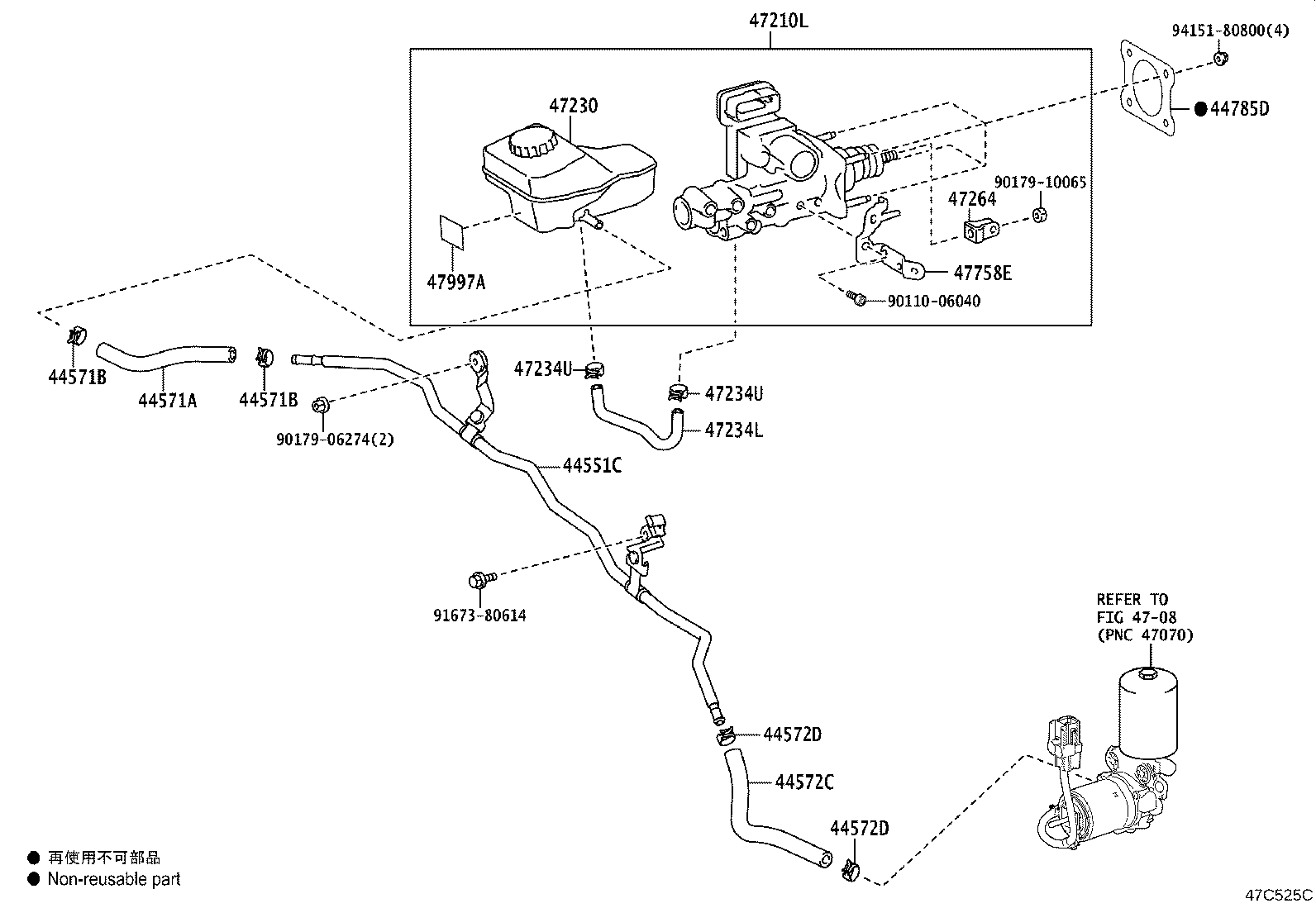

Click highlighted areas on diagram

diagram 44551C 44571A 44571B 44571B 44572C 44572D 44572D 44785D 4708 47210L 47230 47234L 47234U 47234U 47264 47758E 47997A 9011006040 9017906274 9017910065 9167380614 9415180800
Part # Description Qty Price
44551C - TUBE, BRAKE ACTUATOR, NO.1
44551-48100

AXUH8#

 1
44571A - HOSE, BRAKE ACTUATOR, NO.1
44571-42050

AXUH8#

 1
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96137-41501

AXUH8#

 2
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96137-41501

AXUH8#

 2
44572C - HOSE, BRAKE ACTUATOR, NO.2
44572-42030

AXUH8#

 1
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501

AXUH8#

 2
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501

AXUH8#

 2
44785D - GASKET, BRAKE MASTER CYLINDER
44785-12040

AXUH8#

 1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-48110

AXUH8#

*614

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-47090

AXUH8#,MXUA8#

 1
47234L - HOSE, RESERVOIR, NO.1
47234-42050

AXUH8#

 1
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-41501

AXUH8#

 2
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-41501

AXUH8#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-12060

AXUH8#

 1
47758E - BRACKET, WIRE CLAMP, NO.1
47758-42020

AXUH8#

 1
47997A - LABEL, ACCUMULATOR CAUTION, NO.1
47997-76010

AXUH8#

 1
Common parts
90110-06040
90179-06274
90179-10065
91673-80614
94151-80800
Linked diagrams
4708
