ACU35W-AWPGK (2003)

Toyota Harrier

Production Feb 2003 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )ACU3#

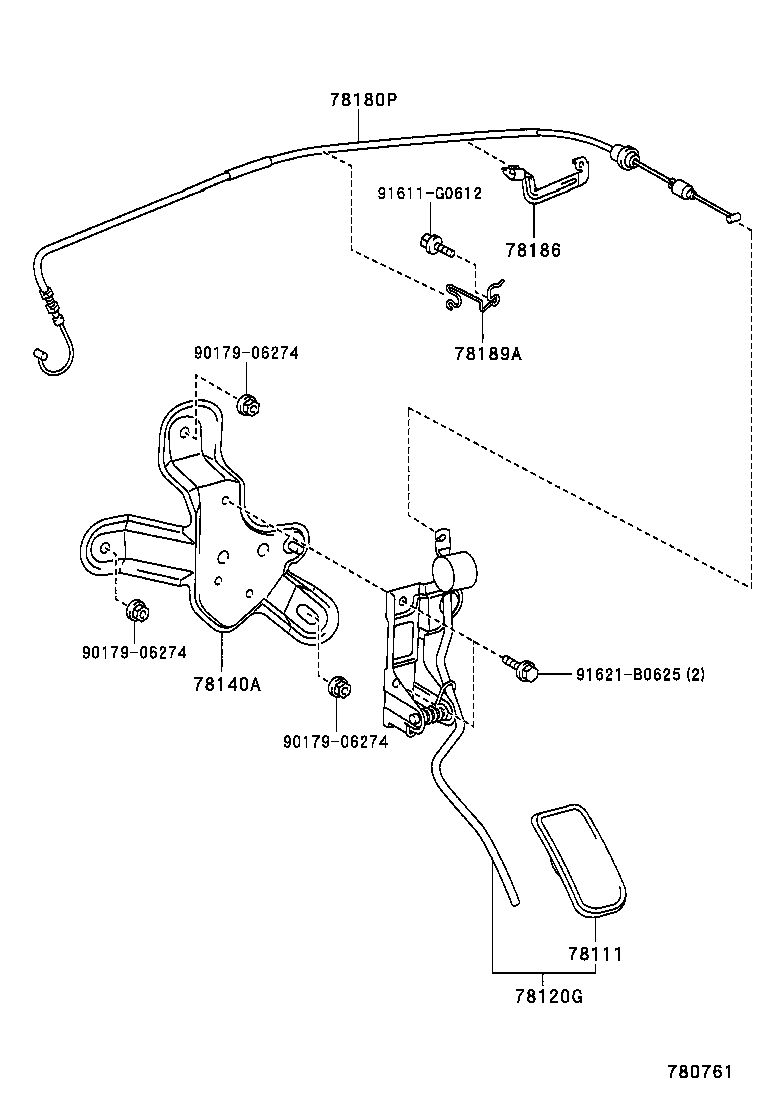

Click highlighted areas on diagram

diagram 78111 78120G 78140A 78180P 78186 78189A 9017906274 9017906274 9017906274 91611G0612 91621B0625
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-33020

ACU3#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-48080

ACU3#

 1
78140A - BRACKET, ACCELERATOR CONTROL ROD
78140-48010

ACU3#,MCU3#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-48090

ACU3#

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-48020

ACU3#

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-48080

ACU3#

 1
Common parts
90179-06274
91611-G0612
91621-B0625
