ACU30W-AWPGK (2006)
Toyota Harrier

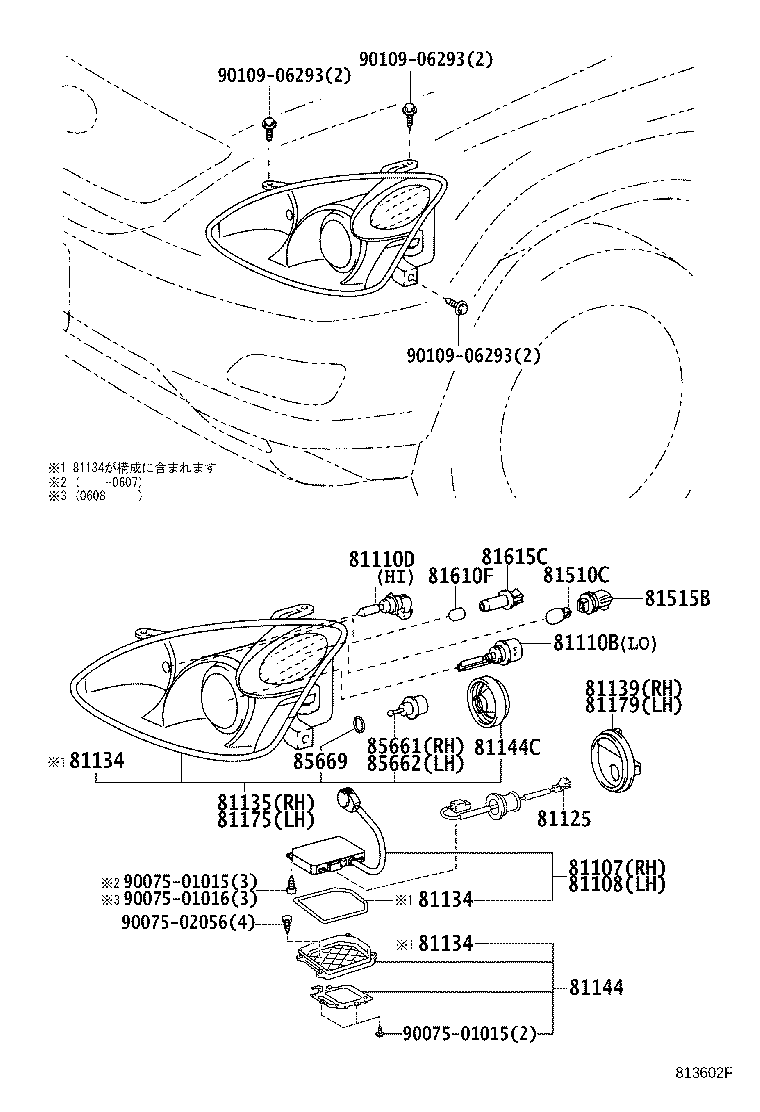

ILLUST NO. 1 OF 2(0601- )
ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48190 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81107-48190 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48210 |
ACU3#,GSU30,35 |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48190 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48210 |
ACU3#,GSU30,35 |
1 | ||
| 81107-48190 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20005 |
ACU3# 85V 35W,ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90981-20005 |
ACU3# 85V 35W,Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90981-20005 |
ACU3#,GSU3# 85V 35W |
2 | ||
| 90981-13075 |
ACU3#,MCU30,35 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 |
ACU3#,MCU3# 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
ACU3#,GSU3# 12V65W(SAE),60W(ECE) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 81125-48200 |
ACU3#,MCU30,35 |
2 | ||
| 81125-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 81125-48180 |
ACU3#,GSU3# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3#,GSU3# |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3#,GSU3# |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3#,GSU3# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81145-48180 |
ACU3#,MCU30,35 Lﾊﾟｯｹｰｼﾞ,ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ&ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81145-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81145-48180 |
ACU3#,MCU30,35 Lﾊﾟｯｹｰｼﾞ,ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ&ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 81130-48220 |
ACU3#,MCU30,35 |
1 | ||
| 81145-48191 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81145-48181 |
ACU3#,GSU30,35 |
1 | ||
| 81145-48191 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81145-48192 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81145-48192 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81145-48182 |
ACU3# |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-48180 |
ACU3#,GSU3# |
1 | ||
| 81139-48180 |
ACU3#,MCU3# |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-68003 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-68003 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-68008 |
ACU3#,GSU3# 右側 |
1 | ||
| 90075-68009 |
ACU3#,GSU3# 左側 |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-65006 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-65006 |
ACU3#,GSU30,35 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-48191 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81185-48192 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81185-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81185-48180 |
ACU3#,MCU30,35 Lﾊﾟｯｹｰｼﾞ,ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ&ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 81170-48220 |
ACU3#,MCU30,35 |
1 | ||
| 81185-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81185-48182 |
ACU3# |
1 | ||
| 81185-48181 |
ACU3#,GSU30,35 |
1 | ||
| 81185-48192 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81185-48191 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-48180 |
ACU3#,GSU3# |
1 | ||
| 81179-48180 |
ACU3#,MCU3# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ACU3#,MCU3# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ACU3#,GSU3# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACU3#,MCU3# |
2 | ||
| 90075-60028 |
ACU3#,GSU3# |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ACU3#,MCU3# 12V 5W |
2 | ||
| 99132-12050 |
ACU3#,GSU3# 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60077 |
ACU3#,GSU3# |
2 | ||
| 90075-60046 |
ACU3#,GSU3# |
2 | ||
| 90075-60046 |
ACU3#,MCU3# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-50040 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-48030 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 85661-50040 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-48030 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-50040 |
ACU3#,GSU30,35 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-50040 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-50040 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-48030 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 85661-48030 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-50040 |
ACU3#,GSU30,35 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-99120 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-99120 |
ACU3#,GSU3# |
2 | ||
| Common parts | ||||
| 90075-01015 | ||||
| 90075-01016 | ||||
| 90075-02056 | ||||
| 90109-06293 | ||||

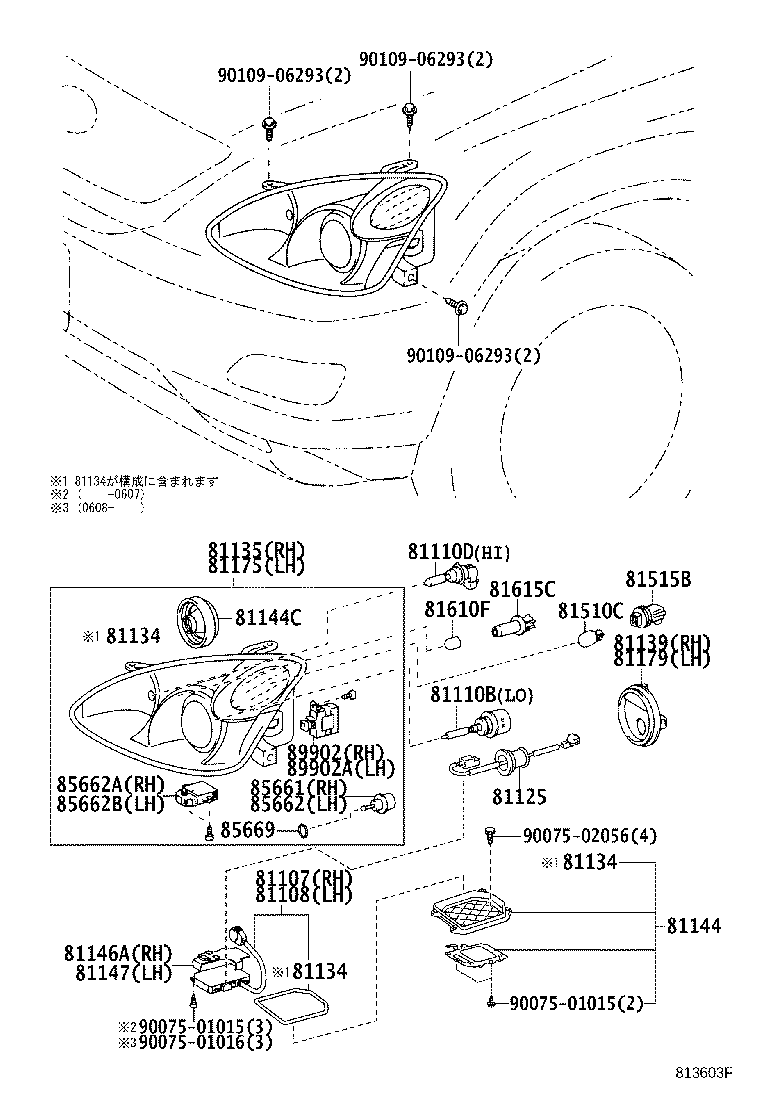

ILLUST NO. 1 OF 2(0601- )
ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ & ｱﾘ(AFS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48190 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81107-48190 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48210 |
ACU3#,GSU30,35 |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48190 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81107-48210 |
ACU3#,GSU30,35 |
1 | ||
| 81107-48190 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-20005 |
ACU3# 85V 35W,ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90981-20005 |
ACU3# 85V 35W,Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90981-20005 |
ACU3#,GSU3# 85V 35W |
2 | ||
| 90981-13075 |
ACU3#,MCU30,35 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 |
ACU3#,MCU3# 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
ACU3#,GSU3# 12V65W(SAE),60W(ECE) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 81125-48200 |
ACU3#,MCU30,35 |
2 | ||
| 81125-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 81125-48180 |
ACU3#,GSU3# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3#,GSU3# |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3#,GSU3# |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68005 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 90075-68005 |
ACU3#,GSU3# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81145-48180 |
ACU3#,MCU30,35 Lﾊﾟｯｹｰｼﾞ,ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ&ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81145-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81145-48180 |
ACU3#,MCU30,35 Lﾊﾟｯｹｰｼﾞ,ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ&ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 81130-48220 |
ACU3#,MCU30,35 |
1 | ||
| 81145-48191 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81145-48181 |
ACU3#,GSU30,35 |
1 | ||
| 81145-48191 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81145-48192 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81145-48192 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81145-48182 |
ACU3# |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-48180 |
ACU3#,GSU3# |
1 | ||
| 81139-48180 |
ACU3#,MCU3# |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-68003 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-68003 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-68008 |
ACU3#,GSU3# 右側 |
1 | ||
| 90075-68009 |
ACU3#,GSU3# 左側 |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-65006 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-65006 |
ACU3#,GSU30,35 |
2 | ||
| 81146A - FITTING, HEADLAMP, RH | ||||
| 81146-48261 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81146-48261 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81147 - FITTING, HEADLAMP, LH | ||||
| 81146-48261 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81146-48261 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-48191 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81185-48180 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81185-48180 |
ACU3#,MCU30,35 Lﾊﾟｯｹｰｼﾞ,ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ&ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T) |
1 | ||
| 81170-48220 |
ACU3#,MCU30,35 |
1 | ||
| 81185-48180 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81185-48182 |
ACU3# |
1 | ||
| 81185-48181 |
ACU3#,GSU30,35 |
1 | ||
| 81185-48192 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81185-48192 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 81185-48191 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-48180 |
ACU3#,GSU3# |
1 | ||
| 81179-48180 |
ACU3#,MCU3# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ACU3#,MCU3# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ACU3#,GSU3# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACU3#,MCU3# |
2 | ||
| 90075-60028 |
ACU3#,GSU3# |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ACU3#,MCU3# 12V 5W |
2 | ||
| 99132-12050 |
ACU3#,GSU3# 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60077 |
ACU3#,GSU3# |
2 | ||
| 90075-60046 |
ACU3#,GSU3# |
2 | ||
| 90075-60046 |
ACU3#,MCU3# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-50040 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-48030 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 85661-50040 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-48030 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-50040 |
ACU3#,GSU30,35 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-50040 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-50040 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-48030 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 85661-48030 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85661-50040 |
ACU3#,GSU30,35 |
1 | ||
| 85662A - MOTOR, LIGHT REFLECTOR, RH | ||||
| 85662-48010 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 85662-48010 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85662B - MOTER, LIGHT REFLECTOR, LH | ||||
| 85662-48010 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 85662-48010 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-99120 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
2 | ||
| 90075-99120 |
ACU3#,GSU3# |
2 | ||
| 89902 - COMPUTER SUB-ASSY, HEADLAMP SWIVEL, RH | ||||
| 89902-48020 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 89902-48020 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 89902A - COMPUTER SUB-ASSY, HEADLAMP SWIVEL, LH | ||||
| 89902-48010 |
ACU3# ﾌﾟﾚﾐｱﾑ Lﾊﾟｯｹｰｼﾞ *(B) |
1 | ||
| 89902-48010 |
ACU3# Lﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90075-01015 | ||||
| 90075-01016 | ||||
| 90075-02056 | ||||
| 90109-06293 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
