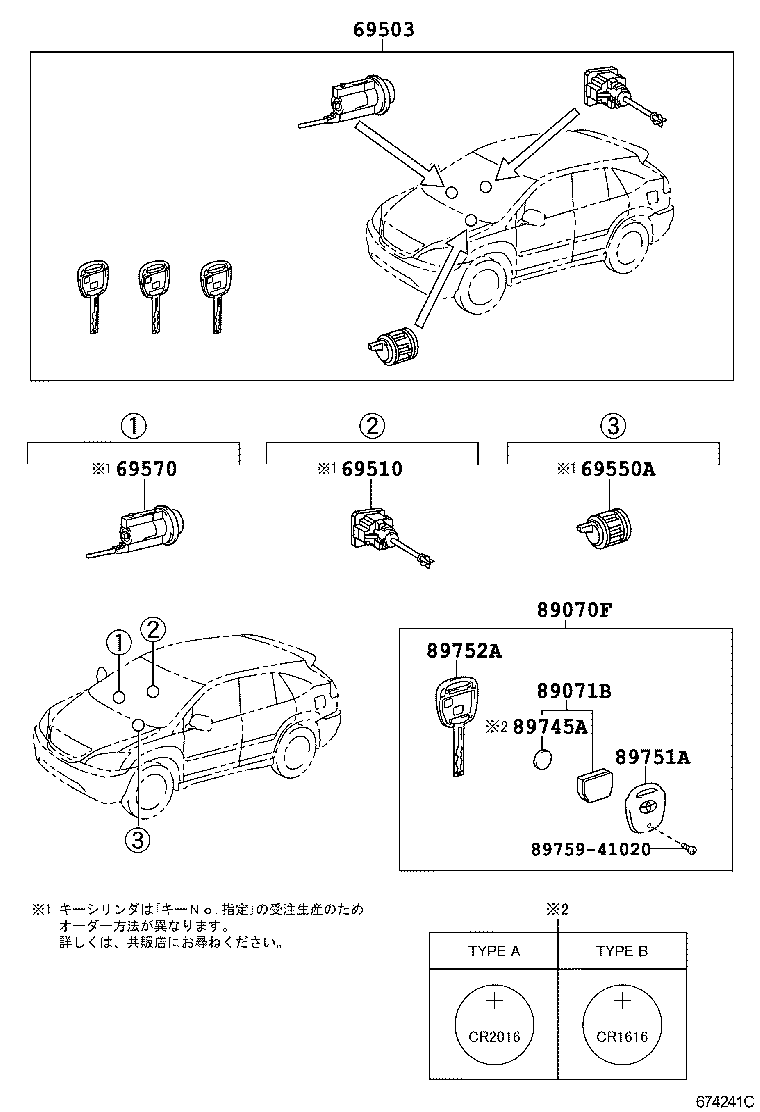

ACU30W-AWPGK (2006)
Toyota Harrier
(0601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-48100 |
ACU3#,MCU30,35 |
1 | ||
| 69005-48261 |
ACU3# |
1 | ||
| 69005-48271 |
ACU3# ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 69005-48110 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-48050 |
ACU3# |
1 | ||
| 69510-48050 |
ACU3#,MCU3# |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-33090 |
ACU3#,MCU3# |
1 | ||
| 69550-33090 |
ACU3# |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-60160 |
ACU3# |
1 | ||
| 69570-60160 |
ACU3#,MCU3# |
1 | ||
| 89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY) | ||||
| 89070-4D120 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| 89070-48B11 |
ACU3#,GSU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ｻﾌﾞｷｰ(ﾌﾟﾛﾃｸﾀ=ｸﾞﾚｰ) |
1 | ||
| 89070-48B01 |
ACU3#,GSU30,35 ｻﾌﾞｷｰ(ﾌﾟﾛﾃｸﾀ=ｸﾞﾚｰ) |
1 | ||
| 89070-4D110 |
ACU3#,MCU30,35 ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| 89070-4D111 |
ACU3#,GSU30,35 ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| 89070-48B12 |
ACU3# ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ｻﾌﾞｷｰ(ﾌﾟﾛﾃｸﾀ=ｸﾞﾚｰ) |
1 | ||
| 89070-4D112 |
ACU3# ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| 89070-48B02 |
ACU3# ｻﾌﾞｷｰ(ﾌﾟﾛﾃｸﾀ=ｸﾞﾚｰ) |
1 | ||
| 89070-4D121 |
ACU3#,GSU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| 89070-4D122 |
ACU3# ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-48140 |
ACU3#,MCU30,35 |
1 | ||
| 89071-48150 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
1 | ||
| 89071-48411 |
ACU3# ｻﾌﾞｷｰ |
1 | ||
| 89071-48140 |
ACU3#,GSU30,35 ﾏｽﾀｰｷｰ |
1 | ||
| 89071-48410 |
ACU3#,GSU30,35 ｻﾌﾞｷｰ |
1 | ||
| 89071-48421 |
ACU3# ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ｻﾌﾞｷｰ |
1 | ||
| 89071-48150 |
ACU3#,GSU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ﾏｽﾀｰｷｰ |
1 | ||
| 89071-48141 |
ACU3# ﾏｽﾀｰｷｰ |
1 | ||
| 89071-48151 |
ACU3# ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ﾏｽﾀｰｷｰ |
1 | ||
| 89071-48420 |
ACU3#,GSU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ｻﾌﾞｷｰ |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
ACU3# ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り |
3 | ||
| 89745-48030 |
ACU3#,GSU3# TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 89745-40010 |
ACU3# TYPE B:ｲﾗｽﾄ参照 |
3 | ||
| 89745-48030 |
ACU3#,MCU3# |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-50010 |
ACU3#,MCU3# |
1 | ||
| 89751-50011 |
ACU3#,GSU3# ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
2 | ||
| 89751-48121 |
ACU3#,GSU3# ｻﾌﾞｷｰ(ﾌﾟﾛﾃｸﾀ=ｸﾞﾚｰ) |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-48070 |
ACU3#,MCU30,35 ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| 89752-48100 |
ACU3#,GSU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ｻﾌﾞｷｰ(ﾌﾟﾛﾃｸﾀ=ｸﾞﾚｰ) |
1 | ||
| 89752-48060 |
ACU3#,MCU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| 89752-48070 |
ACU3#,GSU30,35 ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| 89752-48090 |
ACU3#,GSU30,35 ｻﾌﾞｷｰ(ﾌﾟﾛﾃｸﾀ=ｸﾞﾚｰ) |
1 | ||
| 89752-48060 |
ACU3#,GSU30,35 ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ−有り,ﾏｽﾀｰｷｰ(ﾌﾟﾛﾃｸﾀ=ﾌﾞﾗｯｸ) |
1 | ||
| Common parts | ||||
| 89759-41020 | ||||
