ACU30W-AWPGK (2003)

Toyota Harrier

Production Feb 2003 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0302-0601)

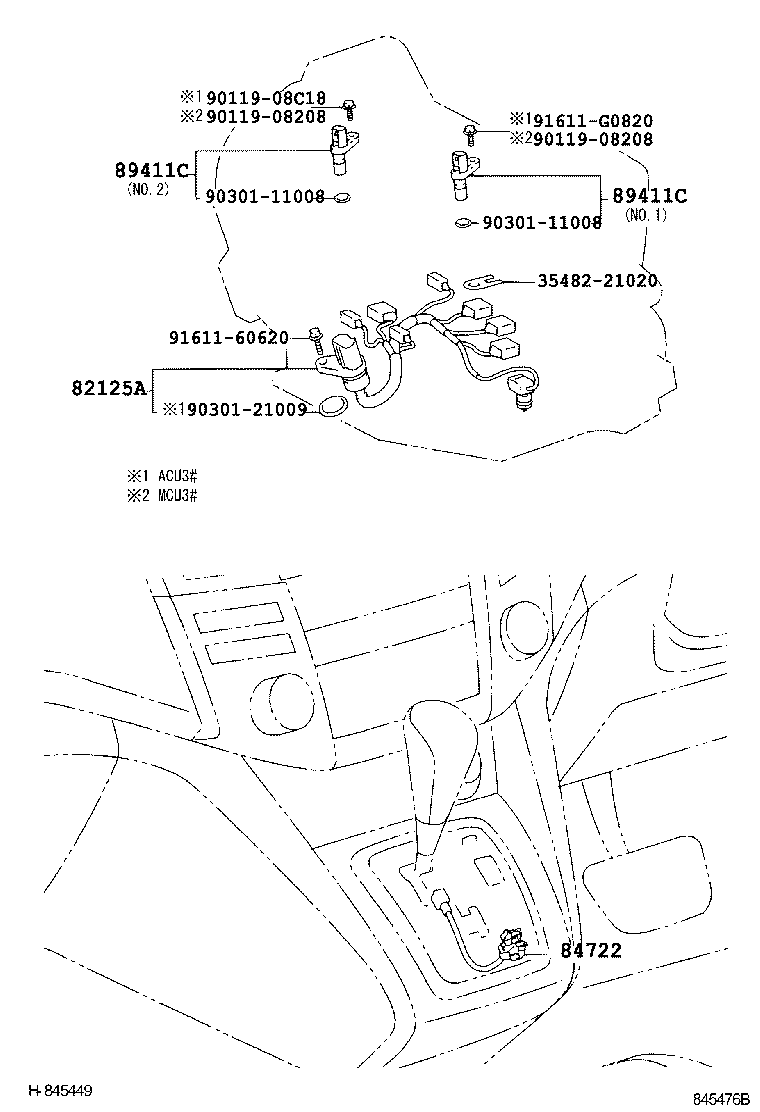

Click highlighted areas on diagram

diagram 3548221020 82125A 84722 89411C 89411C 9011908208 9011908208 9011908C18 9030111008 9030111008 9030121009 9161160620 91611G0820
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-28180

ACU3#

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-48051

ACU3#,MCU3#

 1
89411C - SENSOR, SPEED
89413-24010

ACU3#

NO.1 & NO.2 AISIN

 2
89413-24010

ACU3#

NO.1 & NO.2

 2
89411-33010

ACU3#

NO.1 & NO.2 TOYOTA

 2
89411C - SENSOR, SPEED
89413-24010

ACU3#

NO.1 & NO.2 AISIN

 2
89413-24010

ACU3#

NO.1 & NO.2

 2
89411-33010

ACU3#

NO.1 & NO.2 TOYOTA

 2
Common parts
35482-21020
90119-08208
90119-08C18
90301-11008
90301-21009
91611-60620
91611-G0820
