ACU30W-AWPGK (2003)
Toyota Harrier
Production
Feb 2003
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0302- )

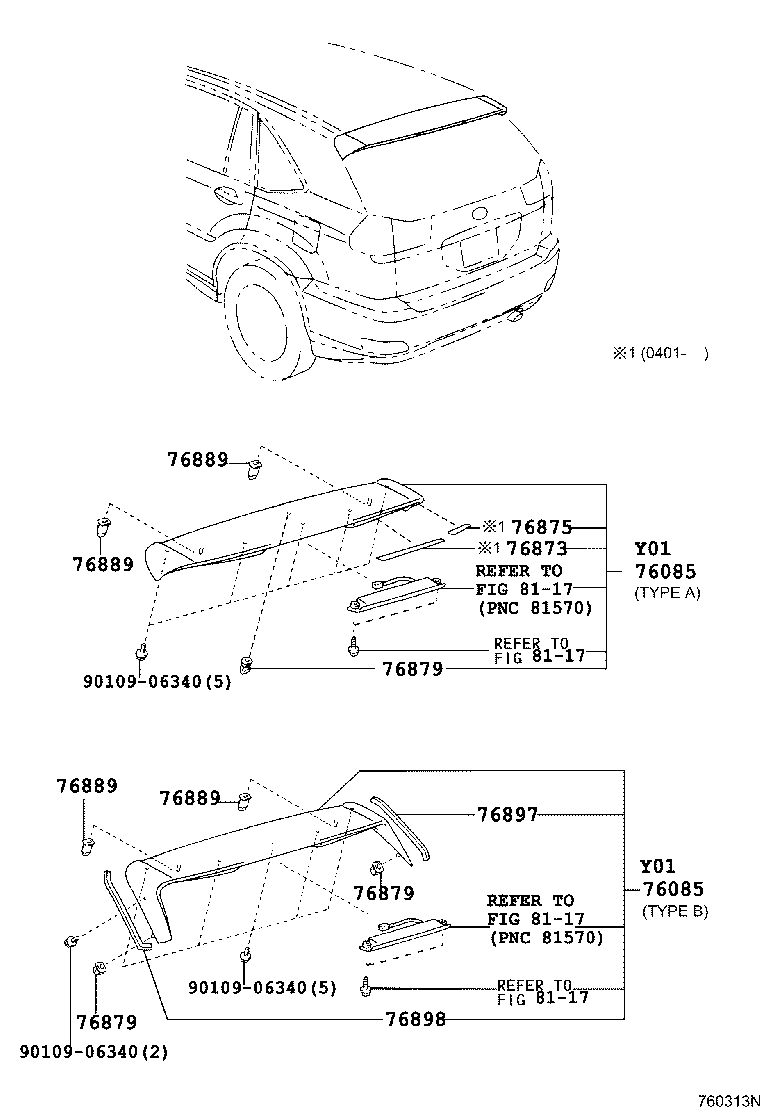

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-48040 |
ACU3#,MCU30,35 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 76085-48041 |
ACU3#,MCU30,35 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-48040 |
ACU3#,MCU30,35 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 76085-48041 |
ACU3#,MCU30,35 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48010 |
ACU3#,MCU30,35 |
2 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-48010 |
ACU3#,MCU30,35 |
2 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-48020 |
ACU3#,MCU30,35 |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-48020 |
ACU3#,MCU30,35 |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-48020 |
ACU3#,MCU30,35 |
1 | ||
| 76889 - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
ACU3#,MCU3# |
2 | ||
| 76889 - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
ACU3#,MCU3# |
2 | ||
| 76889 - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
ACU3#,MCU3# |
2 | ||
| 76889 - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
ACU3#,MCU3# |
2 | ||
| Common parts | ||||
| 90109-06340 | ||||
| Linked diagrams | ||||
| 8117 | ||||
