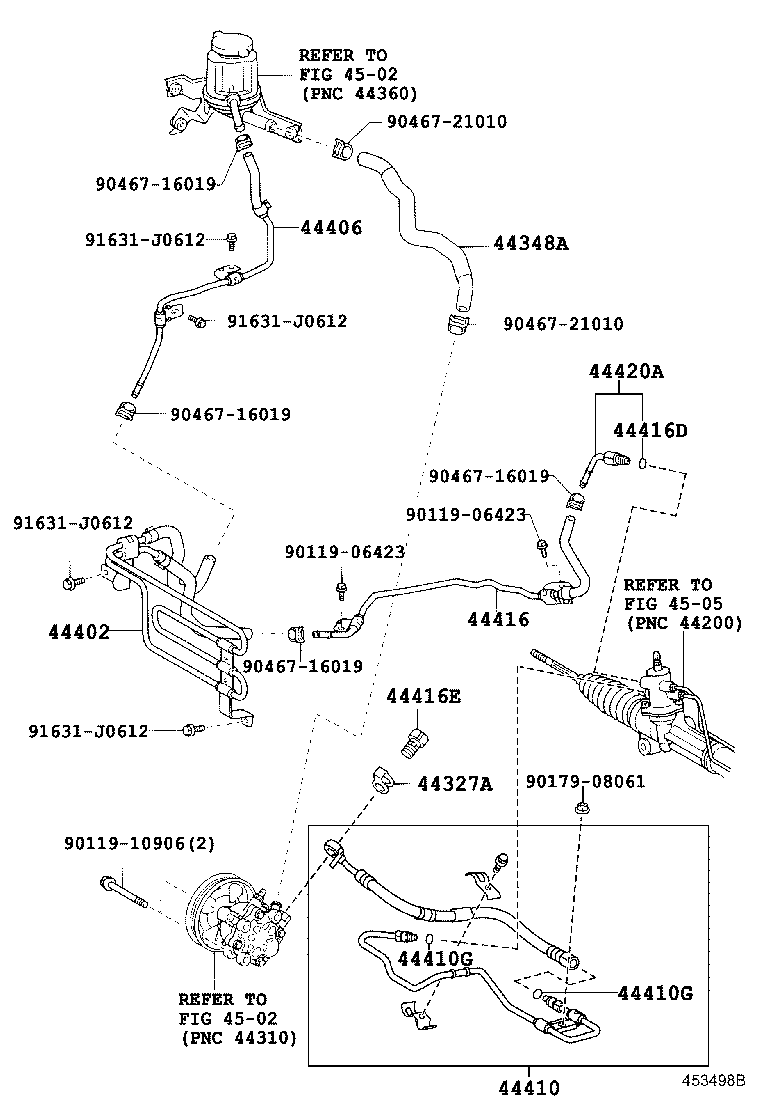

Toyota Harrier ACU30 POWER STEERING TUBE

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	ACU3#,MCU3#	02/2003 - 01/2006	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-48070	ACU3#	02/2003 - 01/2006	1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-48041	ACU3#,MCU3#	02/2003 - 01/2006	1
44406 - TUBE SUB-ASSY, RETURN
44406-48100	ACU3#,MCU3#	02/2003 - 01/2006	1
44410 - TUBE ASSY, PRESSURE FEED
44410-48130	ACU3#	02/2003 - 01/2006	1
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009	ACU3#,MCU3#	02/2003 - 01/2006	2
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009	ACU3#,MCU3#	02/2003 - 01/2006	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-48051	ACU3#,MCU3#	02/2003 - 01/2006	1
44416D - RING, O(FOR RETURN TUBE)
90301-07009	ACU3#,MCU3#	02/2003 - 01/2006	1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-41603	ACU3#	02/2003 - 01/2006	1
44420A - TUBE ASSY, RETURN
44420-48020	ACU3#,MCU3#	02/2003 - 01/2006	1
Common parts
90119-06423
90119-10906
90179-08061
90467-16019
90467-21010
91631-J0612
Linked diagrams
4502
4505

ACU30W-AWPGK (2003)
