ACU30W-AWPGK (2003)
Toyota Harrier

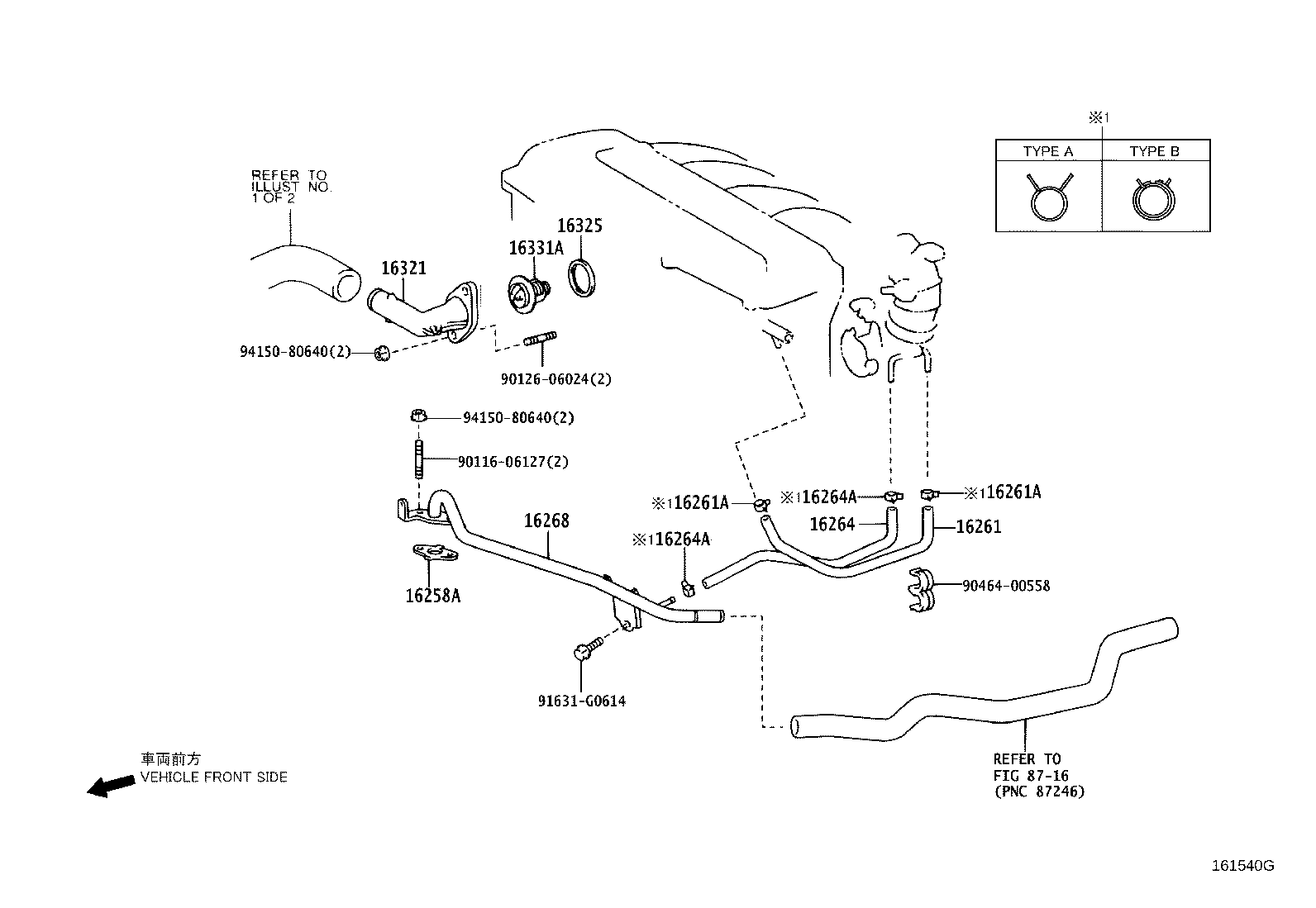

ILLUST NO. 2 OF 2(0302- )2AZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-28010 |
2AZFE..ACU3# |
1 | ||
| 16258-28030 |
2AZFE..ACU3# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-28020 |
2AZFE..ACU3# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2AZFE..ACU3# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2AZFE..ACU3# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-28020 |
2AZFE..ACU3# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
2AZFE..ACU3# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
2AZFE..ACU3# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-28010 |
2AZFE..ACU3# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-28020 |
2AZFE..ACU3# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
2AZFE..ACU3# |
1 | ||
| 16325-62010 |
2AZFE..ACU3# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
2AZFE..ACU3# *WAX 82−95 |
1 | ||
| 90916-03136 |
2AZFE..ACU3# *WAX 82−95 |
1 | ||
| 90916-03129 |
2AZFE..ACU3# *WAX 82−95 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90126-06024 | ||||
| 90464-00558 | ||||
| 91631-G0614 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 8716 | ||||

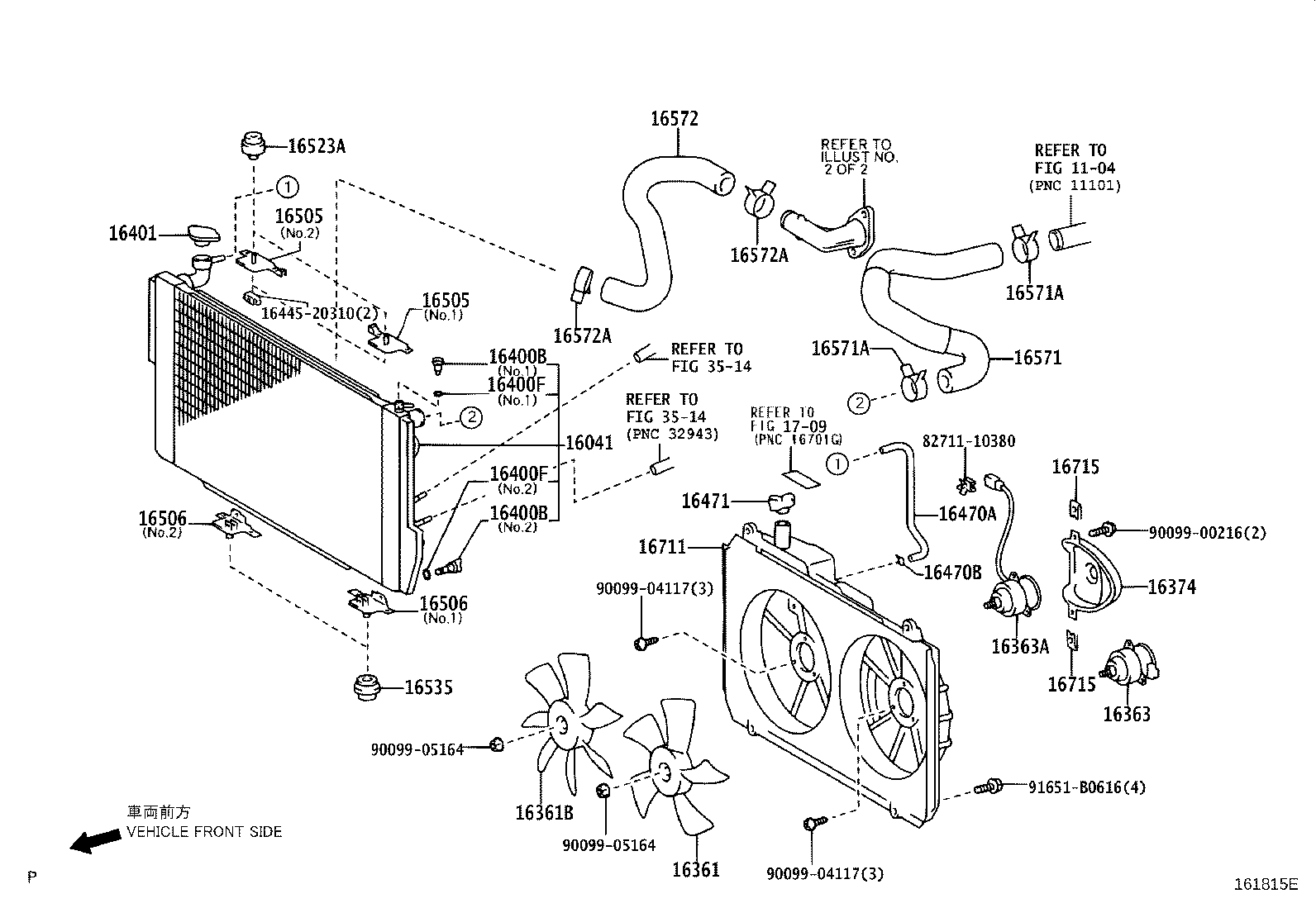

ILLUST NO. 1 OF 2(0302-0609)2AZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-28380 |
2AZFE..ACU3# |
1 | ||
| 16361 - FAN | ||||
| 16361-22030 |
2AZFE..ACU3# |
1 | ||
| 16361-28160 |
2AZFE..ACU3# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-74160 |
2AZFE..ACU3# |
1 | ||
| 16361-74161 |
2AZFE..ACU3# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-23010 |
2AZFE..ACU3# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-28140 |
2AZFE..ACU3# |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-28130 |
2AZFE..ACU3# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-20300 |
2AZFE..ACU3# NO.2 |
1 | ||
| 16417-20290 |
2AZFE..ACU3# NO.1 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-20300 |
2AZFE..ACU3# NO.2 |
1 | ||
| 16417-20290 |
2AZFE..ACU3# NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-20290 |
2AZFE..ACU3# NO.1 |
1 | ||
| 96711-19007 |
2AZFE..ACU3# NO.2 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-20290 |
2AZFE..ACU3# NO.1 |
1 | ||
| 96711-19007 |
2AZFE..ACU3# NO.2 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2AZFE..ACU3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-28210 |
2AZFE..ACU3# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2AZFE..ACU3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-20020 |
2AZFE..ACU3# |
1 | ||
| 16505 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 16505-20040 |
2AZFE..ACU3# NO.2 |
1 | ||
| 16505-20050 |
2AZFE..ACU3# NO.1 |
1 | ||
| 16505 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 16505-20040 |
2AZFE..ACU3# NO.2 |
1 | ||
| 16505-20050 |
2AZFE..ACU3# NO.1 |
1 | ||
| 16506 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 16506-20030 |
2AZFE..ACU3# NO.1 |
1 | ||
| 16506-20040 |
2AZFE..ACU3# NO.2 |
1 | ||
| 16506 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 16506-20030 |
2AZFE..ACU3# NO.1 |
1 | ||
| 16506-20040 |
2AZFE..ACU3# NO.2 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-20010 |
2AZFE..ACU3# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74210 |
2AZFE..ACU3# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-28190 |
2AZFE..ACU3# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2AZFE..ACU3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2AZFE..ACU3# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-28160 |
2AZFE..ACU3# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
2AZFE..ACU3# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
2AZFE..ACU3# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-28260 |
2AZFE..ACU3# |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 88688-18030 |
2AZFE..ACU3# |
2 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 88688-18030 |
2AZFE..ACU3# |
2 | ||
| Common parts | ||||
| 16445-20310 | ||||
| 82711-10380 | ||||
| 90099-00216 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1709 | ||||
| 3514 | ||||
