ACU15W-AWPGK (2000)

Toyota Harrier

Production Nov 2000 - Feb 2003
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )ACU1#

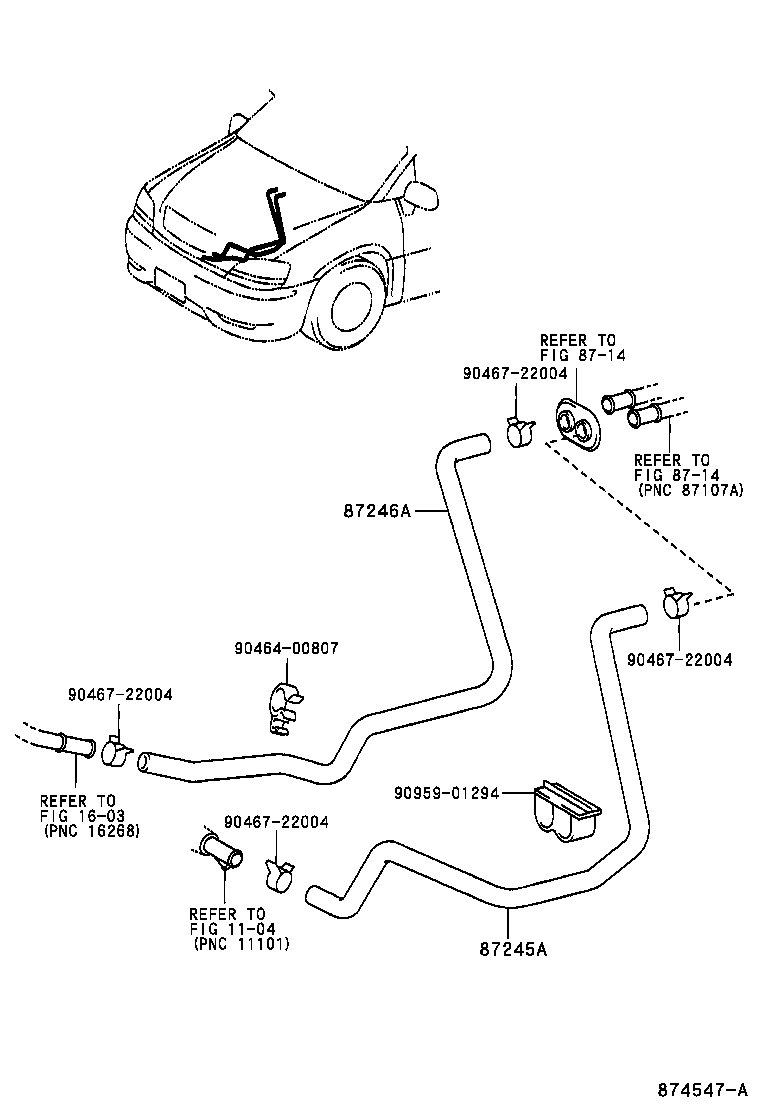

Click highlighted areas on diagram

diagram 1104 1603 8714 8714 87245A 87246A 9046400807 9046722004 9046722004 9046722004 9046722004 9095901294
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-48080

ACU1#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-48090

ACU1#

 1
Common parts
90464-00807
90467-22004
90959-01294
Linked diagrams
1104
1603
8714
