ACU15W-AWPGK (2000)
Toyota Harrier

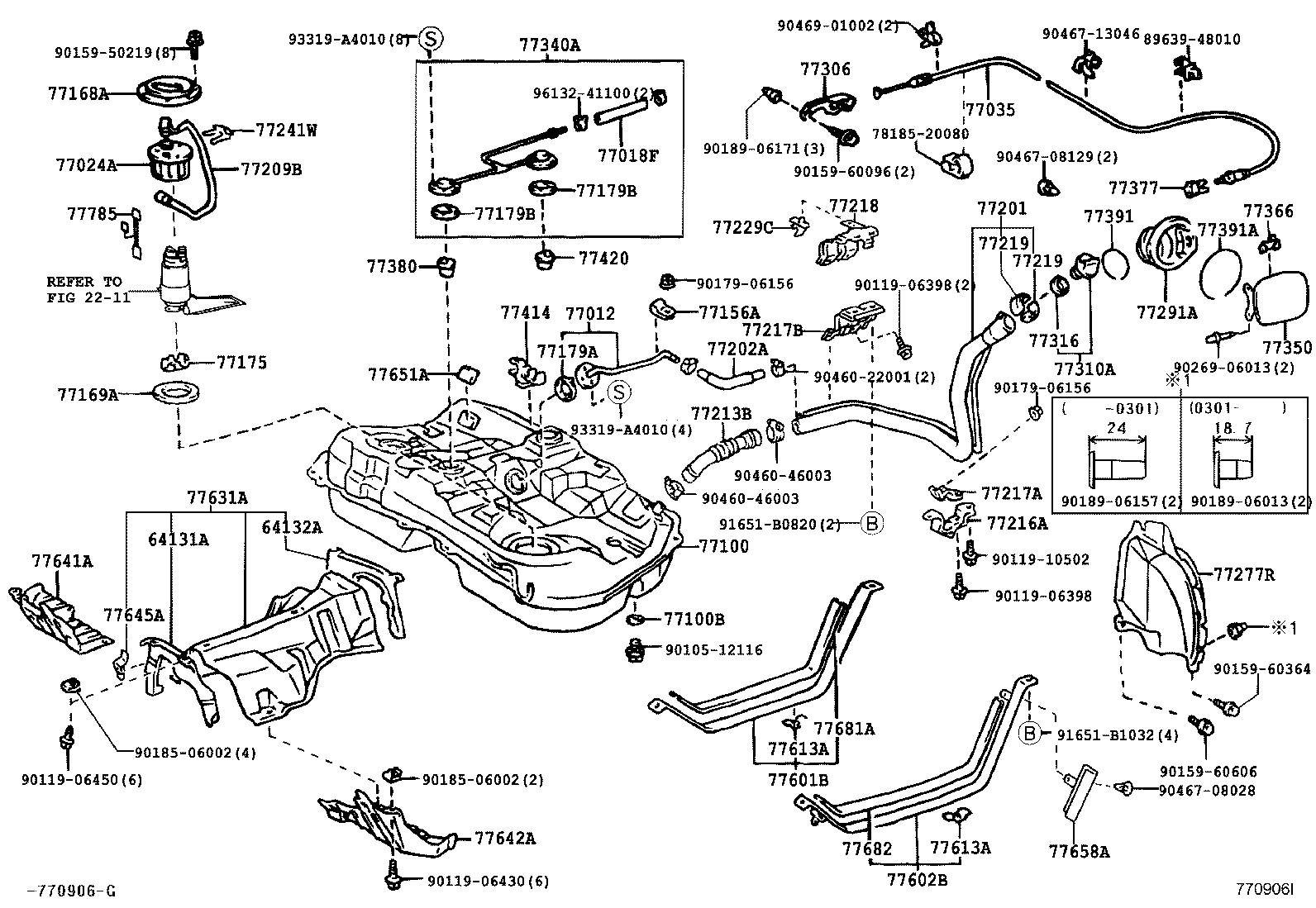

ILLUST NO. 1 OF 2(0011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64131A - BRACKET, FUEL TANK PROTECTOR, UPPER NO.1 | ||||
| 64131-48010 |
ACU1#,MCU1# |
1 | ||
| 64132A - BRACKET, FUEL TANK PROTECTOR, UPPER NO.2 | ||||
| 64132-48010 |
ACU1#,MCU1# |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-48020 |
ACU1#,MCU1#,SXU1# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77012-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77018F - HOSE, FUEL TANK EVAPORATION VENT | ||||
| 95333-06020 |
ACU1#,MCU1#,SXU1# *H,L=150 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30070 |
ACU1#,MCU1# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-48040 |
ACU1#,MCU1# |
1 | ||
| 77001-48050 |
ACU1#,MCU1# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77156A - PLATE, BREATHER TUBE SUPPORT, NO.2 | ||||
| 77156-33010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33040 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-48080 |
ACU1#,MCU1# |
1 | ||
| 77201-48090 |
ACU1#,MCU1# |
1 | ||
| 77201-48090 |
ACU1#,MCU1# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77019-33040 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-48011 |
ACU1#,MCU1# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-48040 |
ACU1#,MCU1# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77104-32010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32040 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77217B - HOSE, FUEL TANK INLET | ||||
| 77217-48030 |
ACU1#,MCU1# |
1 | ||
| 77218 - PLATE, FUEL INLET PIPE SET | ||||
| 77218-48020 |
ACU1#,MCU1# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-41010 |
ACU1#,MCU1# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
ACU1#,MCU1# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-33010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-48020 |
ACU1#,MCU1# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-48021 |
ACU1#,MCU1# |
1 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-16030 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77606-48020 |
ACU1#,MCU1# |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-48020 |
ACU1#,MCU1# |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-48020 |
ACU1#,MCU1# |
1 | ||
| 77645A - RETAINER, FUEL TANK PROTECTOR | ||||
| 77645-48010 |
ACU1#,MCU1# |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ACU1#,MCU1#,SXU1# |
6 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-48010 |
ACU1#,MCU1# |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77682-16010 |
ACU1#,MCU1# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-16010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 89639-48010 | ||||
| 90105-12116 | ||||
| 90119-06398 | ||||
| 90119-06430 | ||||
| 90119-06450 | ||||
| 90119-10502 | ||||
| 90159-50219 | ||||
| 90159-60096 | ||||
| 90159-60364 | ||||
| 90159-60606 | ||||
| 90179-06156 | ||||
| 90185-06002 | ||||
| 90189-06013 | ||||
| 90189-06157 | ||||
| 90189-06171 | ||||
| 90269-06013 | ||||
| 90460-22001 | ||||
| 90460-46003 | ||||
| 90467-08028 | ||||
| 90467-08129 | ||||
| 90467-13046 | ||||
| 90469-01002 | ||||
| 91651-B0820 | ||||
| 91651-B1032 | ||||
| 93319-A4010 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||

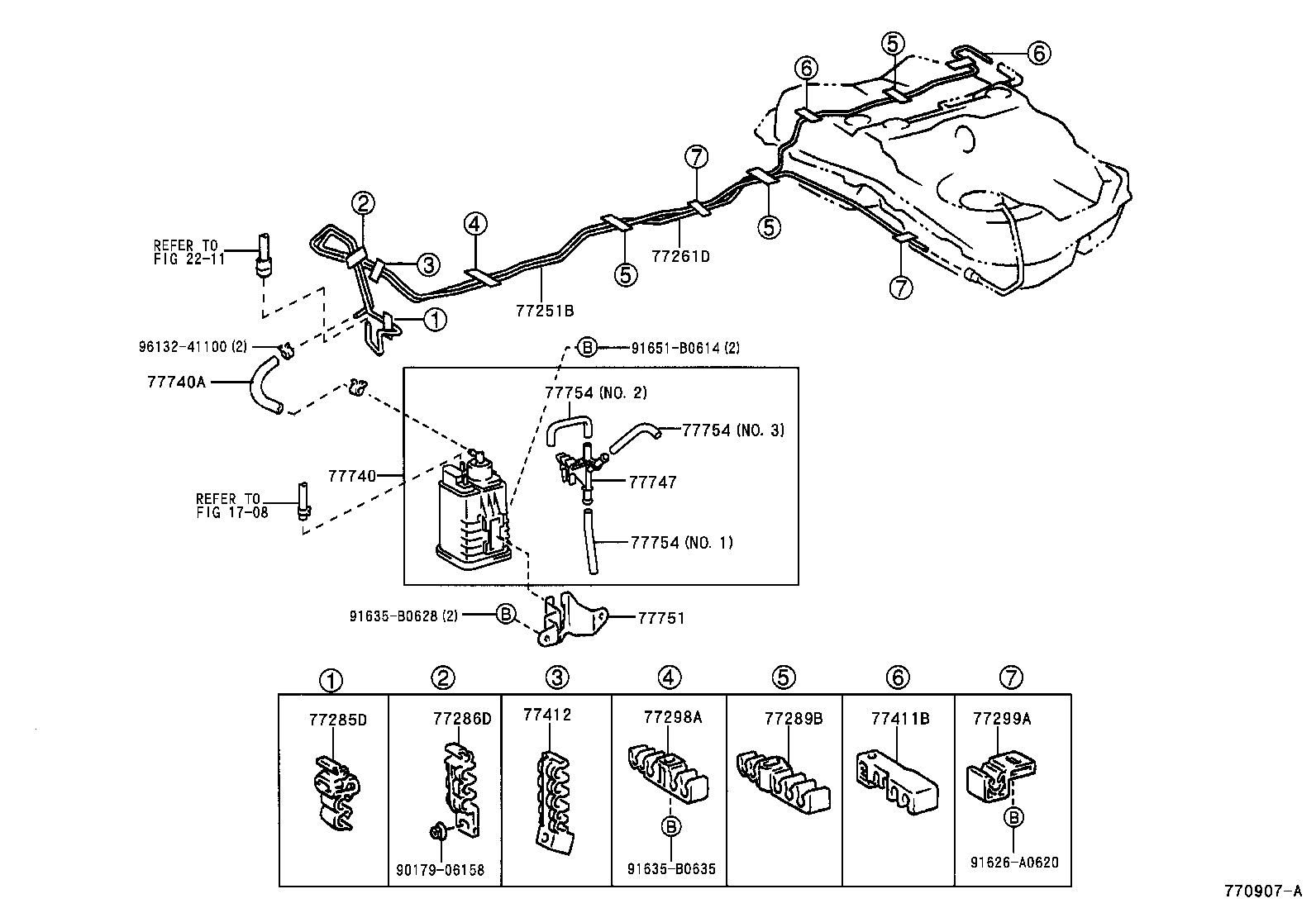

ILLUST NO. 2 OF 2(0011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48040 |
ACU1#,MCU1# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-48040 |
ACU1#,MCU1# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-48010 |
ACU1#,MCU1# |
3 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48010 |
ACU1#,MCU1# |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77730-48010 |
ACU1#,MCU1# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-06020 |
ACU1#,MCU1# *H,L=150 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-48010 |
ACU1#,MCU1# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-48030 |
ACU1#,MCU1# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-48010 |
ACU1#,MCU1# NO.1 |
1 | ||
| 77754-48030 |
ACU1#,MCU1# NO.3 |
1 | ||
| 77754-48020 |
ACU1#,MCU1# NO.2 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-48010 |
ACU1#,MCU1# NO.1 |
1 | ||
| 77754-48030 |
ACU1#,MCU1# NO.3 |
1 | ||
| 77754-48020 |
ACU1#,MCU1# NO.2 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-48010 |
ACU1#,MCU1# NO.1 |
1 | ||
| 77754-48030 |
ACU1#,MCU1# NO.3 |
1 | ||
| 77754-48020 |
ACU1#,MCU1# NO.2 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 91626-A0620 | ||||
| 91635-B0628 | ||||
| 91635-B0635 | ||||
| 91651-B0614 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
