ACU15W-AWPGK (2000)

Toyota Harrier

Production Nov 2000 - Feb 2003
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )2AZFE

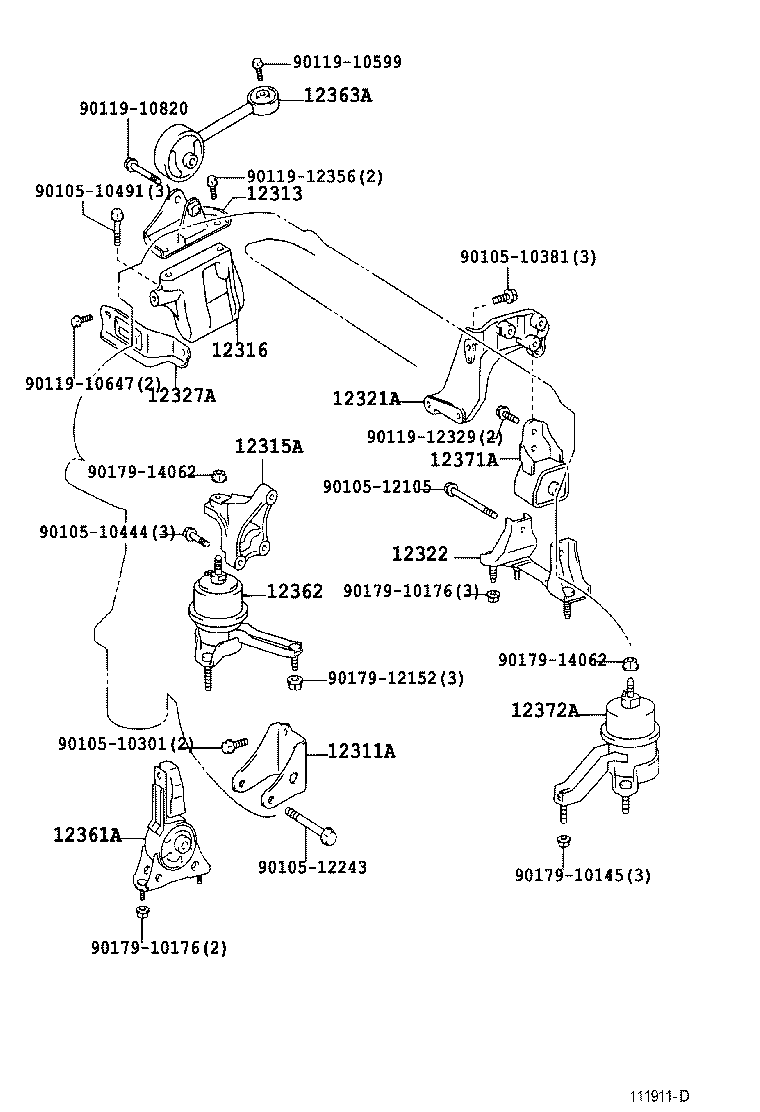

Click highlighted areas on diagram

diagram 12311A 12313 12315A 12316 12321A 12322 12327A 12361A 12362 12363A 12371A 12372A 9010510301 9010510381 9010510444 9010510491 9010512105 9010512243 9011910599 9011910647 9011910820 9011912329 9011912356 9017910145 9017910176 9017910176 9017912152 9017914062 9017914062
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-28070

2AZFE..ACU15

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-28030

2AZFE..ACU1#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-28040

2AZFE..ACU15

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-28050

2AZFE..ACU1#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-28080

2AZFE..ACU15

 1
12321-28081

2AZFE..ACU15

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-28030

2AZFE..ACU15

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-28020

2AZFE..ACU1#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-28120

2AZFE..ACU1#

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-28040

2AZFE..ACU1#

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-28040

2AZFE..ACU15

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-28050

2AZFE..ACU15

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-28070

2AZFE..ACU15

 1
Common parts
90105-10301
90105-10381
90105-10444
90105-10491
90105-12105
90105-12243
90119-10599
90119-10647
90119-10820
90119-12329
90119-12356
90179-10145
90179-10176
90179-12152
90179-14062
