ZSU65W-ANXXP (2013)
Toyota Harrier/Hybrid

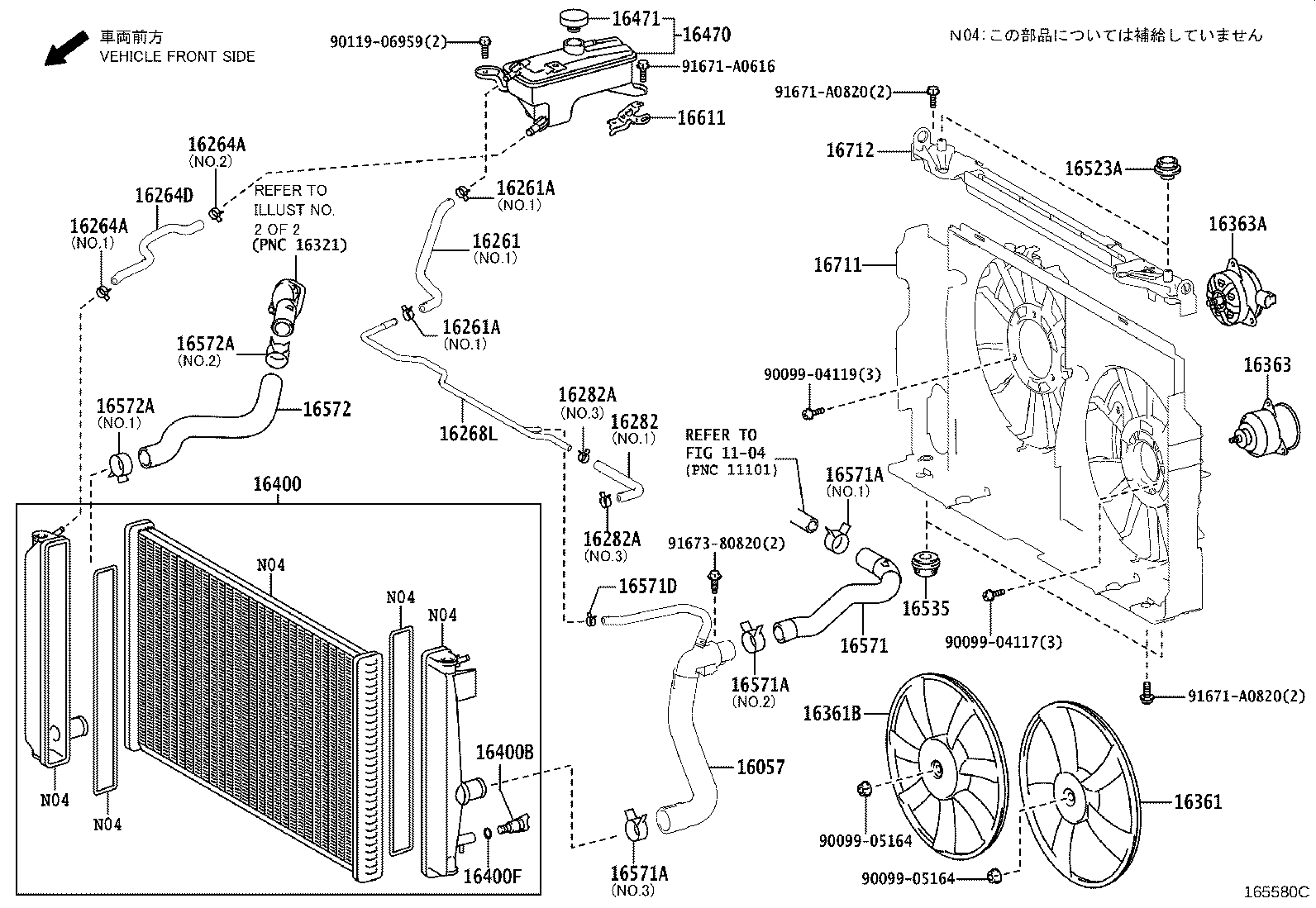

ILLUST NO. 1 OF 2(1312-1705)3ZRFAE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16057 - HOSE SUB-ASSY, RADIATOR | ||||
| 16057-37021 |
3ZRFAE..ZSU6# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-36050 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 16261-37022 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFAE..ZSU6# NO.2 |
2 | ||
| 90467-15022 |
3ZRFAE..ZSU6# NO.1 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFAE..ZSU6# NO.2 |
2 | ||
| 90467-15022 |
3ZRFAE..ZSU6# NO.1 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96137-41501 |
3ZRFAE..ZSU6# NO.3 |
2 | ||
| 96136-41901 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96137-41501 |
3ZRFAE..ZSU6# NO.3 |
2 | ||
| 96136-41901 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36040 |
3ZRFAE..ZSU6# |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-36070 |
3ZRFAE..ZSU6# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-37080 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16282-36030 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
3ZRFAE..ZSU6# NO.3 |
2 | ||
| 96136-42101 |
3ZRFAE..ZSU6# NO.1 & NO.2 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
3ZRFAE..ZSU6# NO.3 |
2 | ||
| 96136-42101 |
3ZRFAE..ZSU6# NO.1 & NO.2 |
2 | ||
| 16361 - FAN | ||||
| 16361-28200 |
3ZRFAE..ZSU6# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28210 |
3ZRFAE..ZSU6# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28020 |
3ZRFAE..ZSU6# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-28240 |
3ZRFAE..ZSU6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28560 |
3ZRFAE..ZSU6# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
3ZRFAE..ZSU6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3ZRFAE..ZSU6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-28112 |
3ZRFAE..ZSU6# |
1 | ||
| 16470-28113 |
3ZRFAE..ZSU6# |
1 | ||
| 16470-28111 |
3ZRFAE..ZSU6# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16475-37011 |
3ZRFAE..ZSU6# |
1 | ||
| 16475-28140 |
3ZRFAE..ZSU6# |
1 | ||
| 16475-37010 |
3ZRFAE..ZSU6# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21060 |
3ZRFAE..ZSU6# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
3ZRFAE..ZSU6# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-37130 |
3ZRFAE..ZSU6# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96136-44801 |
3ZRFAE..ZSU6# NO.3 |
1 | ||
| 96136-44301 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96136-44801 |
3ZRFAE..ZSU6# NO.3 |
1 | ||
| 96136-44301 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96136-44801 |
3ZRFAE..ZSU6# NO.3 |
1 | ||
| 96136-44301 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-13128 |
3ZRFAE..ZSU6# |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-37160 |
3ZRFAE..ZSU6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44801 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96136-44301 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44801 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96136-44301 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-28030 |
3ZRFAE..ZSU6# |
1 | ||
| 16611-36010 |
3ZRFAE..ZSU6# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-37100 |
3ZRFAE..ZSU6# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-36030 |
3ZRFAE..ZSU6# |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06959 | ||||
| 91671-A0616 | ||||
| 91671-A0820 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 1104 | ||||

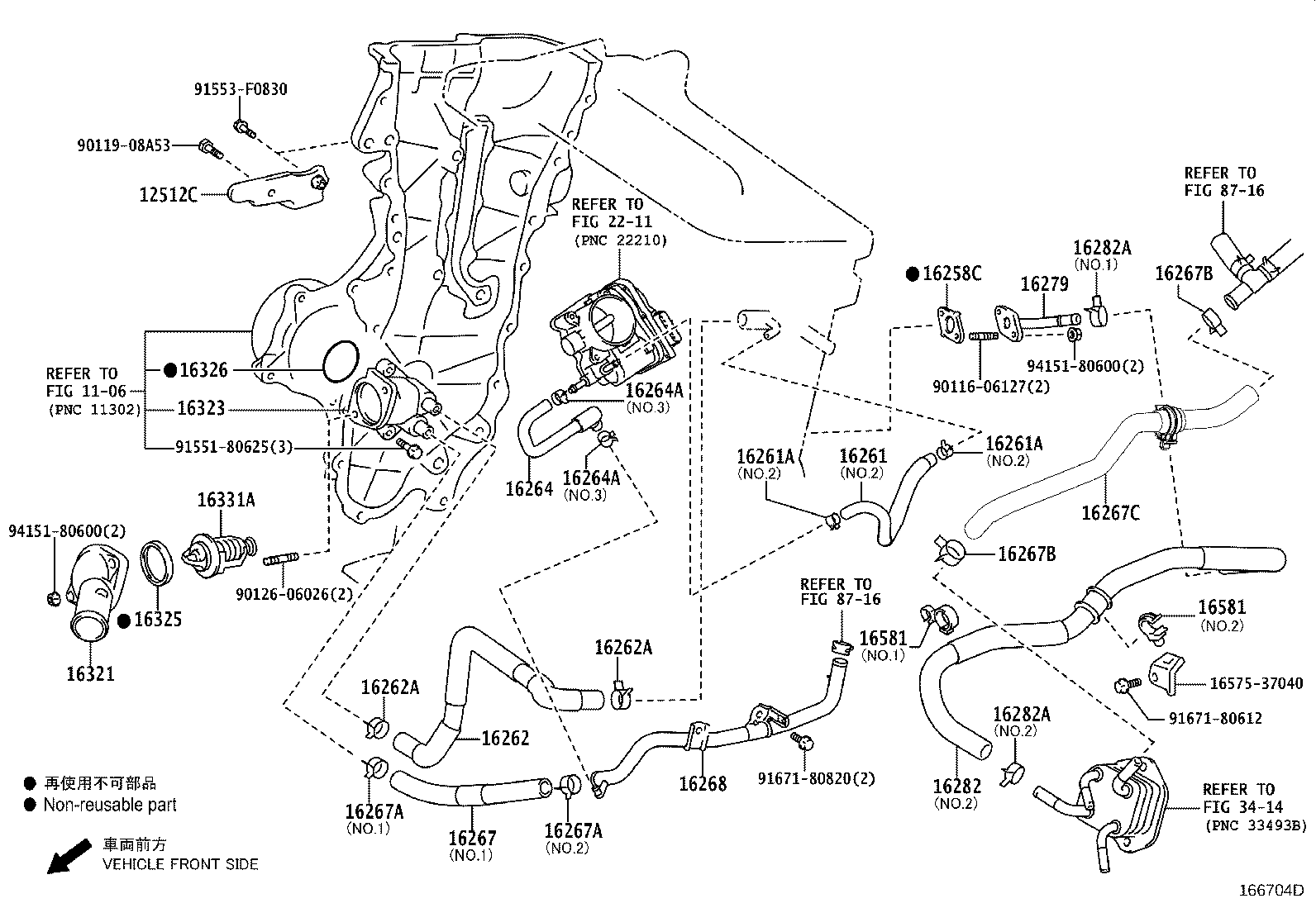

ILLUST NO. 2 OF 2(1312- )3ZRFAE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12512C - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-37010 |
3ZRFAE..ZSU6# |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-28040 |
3ZRFAE..ZSU6# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-36050 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 16261-37022 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFAE..ZSU6# NO.2 |
2 | ||
| 90467-15022 |
3ZRFAE..ZSU6# NO.1 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFAE..ZSU6# NO.2 |
2 | ||
| 90467-15022 |
3ZRFAE..ZSU6# NO.1 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
3ZRFAE..ZSU6# |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
3ZRFAE..ZSU6# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
3ZRFAE..ZSU6# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37022 |
3ZRFAE..ZSU6# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96137-41501 |
3ZRFAE..ZSU6# NO.3 |
2 | ||
| 96136-41901 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96137-41501 |
3ZRFAE..ZSU6# NO.3 |
2 | ||
| 96136-41901 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37020 |
3ZRFAE..ZSU6# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96136-52701 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 96136-52701 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
3ZRFAE..ZSU6# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
3ZRFAE..ZSU6# |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-37080 |
3ZRFAE..ZSU6# |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37080 |
3ZRFAE..ZSU6# ﾍﾟｲﾝﾄ無し |
1 | ||
| 16268-37041 |
3ZRFAE..ZSU6# |
1 | ||
| 16268-37041 |
3ZRFAE..ZSU6# 識別ﾍﾟｲﾝﾄ=黒 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-37010 |
3ZRFAE..ZSU6# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-37080 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16282-36030 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
3ZRFAE..ZSU6# NO.3 |
2 | ||
| 96136-42101 |
3ZRFAE..ZSU6# NO.1 & NO.2 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
3ZRFAE..ZSU6# NO.3 |
2 | ||
| 96136-42101 |
3ZRFAE..ZSU6# NO.1 & NO.2 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
3ZRFAE..ZSU6# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37040 |
3ZRFAE..ZSU6# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
3ZRFAE..ZSU6# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37030 |
3ZRFAE..ZSU6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03148 |
3ZRFAE..ZSU6# *WAX 80−93 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37010 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 16581-37100 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37010 |
3ZRFAE..ZSU6# NO.1 |
1 | ||
| 16581-37100 |
3ZRFAE..ZSU6# NO.2 |
1 | ||
| Common parts | ||||
| 16575-37040 | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 91551-80625 | ||||
| 91553-F0830 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3414 | ||||
| 8716 | ||||
