ZSU65W-ANXMP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZSU6#

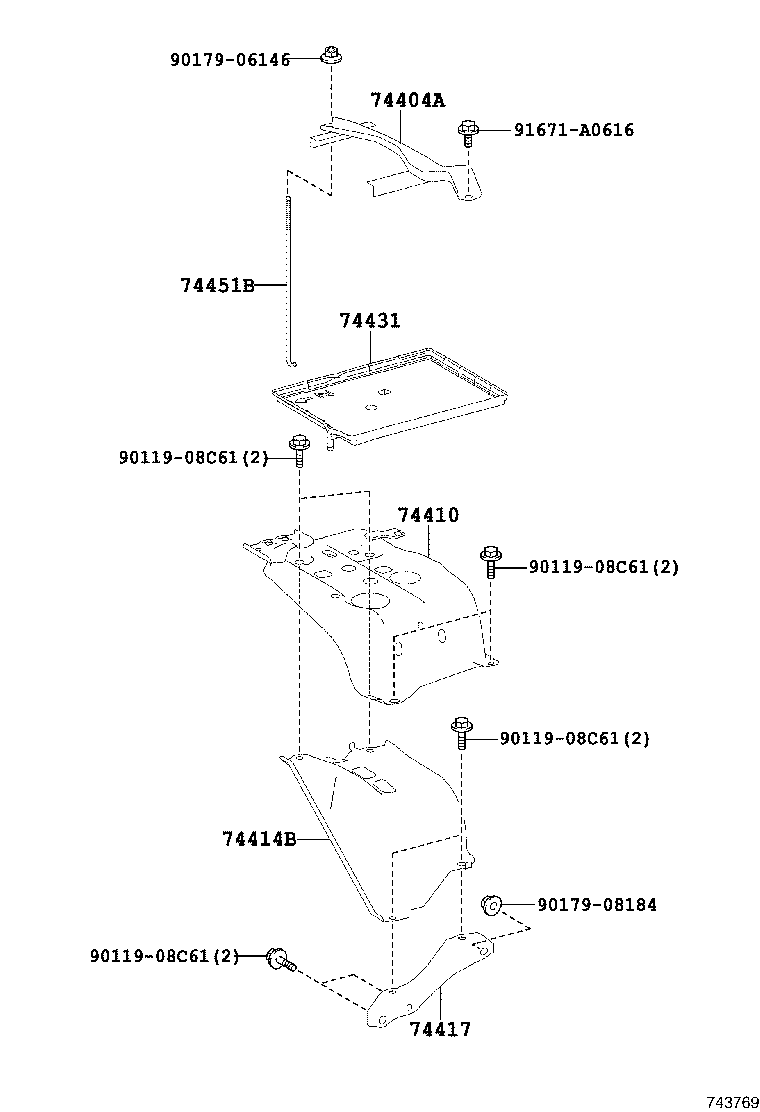

Click highlighted areas on diagram

diagram 74404A 74410 74414B 74417 74431 74451B 9011908C61 9011908C61 9011908C61 9011908C61 9017906146 9017908184 91671A0616
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-48130

ZSU6#

 1
74410 - CARRIER ASSY, BATTERY
74410-42011

ZSU6#

 1
74414B - REINFORCEMENT, BATTERY BRACKET
74414-42011

ZSU6#

 1
74417 - BRACKET, BATTERY CARRIER
74417-42030

ZSU6#

 1
74431 - TRAY, BATTERY
74431-42110

ZSU6#

 1
74451B - BOLT, BATTERY CLAMP
74451-10061

ZSU6#

 1
74451-10060

ZSU6#

 1
Common parts
90119-08C61
90179-06146
90179-08184
91671-A0616
