ZSU65W-ANXMP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

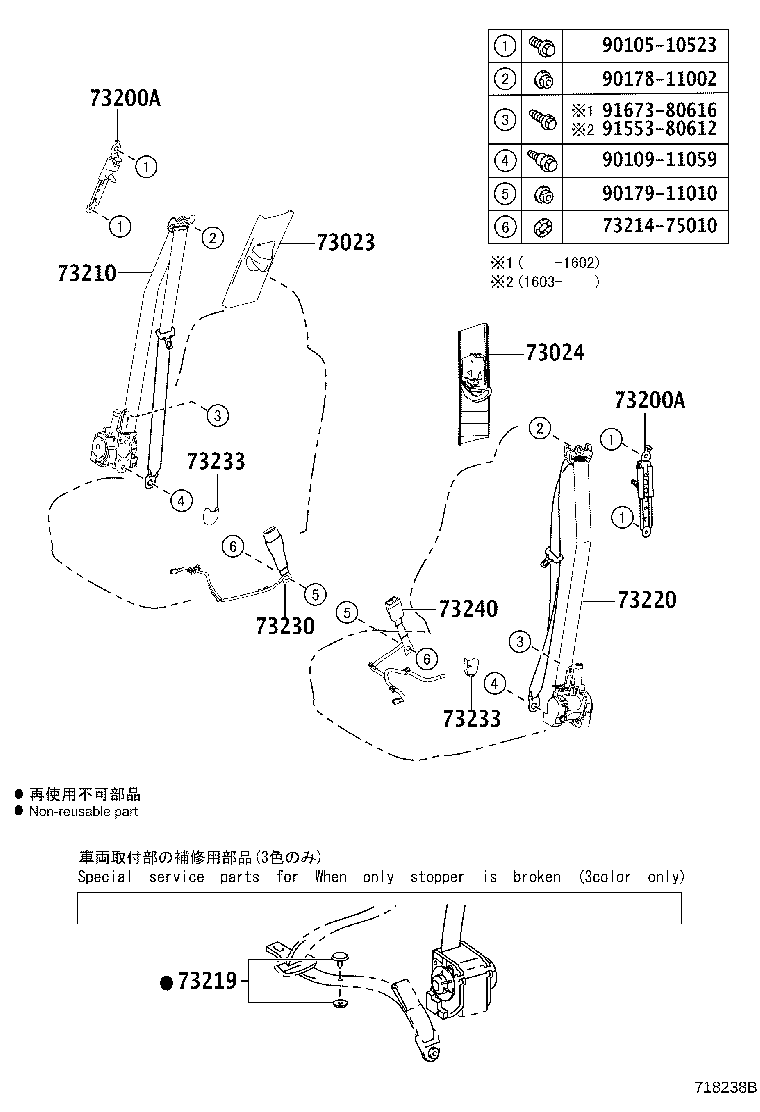

(1312- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｼｰﾄ

diagram 73023 73024 73200A 73200A 73210 7321475010 73219 73220 73230 73233 73233 73240 9010510523 9010911059 9017811002 9017911010 9155380612 9167380616
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-33030C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-33030C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-53010

AVU65,ZSU6#

 2
73200-12070

AVU65,ZSU6#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-53010

AVU65,ZSU6#

 2
73200-12070

AVU65,ZSU6#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-48560C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

AVU65,ZSU6#

ﾌﾞﾗｯｸ

 1
73219-33020

AVU65,ZSU6#

ｸﾞﾚｰ

 1
73219-33030

AVU65,ZSU6#

ﾍﾞｰｼﾞｭ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-48510C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-48490C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 2
73233-60020C1

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 2
73233-60020C1

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-48480C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73230-48500C0

AVU65,ZSU6#..ELEGC

ｼｰﾄ表皮−本革,BLACK,TRIM2#,4#

 1
Common parts
73214-75010
90105-10523
90109-11059
90178-11002
90179-11010
91553-80612
91673-80616

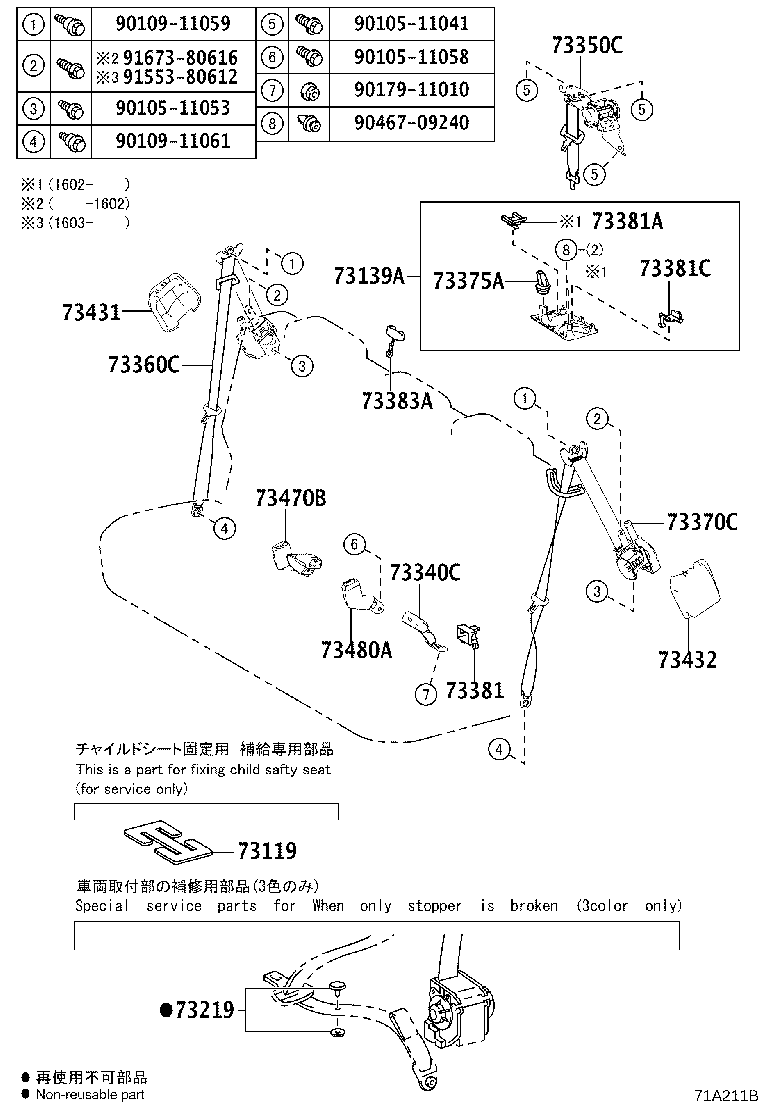

(1312- )

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

diagram 73119 73139A 73219 73340C 73350C 73360C 73370C 73375A 73381 73381A 73381C 73383A 73431 73432 73470B 73480A 9010511041 9010511053 9010511058 9010911059 9010911061 9017911010 9046709240 9155380612 9167380616
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

AVU65,ZSU6#

 1
73139A - COVER, SEAT BELT ANCHOR
73139-48010C0

AVU65,ZSU6#..ELEGC,PREM

BLACK,TRIM0#,2#,4#

 1
73139-48011C0

AVU65,ZSU6#..ELEGC,PREM

BLACK,TRIM0#,2#,4#

 1
73139-48012C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

AVU65,ZSU6#

ﾌﾞﾗｯｸ

 1
73219-33020

AVU65,ZSU6#

ｸﾞﾚｰ

 1
73219-33030

AVU65,ZSU6#

ﾍﾞｰｼﾞｭ

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-48020C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-48290C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-48210C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-48200C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73375A - CLIP, REAR SEAT BELT COVER
90467-11089A0

AVU65,ZSU6#

IVORY

 1
73381 - HOLDER, REAR SEAT BELT
73381-48010C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73381A - HOLDER, REAR SEAT BELT NO.2
73381-KK020

AVU65,ZSU6#

 1
73381C - HOLDER, SEAT BELT
73381-KK010

AVU65,ZSU6#

 1
73383A - HOOK, RR SEAT BELT
73383-48010

AVU65,ZSU6#

有り(ﾘﾔｼｰﾄﾍﾞﾙﾄﾘﾙｰﾀ)

 1
73431 - COVER, REAR SEAT BELT RETRACTOR, RH
73431-48030

AVU65,ZSU6#

 1
73432 - COVER, REAR SEAT BELT RETRACTOR, LH
73432-48030

AVU65,ZSU6#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-48020C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
73480A - BELT ASSY, REAR SEAT, INNER LH
73480-48050C0

AVU65,ZSU6#..ELEGC,PREM

BLACK,TRIM0#,2#,4#

 1
73480-48050C1

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
Common parts
90105-11041
90105-11053
90105-11058
90109-11059
90109-11061
90179-11010
90467-09240
91553-80612
91673-80616
