ZSU65W-ANXMP (2013)
Toyota Harrier/Hybrid

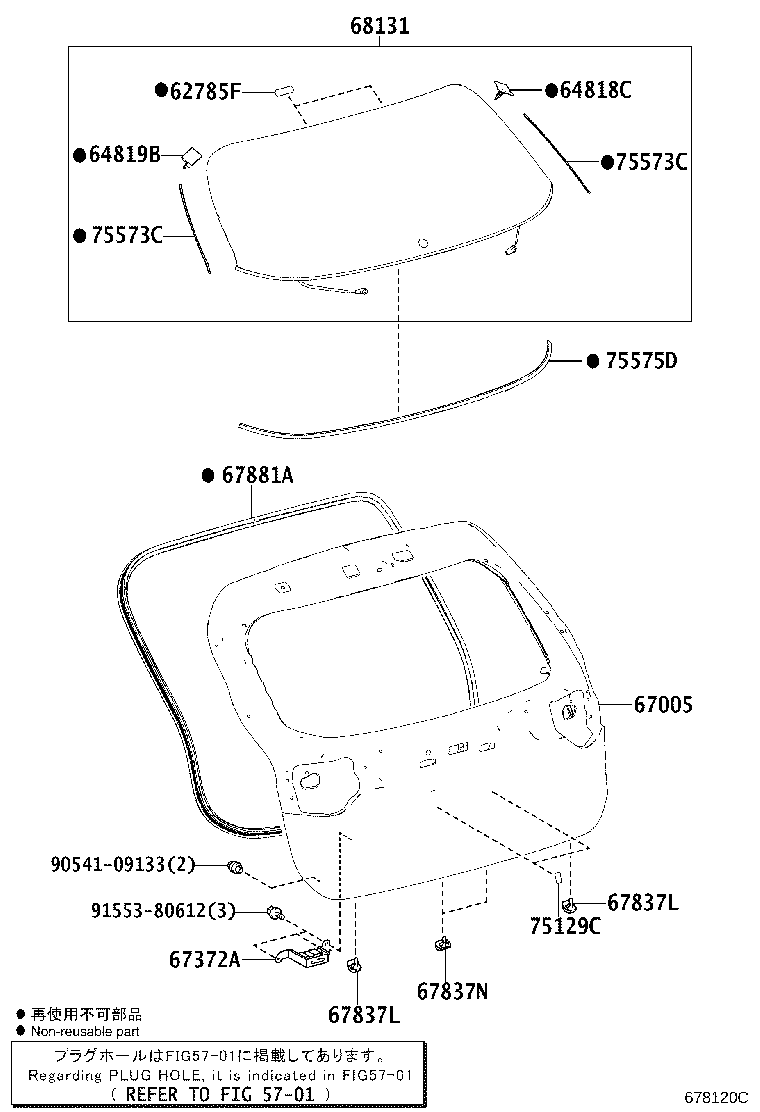

ILLUST NO. 1 OF 2(1312- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
AVU65,ZSU6# |
2 | ||
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-48050 |
AVU65,ZSU6# |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-48050 |
AVU65,ZSU6# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-48340 |
AVU65,ZSU6#..ELEGC,GRAND |
1 | ||
| 67005-48350 |
AVU65,ZSU6#..ELEGC ﾗｹﾞｰｼﾞ&ﾊﾞｯｸﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-48070 |
AVU65,ZSU6# |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-48090 |
AVU65,ZSU6# |
2 | ||
| 67837-30060 |
AVU65,ZSU6# |
2 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-48090 |
AVU65,ZSU6# |
2 | ||
| 67837-30060 |
AVU65,ZSU6# |
2 | ||
| 67837N - SEAL, BACK DOOR DUST PROOF | ||||
| 67837-52040 |
AVU65,ZSU6# |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-48070 |
AVU65,ZSU6# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-48903 |
AVU65,ZSU6# *TEM,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68105-48904 |
AVU65,ZSU6# |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-30010 |
AVU65,ZSU6# |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-48050 |
AVU65,ZSU6# |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-48050 |
AVU65,ZSU6# |
2 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-48040 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90541-09133 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 5701 | ||||

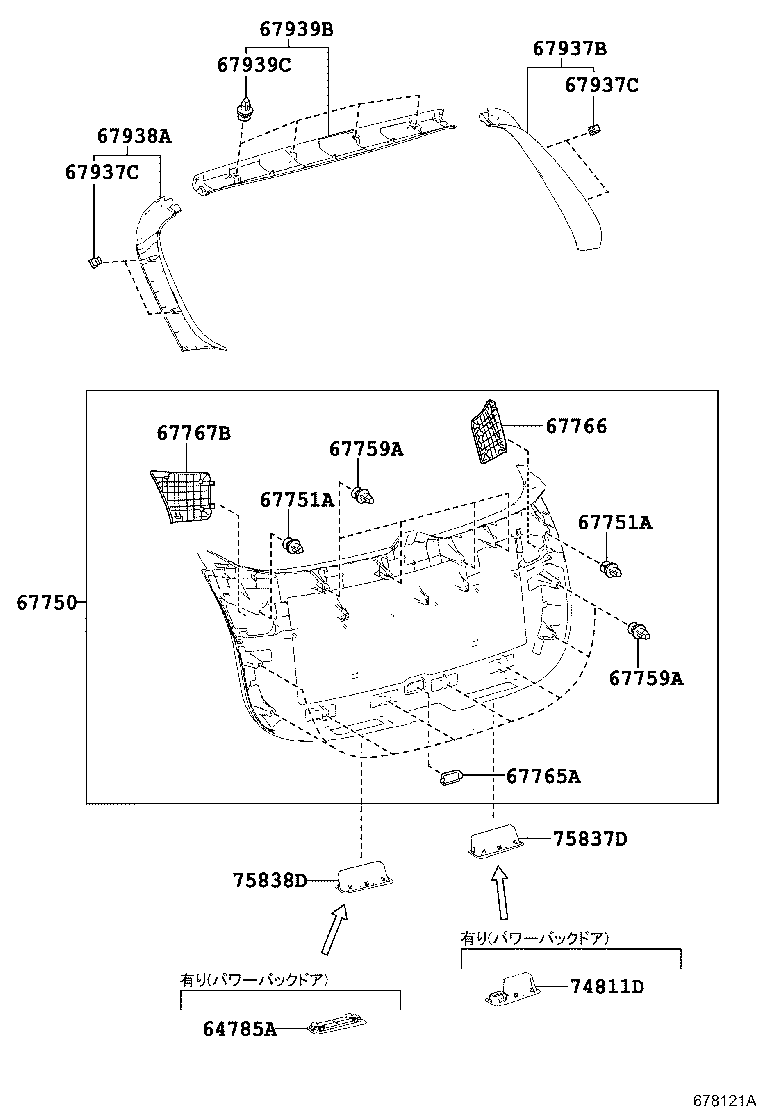

ILLUST NO. 2 OF 2(1312- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64785A - BASE, BACK DOOR TRIM | ||||
| 64785-48010C0 |
AVU65,ZSU6#..ELEGC ﾗｹﾞｰｼﾞ&ﾊﾞｯｸﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2#,4# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-48010C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10167 |
AVU65,ZSU6# |
2 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10167 |
AVU65,ZSU6# |
2 | ||
| 67759A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
AVU65,ZSU6# |
12 | ||
| 67759A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
AVU65,ZSU6# |
12 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-48020C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-48020C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 67767B - COVER, BACK DOOR SERVICE HOLE, NO.3 | ||||
| 67767-48020C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-48030C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
AVU65,ZSU6# |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
AVU65,ZSU6# |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-48010C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-48010C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
AVU65,ZSU6# |
4 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 69291-48020C0 |
AVU65,ZSU6#..ELEGC ﾗｹﾞｰｼﾞ&ﾊﾞｯｸﾄﾞｱ−有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2#,4# |
1 | ||
| 75837D - COVER, BACK DOOR FINISH, RH | ||||
| 75837-48010C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 75838D - COVER, BACK DOOR FINISH, LH | ||||
| 75838-48010C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
