ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZSU6#

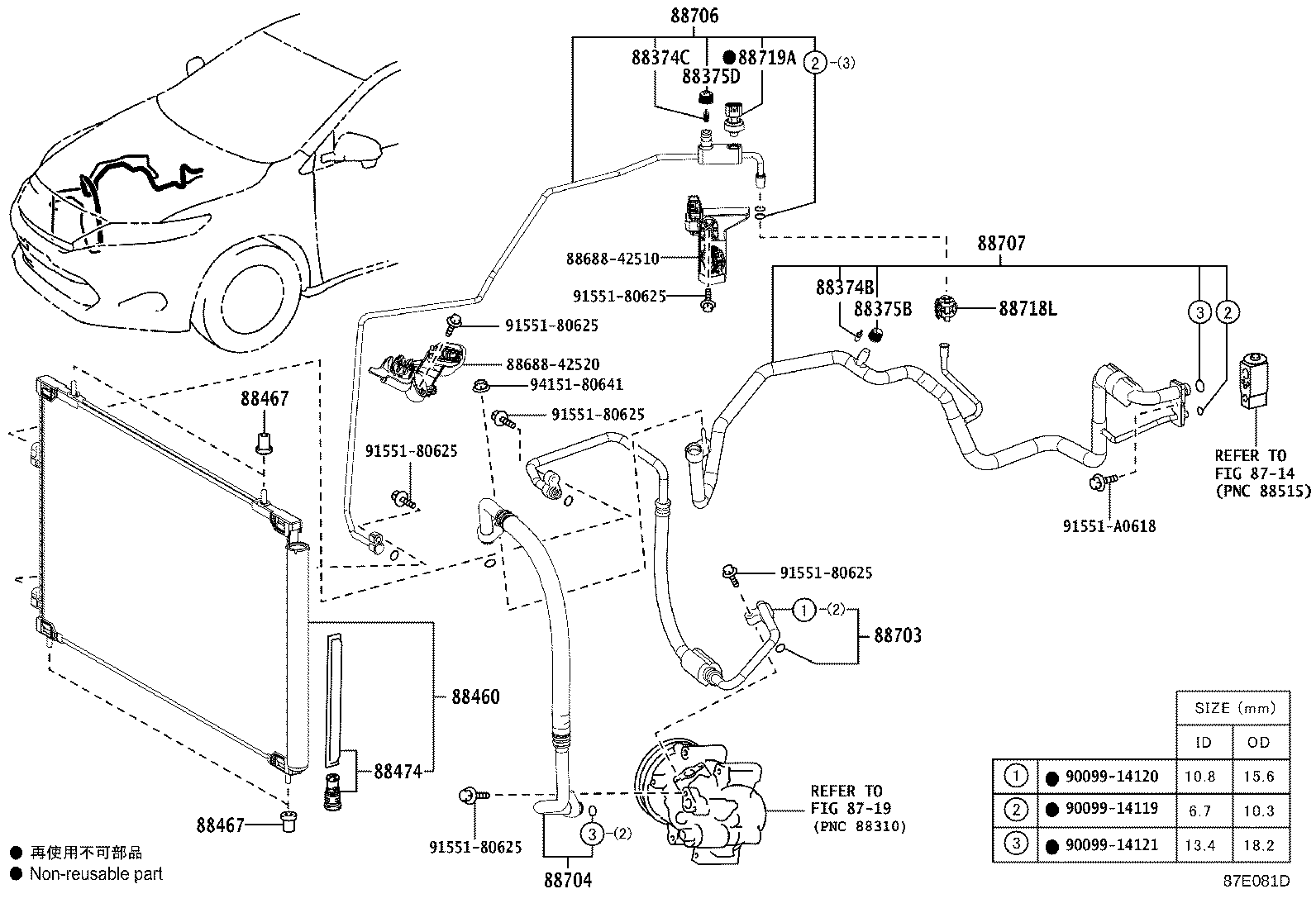

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 88474 8868842510 8868842520 88703 88704 88706 88707 88718L 88719A 9009914119 9009914120 9009914121 9155180625 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 9415180641
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZSU6#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AVU65,ZSU6#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZSU6#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ZSU6#

 1
88460 - CONDENSER ASSY, COOLER
88460-48010

ZSU6#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZSU6#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZSU6#

 4
88474 - DRYER, COOLER
88474-12010

ZSU6#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-48300

ZSU6#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-48280

ZSU6#

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-48010

ZSU6#

 1
88707 - PIPE SUB-ASSY, SUCTION
88710-48540

ZSU6#

 1
88718L - CLAMP, PIPING
88718-2D150

ZSU6#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

AVU65,ZSU6#

 1
Common parts
88688-42510
88688-42520
90099-14119
90099-14120
90099-14121
91551-80625
91551-A0618
94151-80641
Linked diagrams
8714
8719
