ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZSU6#

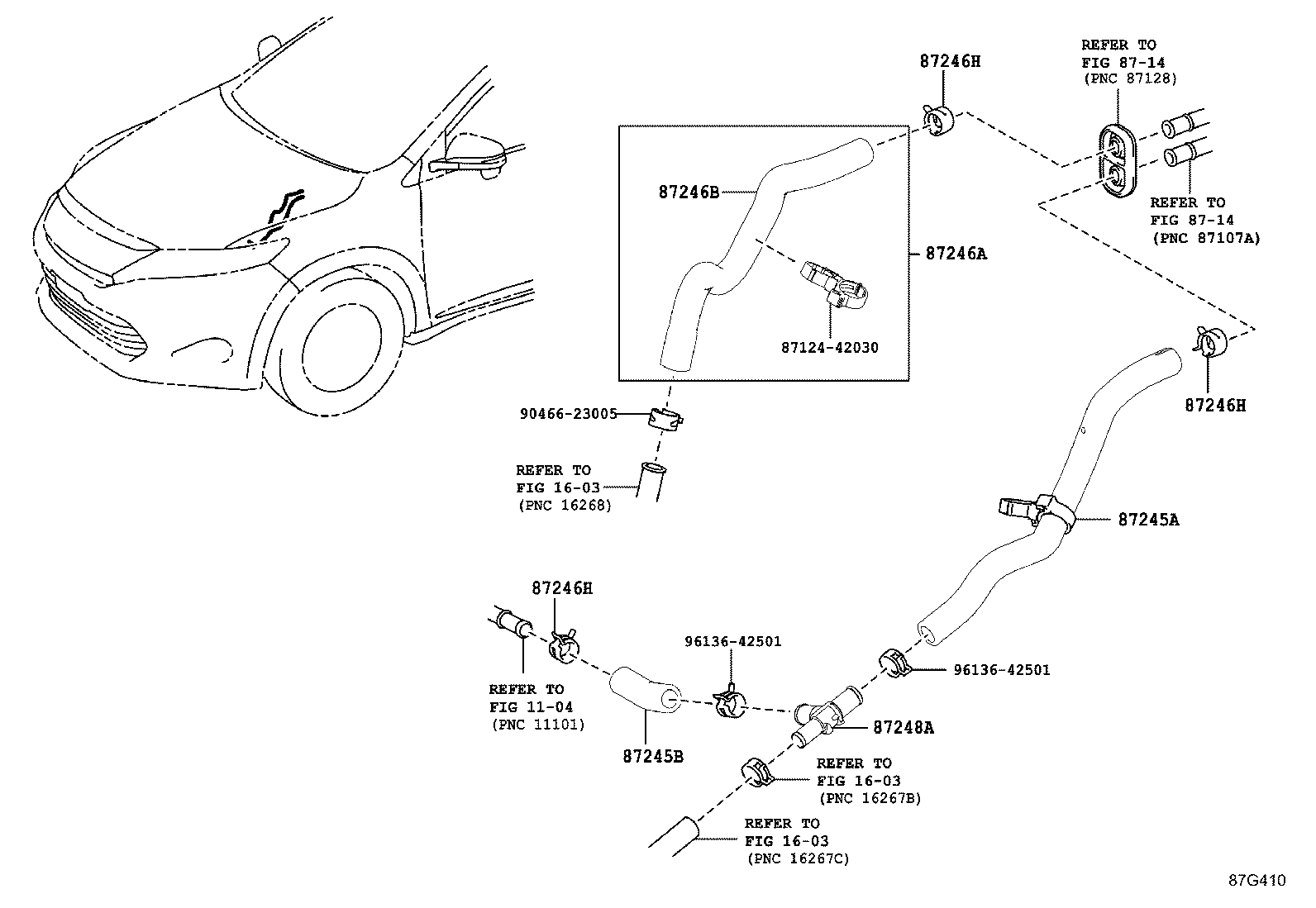

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 8712442030 8714 8714 87245A 87245B 87246A 87246B 87246H 87246H 87246H 87248A 9046623005 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-48C90

ZSU6#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-42440

ZSU6#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-48B60

ZSU6#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-48E70

ZSU6#

 1
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
96138-42501

ZSU6#

 3
96136-42501

ZSU6#

 3
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
96138-42501

ZSU6#

 3
96136-42501

ZSU6#

 3
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
96138-42501

ZSU6#

 3
96136-42501

ZSU6#

 3
87248A - PIPE, HEATER WATER INLET, A
87248-12310

ZSU6#

 1
Common parts
87124-42030
90466-23005
96136-42501
Linked diagrams
1104
1603
8714
