ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1705)

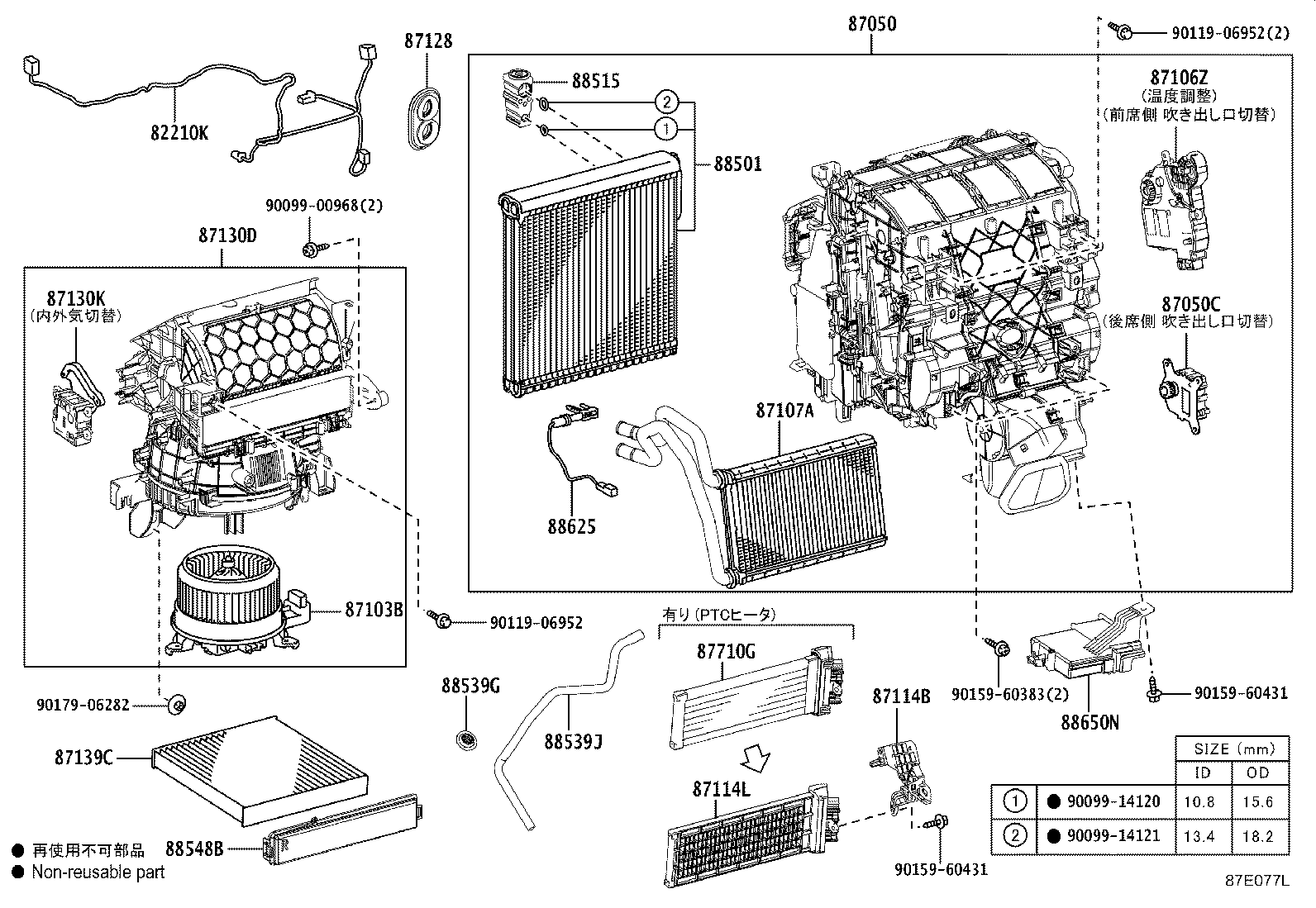

Click highlighted areas on diagram

diagram 82210K 87050 87050C 87103B 87106Z 87107A 87114B 87114L 87128 87130D 87130K 87139C 87710G 88501 88515 88539G 88539J 88548B 88625 88650N 9009900968 9009914120 9009914121 9011906952 9011906952 9015960383 9015960431 9015960431 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-48030

AVU65,ZSU6#

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-48361

ZSU6#

 1
87050-48360

ZSU6#

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-48180

AVU65,ZSU6#

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-48160

AVU65,ZSU6#

 1
87106Z - MODULE SUB-ASSY, SERVO
87106-48170

AVU65,ZSU6#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-48110

AVU65,ZSU6#

 1
87114B - COVER, HEATER
87114-48120

AVU65,ZSU6#

 1
87114L - COVER, HEATER, NO.2
87114-48110

ZSU6#

 1
87128 - GROMMET, HEATER
87128-42010

AVU65,ZSU6#

 1
87130D - BLOWER ASSY
87130-48310

AVU65,ZSU6#

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-48190

AVU65,ZSU6#

 1
87139C - FILTER, CLEAN AIR
87139-50100

AVU65,ZSU6#

花粉･脱臭ﾌｨﾙﾀ

 1
87139-52040

AVU65,ZSU6#

花粉ﾌｨﾙﾀ,工場装着品

 1
87710G - QUICK HEATER ASSY
87710-48020

ZSU6#

寒冷地仕様

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-48330

ZSU6#

 1
88515 - VALVE, COOLER EXPANSION
88515-48120

ZSU6#

 1
88515-48100

ZSU6#

 1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26030

AVU65,ZSU6#

 1
88539J - HOSE, DRAIN COOLER
88539-48070

AVU65,ZSU6#

 1
88548B - CASE, AIR FILTER
88548-42010

AVU65,ZSU6#

 1
88625 - THERMISTOR, COOLER, NO.1
88620-28060

ZSU6#

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-48790

ZSU6#..PREM

 1
Common parts
90099-00968
90099-14120
90099-14121
90119-06952
90159-60383
90159-60431
90179-06282
