ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
(1312-1705)PREM

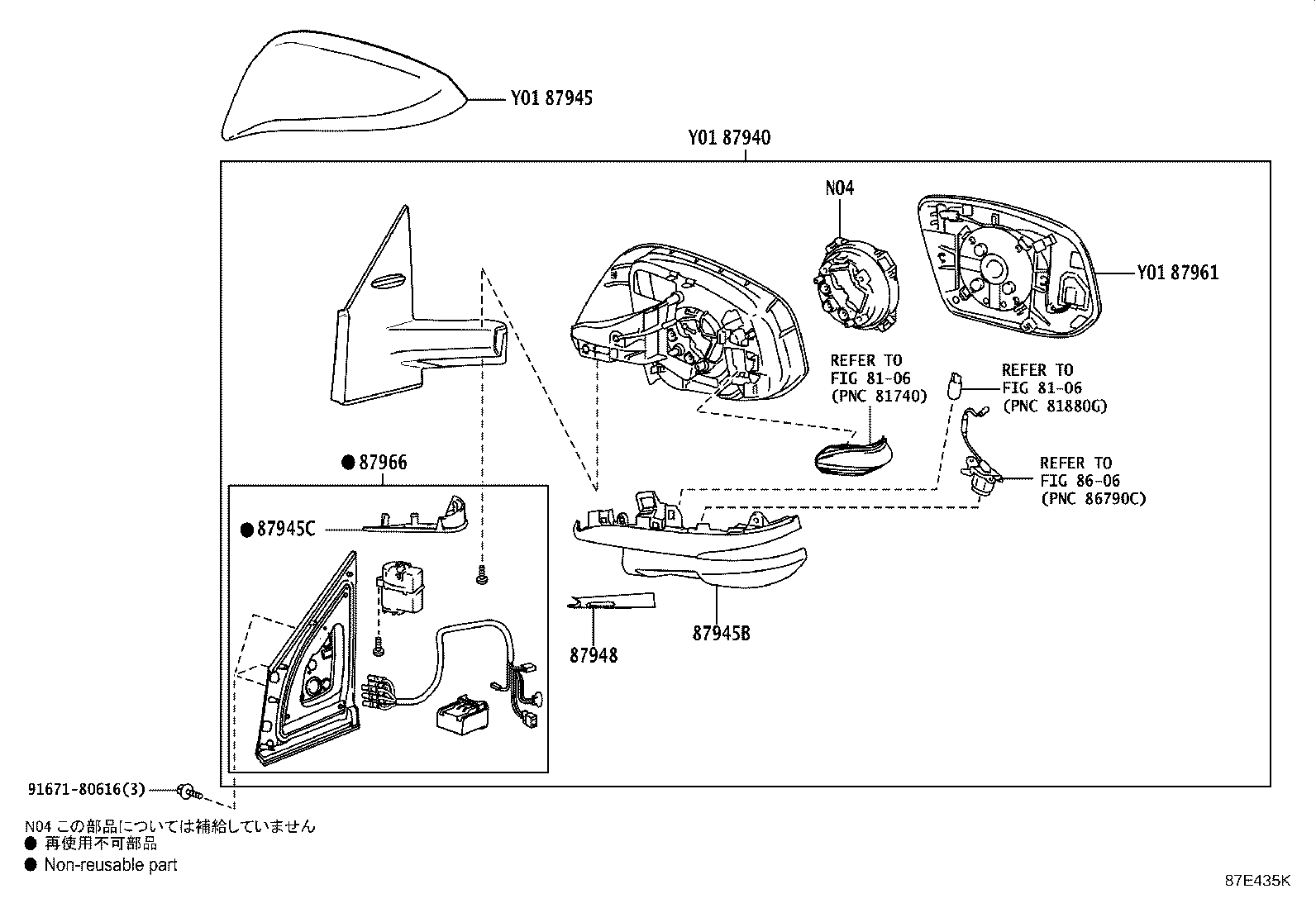

ﾋﾀﾞﾘｶﾞﾜｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ(ｻｲﾄﾞｶﾒﾗｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-48650 |
AVU65,ZSU6# 塗装不要,寒冷地仕様 |
1 | ||
| 87940-48660 |
AVU65,ZSU6#..PREM 塗装不要,“Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87940-48660 |
AVU65,ZSU6#..PREM 塗装不要,“Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅr&JBL |
1 | ||
| 87940-48640 |
AVU65,ZSU6#..ELEGC,PREM 塗装不要 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-48040A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 87945-48040B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 87945-48040C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87945-48040C2 |
AVU65,ZSU6# BLACKISH AGEHA M.M.,221 |
1 | ||
| 87945-48040J2 |
AVU65,ZSU6#..PREM BLUE ME.,8T7 |
1 | ||
| 87945-48040D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 87945-48040B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 87945-48040C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 87945-48040D2 |
AVU65,ZSU6#..PREM RED M.M.,3R3 |
1 | ||
| 87945-48040E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 8794B-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 8794B-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-48030 |
AVU65,ZSU6# |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-48640 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 87948-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87948-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-48630 |
AVU65,ZSU6# |
1 | ||
| 87961-42B80 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 87961-42B80 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87961-42B80 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87966-48640 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 87966-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87966-48650 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
(1312-1705)

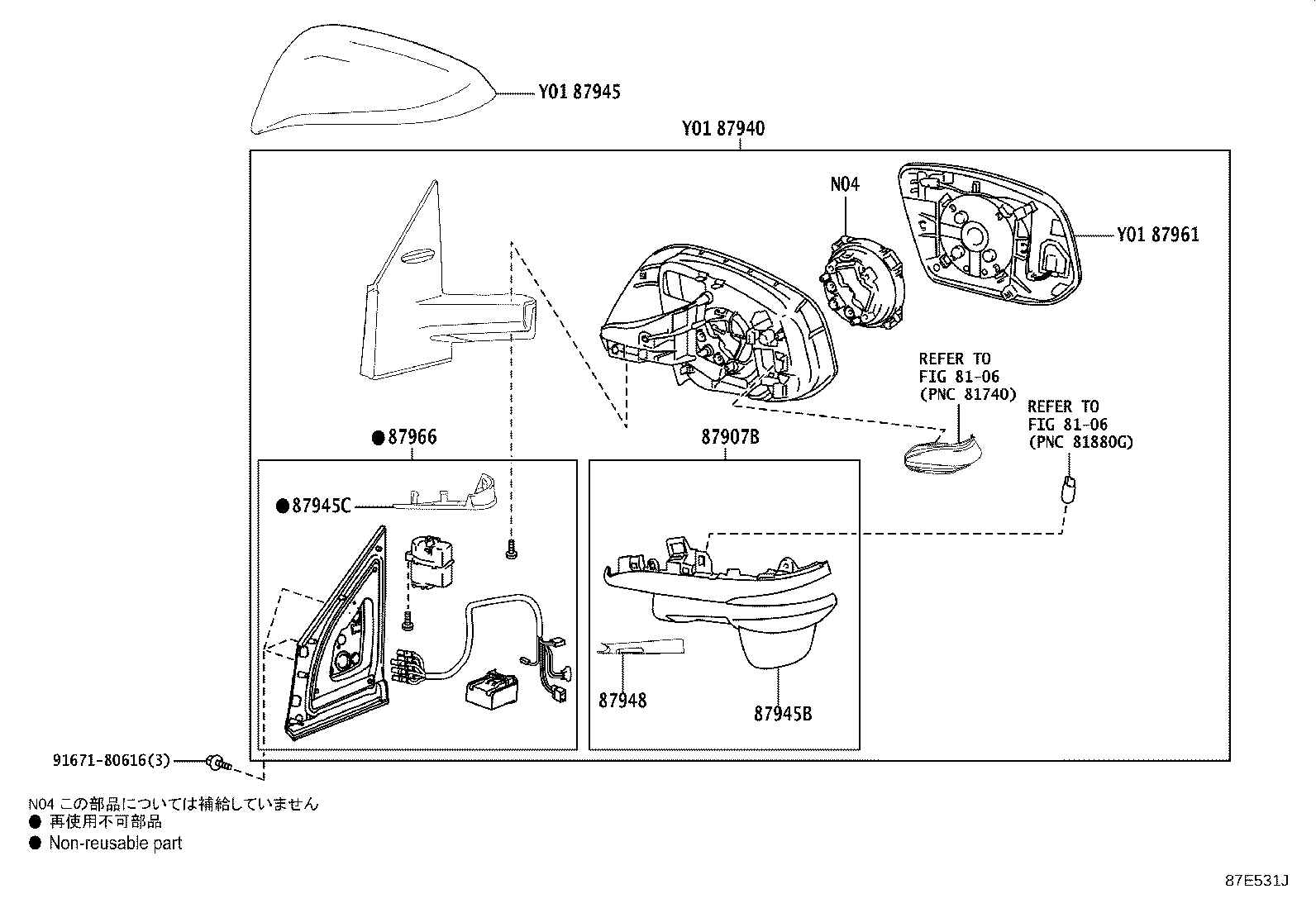

ﾋﾀﾞﾘｶﾞﾜｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ(ｻｲﾄﾞｶﾒﾗﾅｼ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87907B - DEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH | ||||
| 00000-00000 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,該当品番なし |
1 | ||
| 8794A-48640 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 00000-00000 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,該当品番なｵ |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-48650 |
AVU65,ZSU6# 塗装不要,寒冷地仕様 |
1 | ||
| 87940-48660 |
AVU65,ZSU6#..PREM 塗装不要,“Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87940-48660 |
AVU65,ZSU6#..PREM 塗装不要,“Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅr&JBL |
1 | ||
| 87940-48640 |
AVU65,ZSU6#..ELEGC,PREM 塗装不要 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-48040A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 87945-48040B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 87945-48040C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87945-48040C2 |
AVU65,ZSU6# BLACKISH AGEHA M.M.,221 |
1 | ||
| 87945-48040J2 |
AVU65,ZSU6#..PREM BLUE ME.,8T7 |
1 | ||
| 87945-48040D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 87945-48040B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 87945-48040C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 87945-48040D2 |
AVU65,ZSU6#..PREM RED M.M.,3R3 |
1 | ||
| 87945-48040E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 8794B-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 8794B-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-48030 |
AVU65,ZSU6# |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-48640 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 87948-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87948-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-48630 |
AVU65,ZSU6# |
1 | ||
| 87961-42B80 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 87961-42B80 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87961-42B80 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87966-48640 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 87966-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87966-48650 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8106 | ||||
(1312-1705)

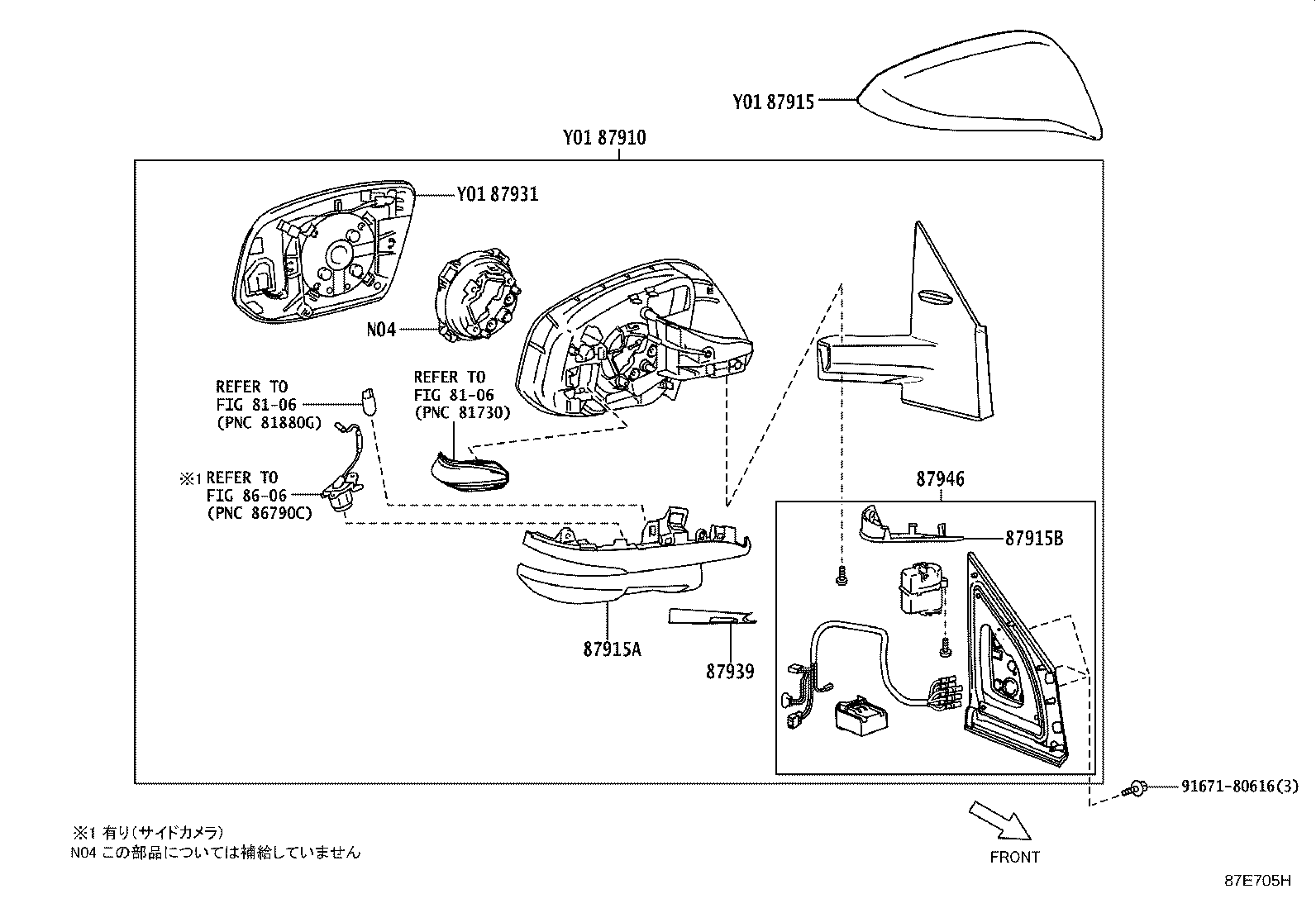

ﾐｷﾞｶﾞﾜｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-48640 |
AVU65,ZSU6#..ELEGC,PREM 塗装不要 |
1 | ||
| 87910-48660 |
AVU65,ZSU6#..PREM 塗装不要,“Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87910-48660 |
AVU65,ZSU6#..PREM 塗装不要,“Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅr&JBL |
1 | ||
| 87910-48650 |
AVU65,ZSU6# 塗装不要,寒冷地仕様 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-48040E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 87915-48040A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 87915-48040C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 87915-48040D2 |
AVU65,ZSU6#..PREM RED M.M.,3R3 |
1 | ||
| 87915-48040J2 |
AVU65,ZSU6#..PREM BLUE ME.,8T7 |
1 | ||
| 87915-48040C2 |
AVU65,ZSU6# BLACKISH AGEHA M.M.,221 |
1 | ||
| 87915-48040C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 87915-48040B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 87915-48040D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 87915-48040B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 87915A - COVER, OUTER MIRROR, RH | ||||
| 8791B-48630 |
AVU65,ZSU6# |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-48030 |
AVU65,ZSU6# |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-42C10 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 87931-42C10 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87931-48630 |
AVU65,ZSU6# |
1 | ||
| 87931-42C10 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-48640 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 87939-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87939-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-48640 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 87946-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 87946-48650 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 87946-48660 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
(1312-1705)

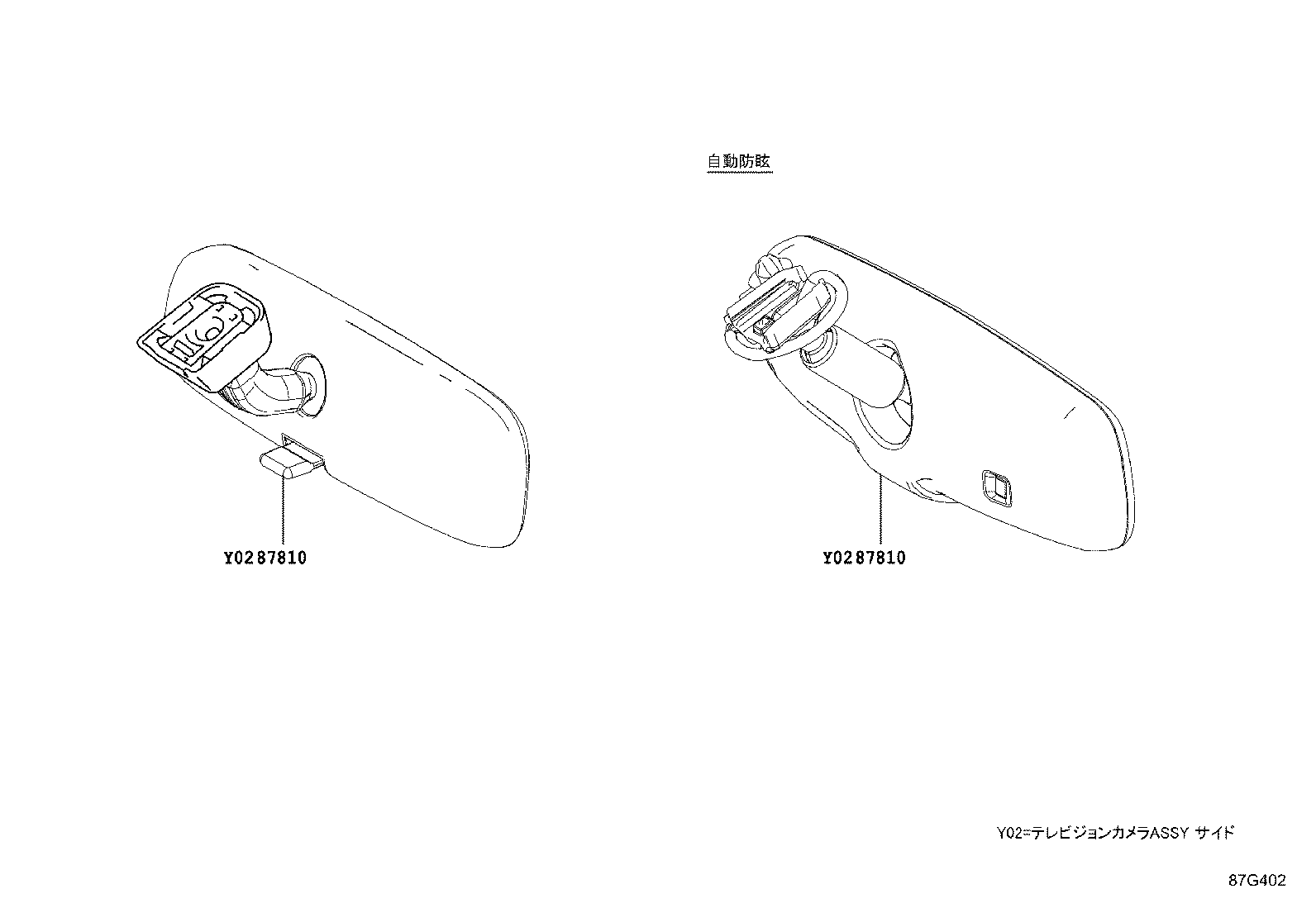

ｲﾝﾅﾘﾔﾋﾞｭｰﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WK00 |
AVU65,ZSU6#..PREM |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WK00 |
AVU65,ZSU6#..PREM |
1 | ||
