ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

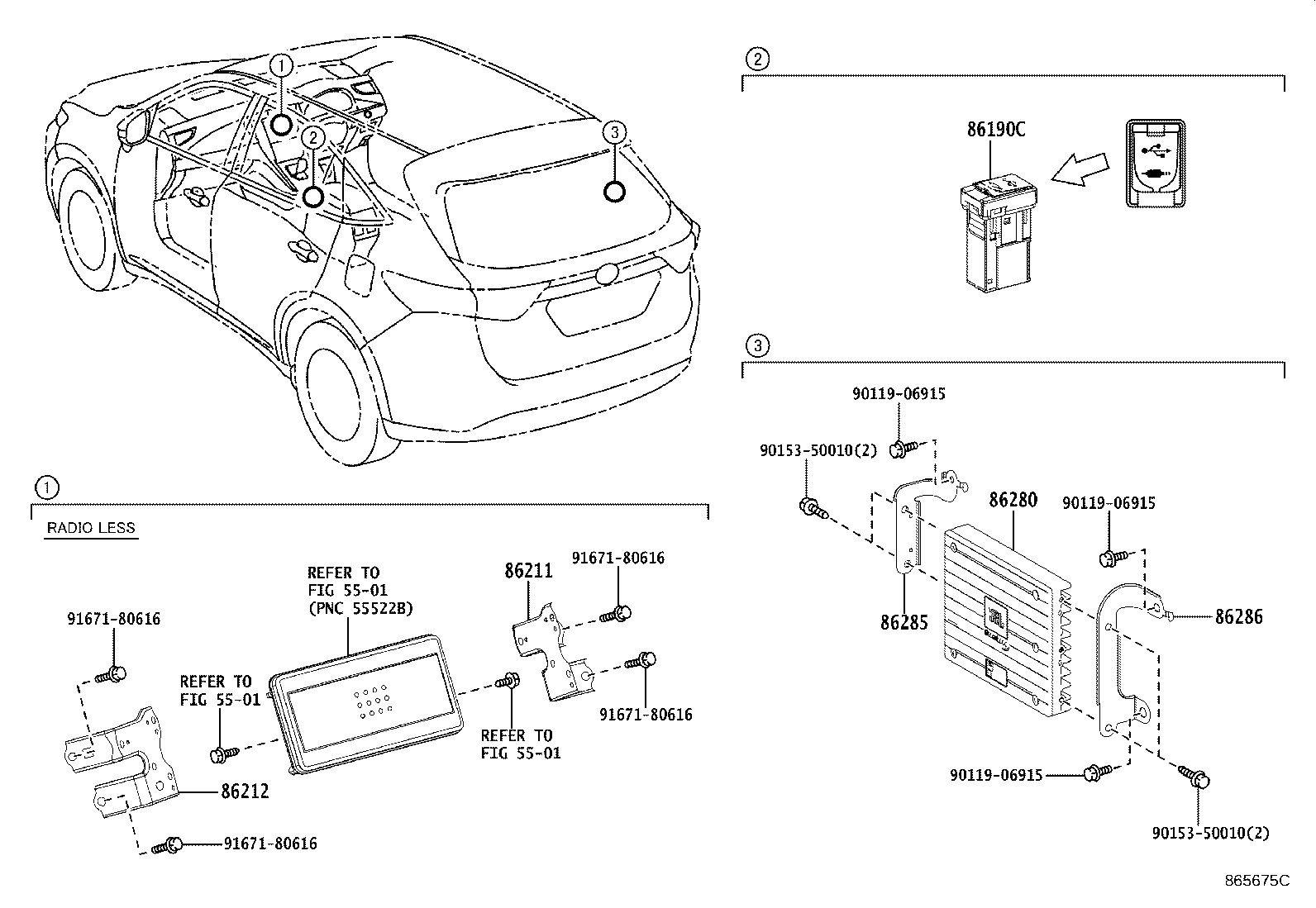

ILLUST NO. 1 OF 3(1312- )

Click highlighted areas on diagram

diagram 5501 5501 5501 86190C 86211 86212 86280 86285 86286 9011906915 9011906915 9011906915 9015350010 9015350010 9167180616 9167180616 9167180616 9167180616
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48080

AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL

 1
86211 - BRACKET, RADIO, NO.1
86211-48180

AVU65,ZSU6#

 1
86212 - BRACKET, RADIO, NO.2
86212-48180

AVU65,ZSU6#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-48260

AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL

 1
86280-0WB60

AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-48140

AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-48120

AVU65,ZSU6#..ELEGC,PREM

ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL

 1
Common parts
90119-06915
90153-50010
91671-80616
Linked diagrams
5501

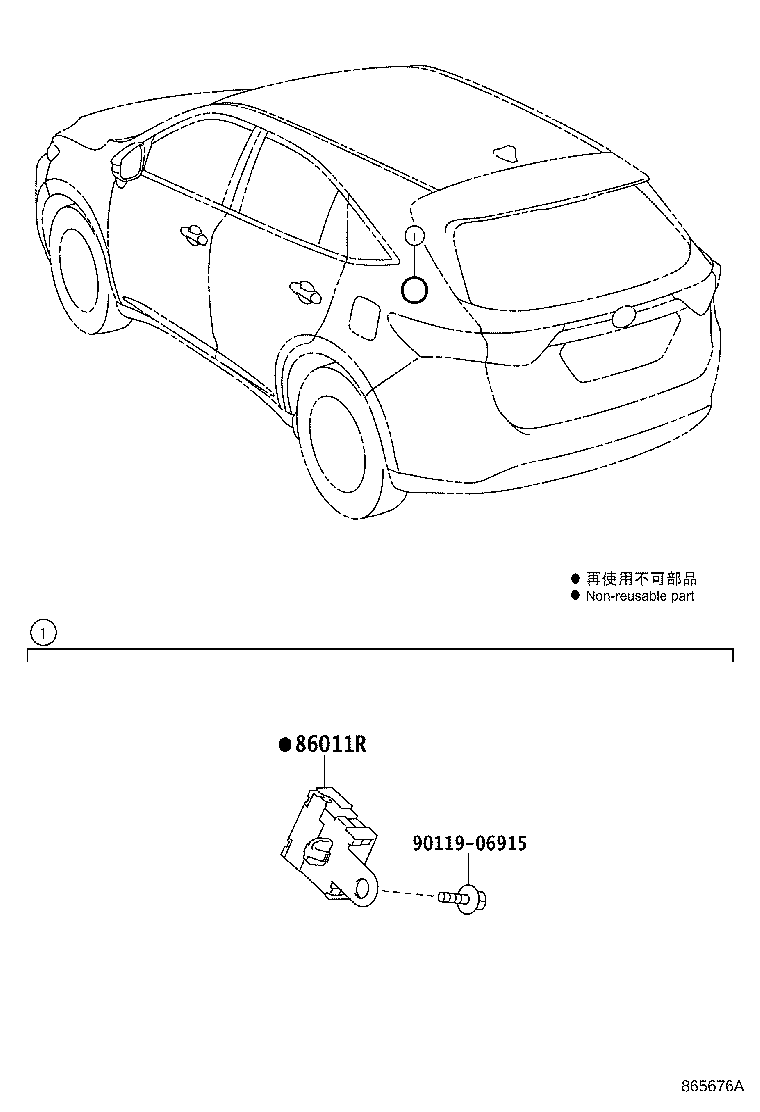

ILLUST NO. 2 OF 3(1312- )

Click highlighted areas on diagram

CONDENSER

diagram 86011R 9011906915
Part # Description Qty Price
86011R - CONDENSER, RADIO SETTING
90980-04189

AVU65,ZSU6#

 1
Common parts
90119-06915

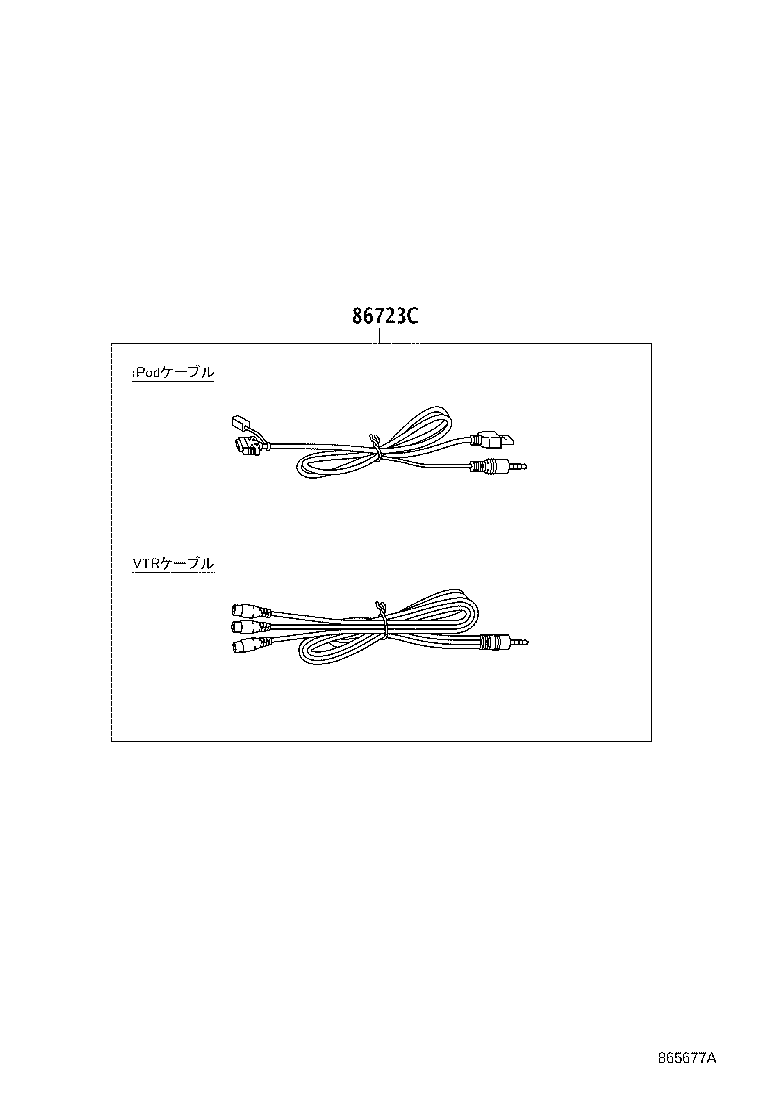

ILLUST NO. 3 OF 3(1312-1506)

Click highlighted areas on diagram

IPOD/VTR CONNECTION CABLE

diagram 86723C
Part # Description Qty Price
86723C - WIRE, MOBILEPHONE
86723-75010

AVU65,ZSU6#

ﾋﾞﾃﾞｵｹｰﾌﾞﾙ−iPod/VTR接続ｹｰﾌﾞﾙ

 1
