ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

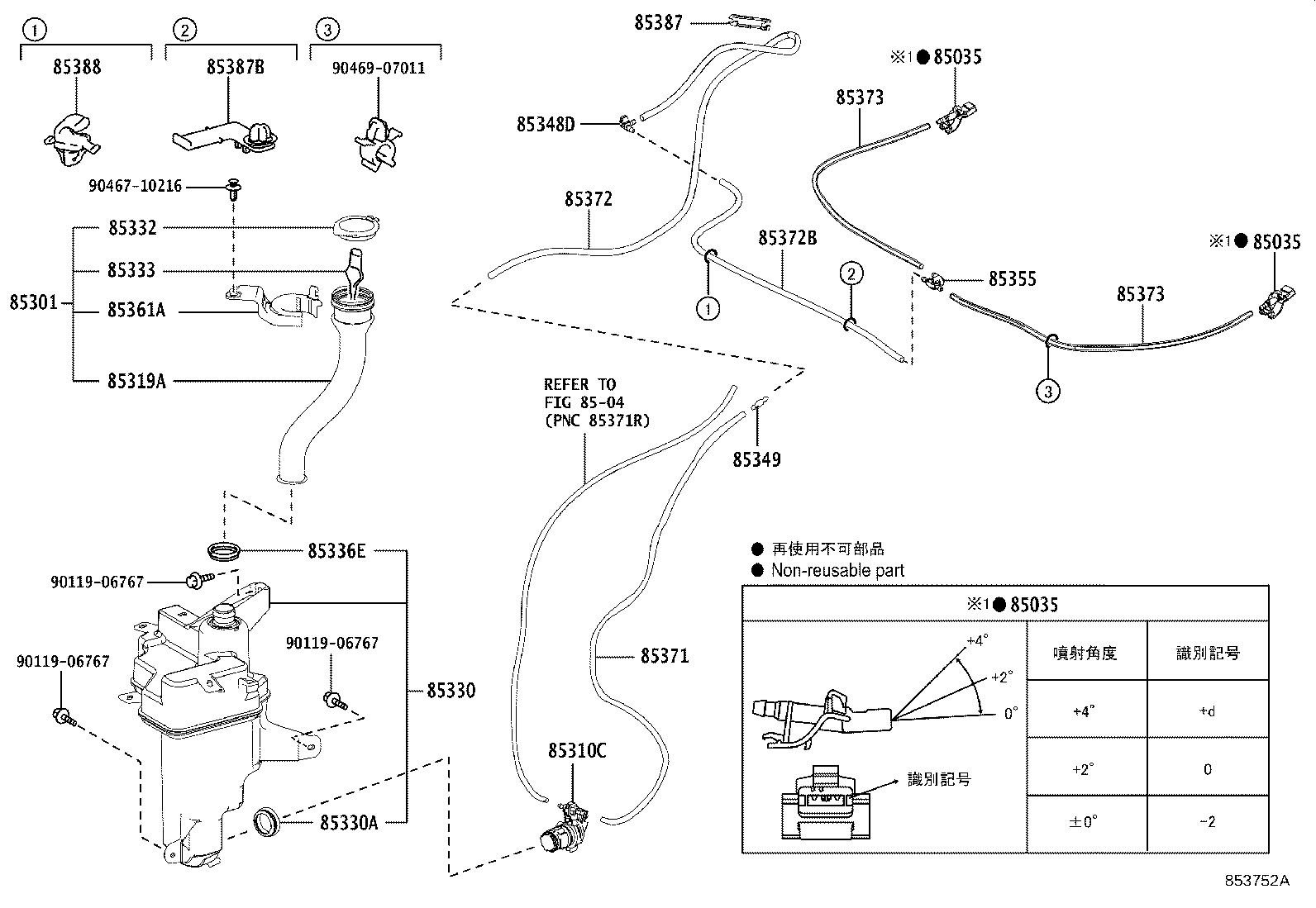

Click highlighted areas on diagram

diagram 85035 85035 85035 8504 85301 85310C 85319A 85330 85330A 85332 85333 85336E 85348D 85349 85355 85361A 85371 85372 85372B 85373 85373 85387 85387B 85388 9011906767 9011906767 9011906767 9046710216 9046907011
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

AVU65,ZSU6#

角度 0

 2
85381-12430

AVU65,ZSU6#

角度 +4

 2
85381-12420

AVU65,ZSU6#

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

AVU65,ZSU6#

角度 0

 2
85381-12430

AVU65,ZSU6#

角度 +4

 2
85381-12420

AVU65,ZSU6#

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

AVU65,ZSU6#

角度 0

 2
85381-12430

AVU65,ZSU6#

角度 +4

 2
85381-12420

AVU65,ZSU6#

角度 +2

 2
85301 - INLET SUB-ASSY, WASHER
85316-48230

AVU65,ZSU6#

 1
85310C - MOTOR & PUMP ASSY, WASHER
85330-42010

AVU65,ZSU6#

 1
85319A - HOSE, INLET
85319-42230

AVU65,ZSU6#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-42350

AVU65,ZSU6#

寒冷地仕様

 1
85315-42360

AVU65,ZSU6#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

AVU65,ZSU6#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-48250

AVU65,ZSU6#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-47020

AVU65,ZSU6#

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-42320

AVU65,ZSU6#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85375-60290

AVU65,ZSU6#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AVU65,ZSU6#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AVU65,ZSU6#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85337-42350

AVU65,ZSU6#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

AVU65,ZSU6#

*H,L=200

 1
90099-33080

AVU65,ZSU6#

*H,L=200,寒冷地仕様

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

AVU65,ZSU6#

*H,L=680

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33803

AVU65,ZSU6#

*H,L=1550

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AVU65,ZSU6#

*H,L=460

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AVU65,ZSU6#

*H,L=460

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-12840

AVU65,ZSU6#

 1
85387B - CLAMP, WASHER, NO.3
85371-48020

AVU65,ZSU6#

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85371-12040

AVU65,ZSU6#

 1
Common parts
90119-06767
90467-10216
90469-07011
Linked diagrams
8504
