ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

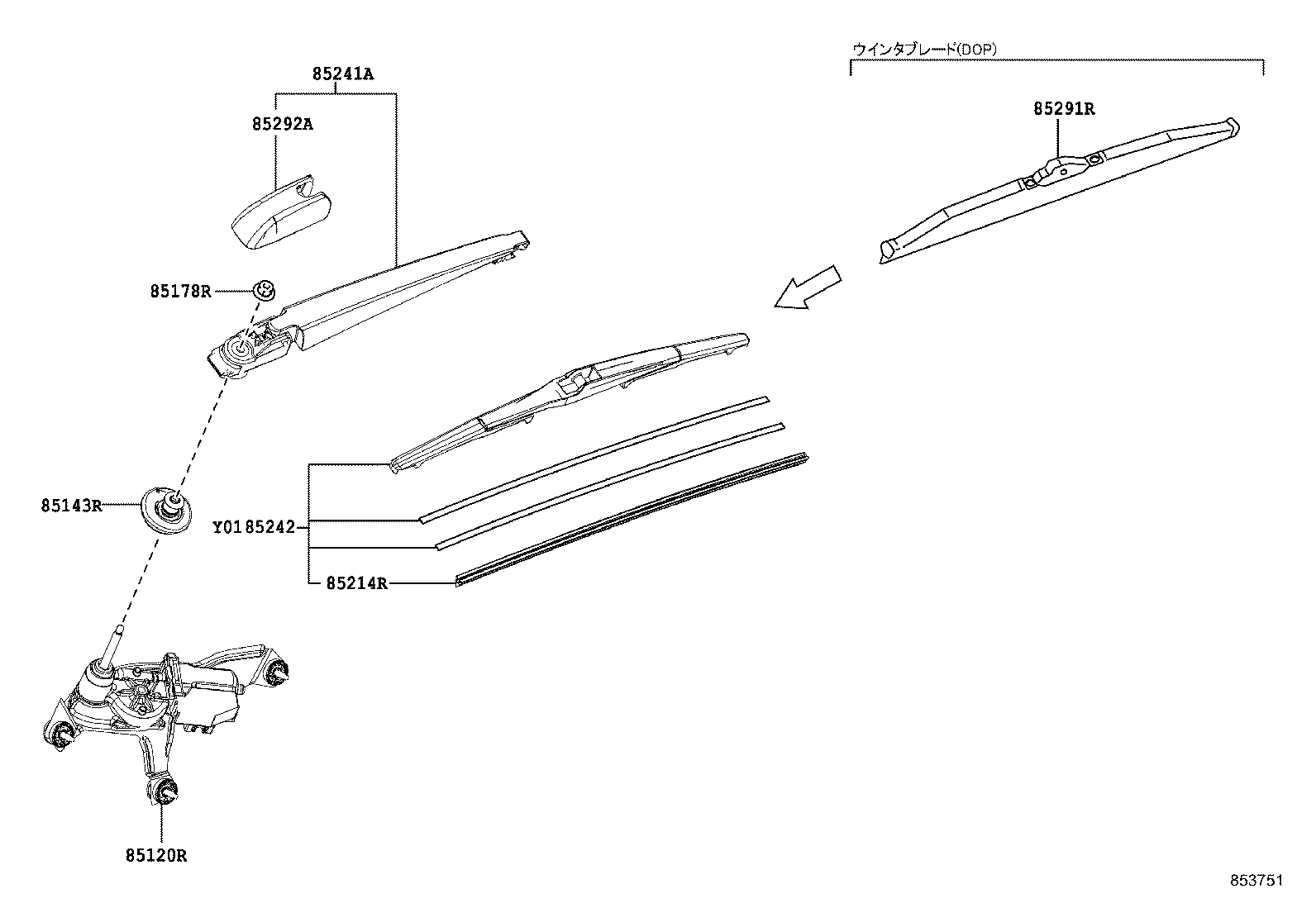

Click highlighted areas on diagram

diagram 85120R 85143R 85178R 85214R 85241A 85242 85291R 85292A
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85130-48060

AVU65,ZSU6#

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-60130

AVU65,ZSU6#

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

AVU65,ZSU6#

 1
85214R - RUBBER, REAR WIPER
85214-30280

AVU65,ZSU6#

 1
85241A - ARM, REAR WIPER
85241-12150

AVU65,ZSU6#

 1
85242 - BLADE, RR WIPER
85242-12130

AVU65,ZSU6#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-53040

AVU65,ZSU6#

寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-42010

AVU65,ZSU6#

 1
