ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

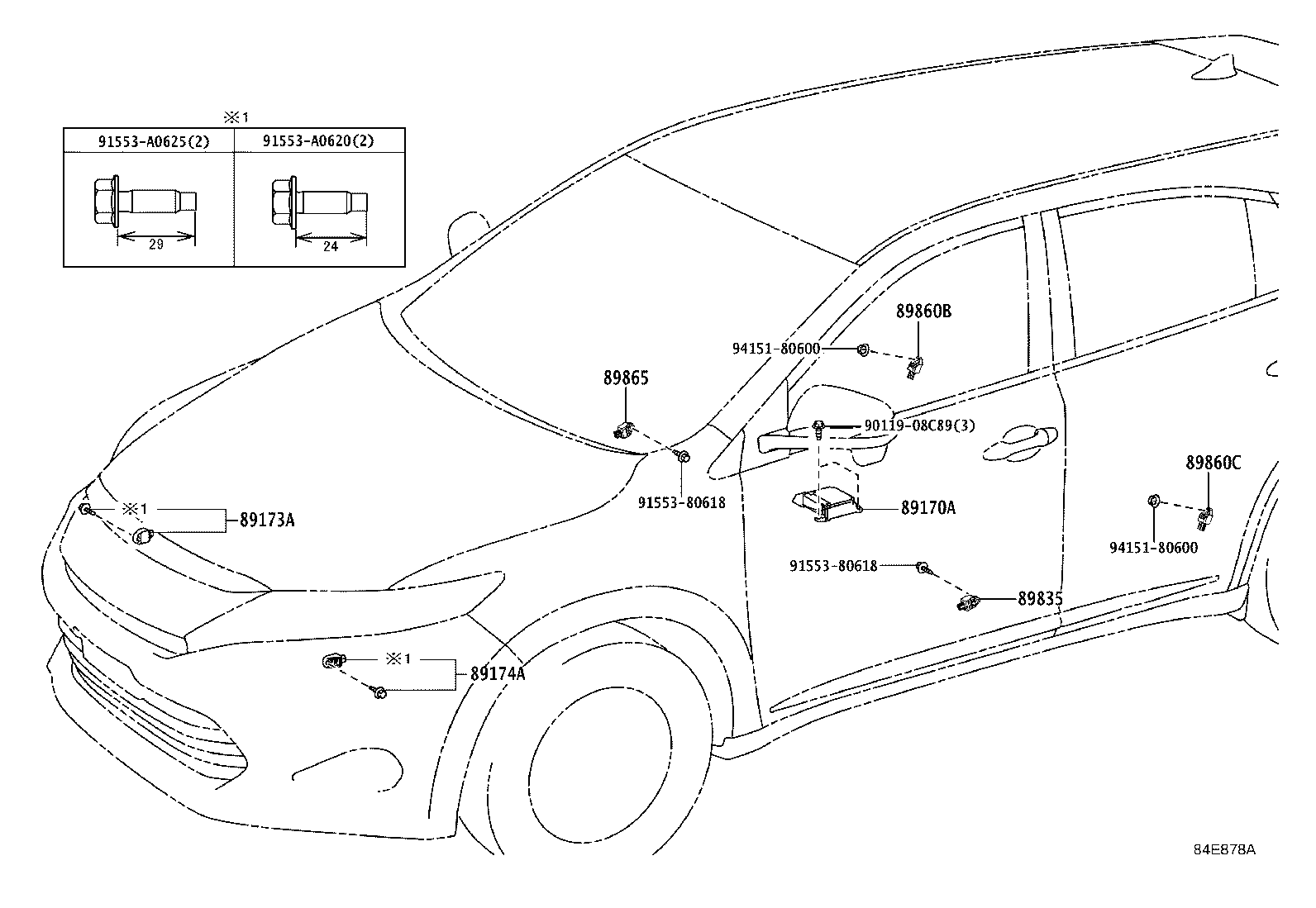

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 89835 89860B 89860C 89865 9011908C89 9155380618 9155380618 91553A0620 91553A0625 9415180600 9415180600
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-48840

AVU65,ZSU6#

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19465

AVU65,ZSU6#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-19465

AVU65,ZSU6#

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-33050

AVU65,ZSU6#

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-12030

AVU65,ZSU6#

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-12030

AVU65,ZSU6#

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-33050

AVU65,ZSU6#

 1
Common parts
90119-08C89
91553-80618
91553-A0620
91553-A0625
94151-80600
