ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

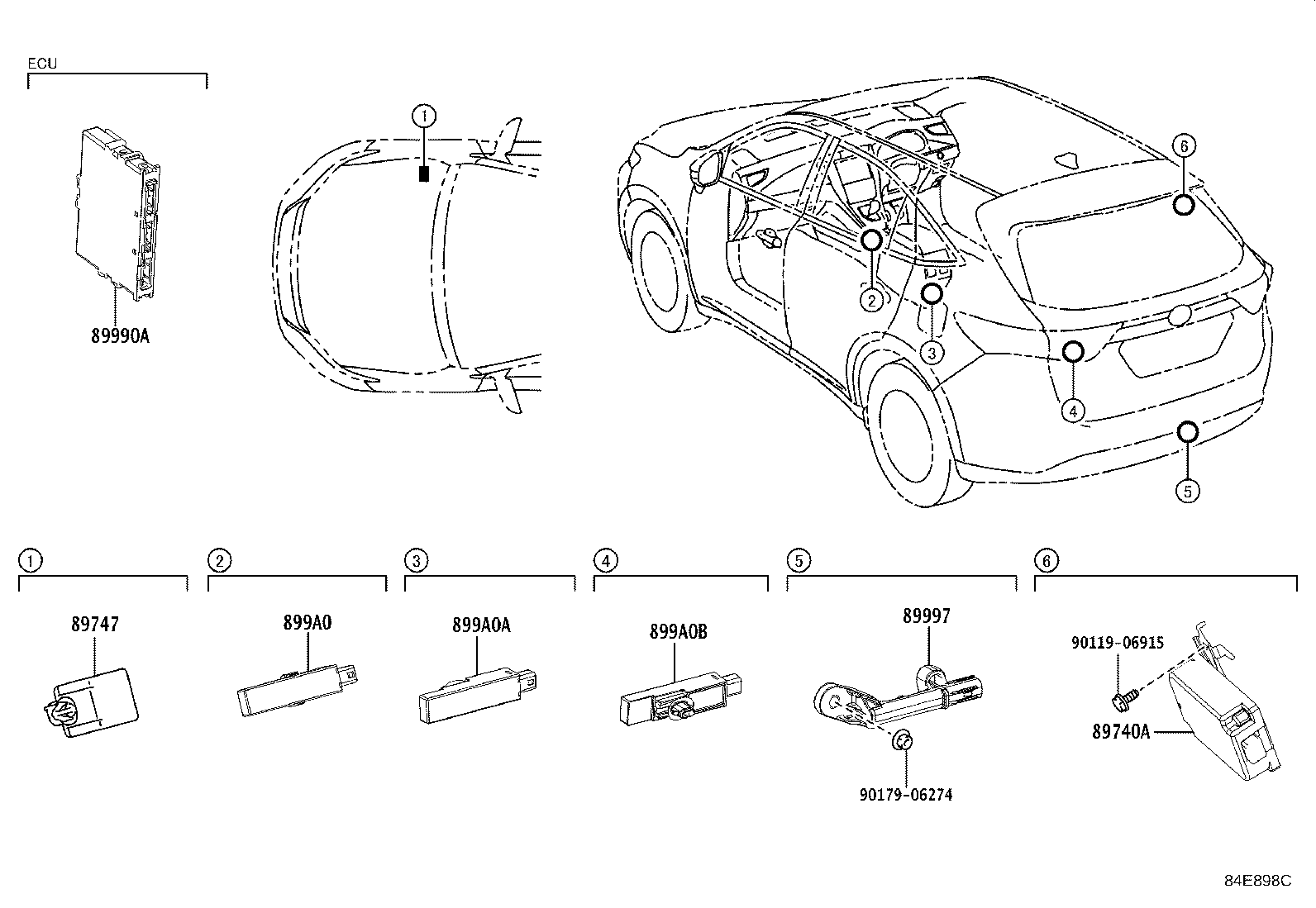

Click highlighted areas on diagram

diagram 89740A 89747 89990A 89997 899A0 899A0A 899A0B 9011906915 9017906274
Part # Description Qty Price
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-48230

AVU65,ZSU6#

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

AVU65,ZSU6#

 1
89990A - COMPUTER ASSY, SMART KEY
89990-48410

ZSU6#

品番ﾗﾍﾞﾙ=89990−48410

 1
89990-48411

ZSU6#

品番ﾗﾍﾞﾙ=89990−48411

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

AVU65,ZSU6#

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-60010

AVU65,ZSU6#

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-47010

AVU65,ZSU6#

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-47010

AVU65,ZSU6#

 1
Common parts
90119-06915
90179-06274
