ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

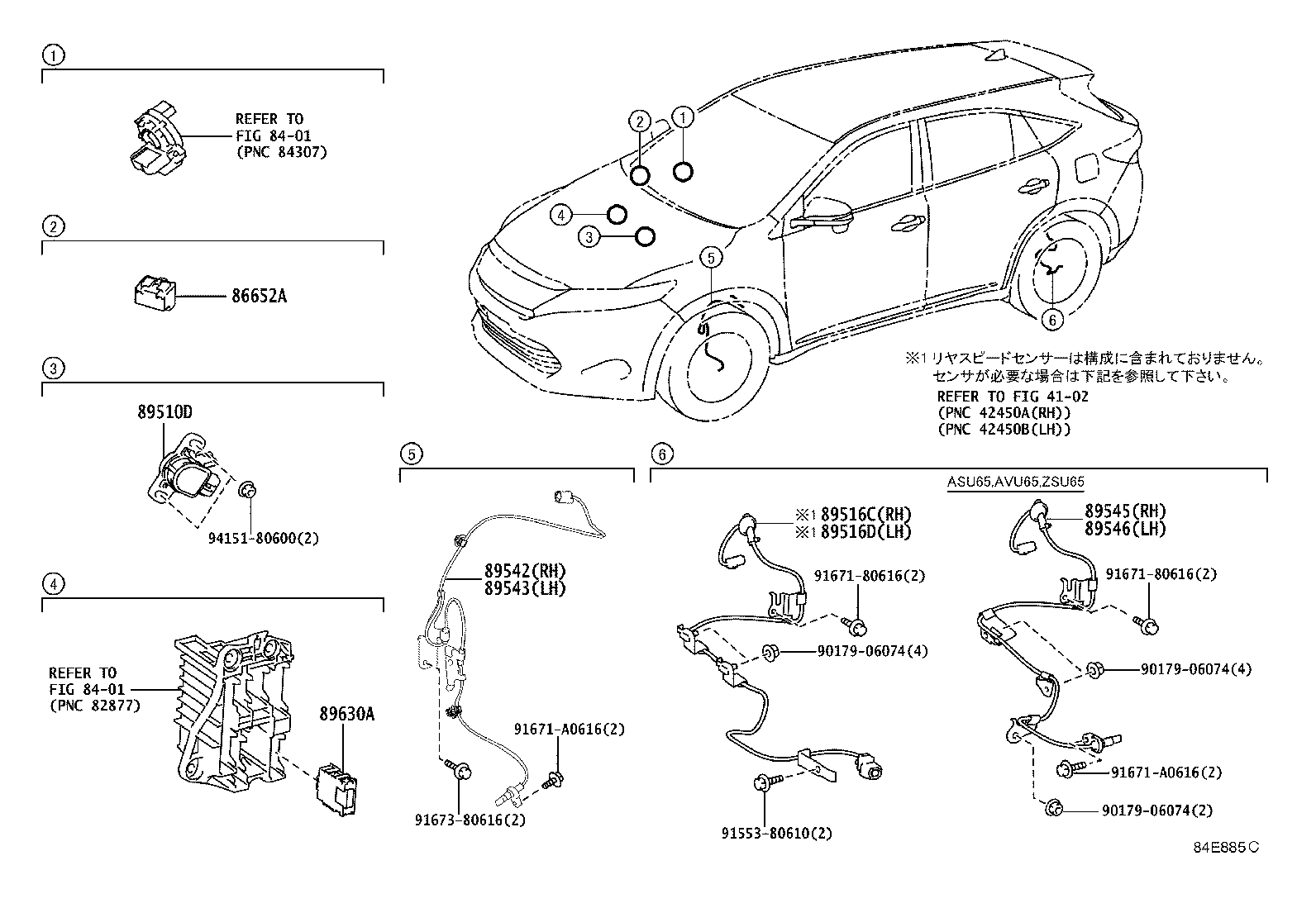

Click highlighted areas on diagram

diagram 4102 8401 8401 86652A 89510D 89516C 89516D 89542 89543 89545 89546 89630A 9017906074 9017906074 9017906074 9155380610 9167180616 9167180616 91671A0616 91671A0616 9167380616 9415180600
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010

AVU65,ZSU6#..ELEGC,PREM

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―)

 1
89542 - SENSOR, SPEED, FRONT RH
89542-42050

AVU65,ZSU6#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-42050

AVU65,ZSU6#

 1
89545 - SENSOR, SPEED, REAR RH
89545-48070

AVU65,ZSU65

 1
89546 - SENSOR, SPEED, REAR LH
89546-48070

AVU65,ZSU65

 1
89630A - COMPUTER ASSY, 4WD
89630-48040

ZSU65

 1
Common parts
90179-06074
91553-80610
91671-80616
91671-A0616
91673-80616
94151-80600
Linked diagrams
4102
8401
