ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid

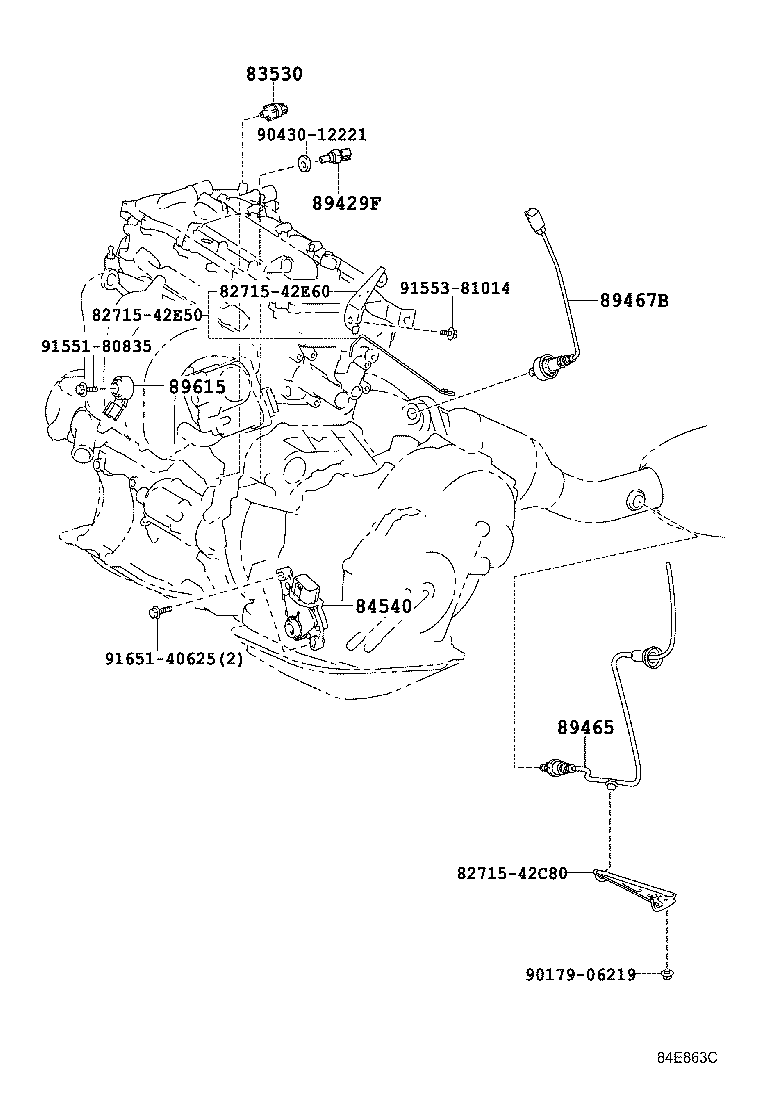

ILLUST NO. 1 OF 8(1312- )ZSU6#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
AVU65,ZSU6# DENSO |
1 | ||
| 83530-12050 |
ZSU6# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-28030 |
ZSU6# |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ZSU6# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-48340 |
ZSU6# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52060 |
ZSU6# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 82715-42C80 | ||||
| 82715-42E50 | ||||
| 82715-42E60 | ||||
| 90179-06219 | ||||
| 90430-12221 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40625 | ||||

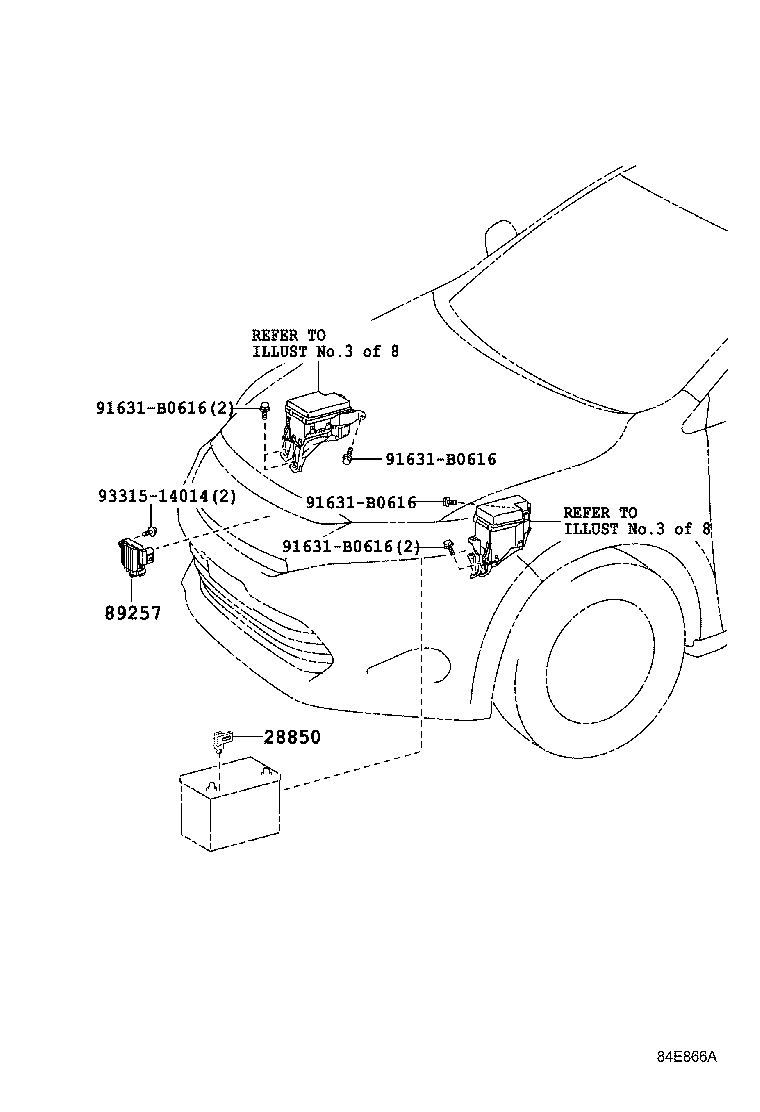

ILLUST NO. 2 OF 8(1312- )AVU65,ZSU6#
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
3ZRFAE..ZSU6# |
1 | ||
| Common parts | ||||
| 91631-B0616 | ||||
| 93315-14014 | ||||
ILLUST NO. 3 OF 8(1312- )ZSU6#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
3ZRFAE..ZSU6# |
2 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2ARFXE,3ZRFAE..AVU65,ZSU6# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2ARFXE,3ZRFAE..AVU65,ZSU6# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ZSU6#..PREM 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08294 |
ZSU6# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
AVU65,ZSU6# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08305 |
AVU65,ZSU6# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08296 |
ZSU6# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ZSU6#..PREM 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08294 |
ZSU6# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
AVU65,ZSU6# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08305 |
AVU65,ZSU6# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08296 |
ZSU6# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ZSU6#..PREM 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08294 |
ZSU6# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
AVU65,ZSU6# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08305 |
AVU65,ZSU6# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08296 |
ZSU6# 50A,ﾒｽ端子,赤 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AVU65,ZSU6# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09024 |
ZSU6# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
AVU65,ZSU6# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AVU65,ZSU6# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
AVU65,ZSU6# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AVU65,ZSU6# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
AVU65,ZSU6# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AVU65,ZSU6# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09024 |
ZSU6# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
AVU65,ZSU6# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AVU65,ZSU6# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
AVU65,ZSU6# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AVU65,ZSU6# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
AVU65,ZSU6# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AVU65,ZSU6# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09024 |
ZSU6# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
AVU65,ZSU6# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AVU65,ZSU6# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
AVU65,ZSU6# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AVU65,ZSU6# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
AVU65,ZSU6# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-42020 |
ZSU6# |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-42060 |
ZSU6# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42040 |
AVU65,ZSU6# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-48360 |
ZSU6# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-48340 |
ZSU6# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42100 |
AVU65,ZSU6# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42110 |
AVU65,ZSU6# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42020 |
ZSU6# |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42030 |
ZSU6# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85910 - RELAY ASSY, CIRCUIT OPENING | ||||
| 90987-02027 |
AVU65,ZSU6# |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 90987-02027 |
AVU65,ZSU6#..PREM “Advanced Package”*(A) |
1 | ||
| 90987-02027 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&寒冷地仕様 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
AVU65,ZSU6# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
AVU65,ZSU6# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
AVU65,ZSU6# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
AVU65,ZSU6# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZSU6# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZSU6# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZSU6# |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
ZSU6# ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100W) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AVU65,ZSU6# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
ZSU6# 寒冷地仕様 |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
ZSU6# 寒冷地仕様 |
1 | ||
| 87989A - RELAY, MIRROR NO.1 | ||||
| 90987-04004 |
AVU65,ZSU6# |
1 | ||
| 87989B - RELAY, MIRROR NO.2 | ||||
| 90987-04004 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90119-06651 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

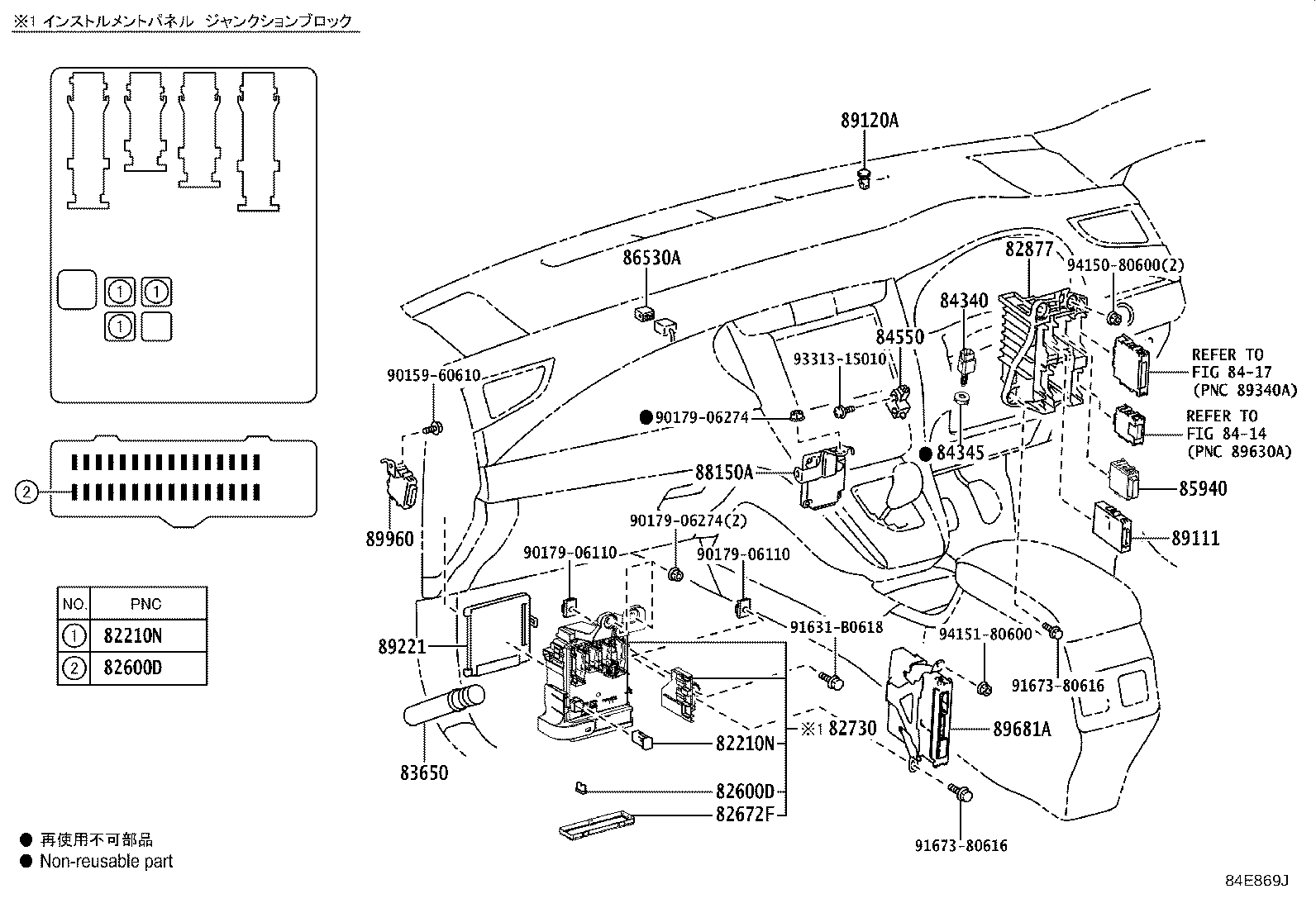

ILLUST NO. 4 OF 8(1312- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AVU65,ZSU6# 30A,ﾒｽ端子,桃 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AVU65,ZSU6# 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AVU65,ZSU6# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
AVU65,ZSU6# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09024 |
AVU65,ZSU6# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
AVU65,ZSU6# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
AVU65,ZSU6# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
AVU65,ZSU6# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AVU65,ZSU6# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
AVU65,ZSU6# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09024 |
AVU65,ZSU6# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
AVU65,ZSU6# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
AVU65,ZSU6# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
AVU65,ZSU6# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82672F - COVER, JUNCTION BLOCK | ||||
| 82672-48390 |
AVU65,ZSU6# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-48N01 |
AVU65,ZSU6# |
1 | ||
| 82730-48N00 |
AVU65,ZSU6# |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-48020 |
AVU65,ZSU6# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AVU65,ZSU6# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49065 |
AVU65,ZSU6#..ELEGC,PREM ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 84340-69115 |
AVU65,ZSU6# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AVU65,ZSU6# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-47010 |
AVU65,ZSU6# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-42030 |
AVU65,ZSU6#..PREM |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
AVU65,ZSU6# |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-48180 |
ZSU6#..ELEGC,PREM ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-48150 |
ZSU6#..PREM |
1 | ||
| 89111-48120 |
ZSU6#..PREM |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AVU65,ZSU6# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-48V80 |
AVU65,ZSU6#..PREM |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-48220 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90159-60610 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91631-B0618 | ||||
| 91673-80616 | ||||
| 93313-15010 | ||||
| 94150-80600 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
| 8417 | ||||

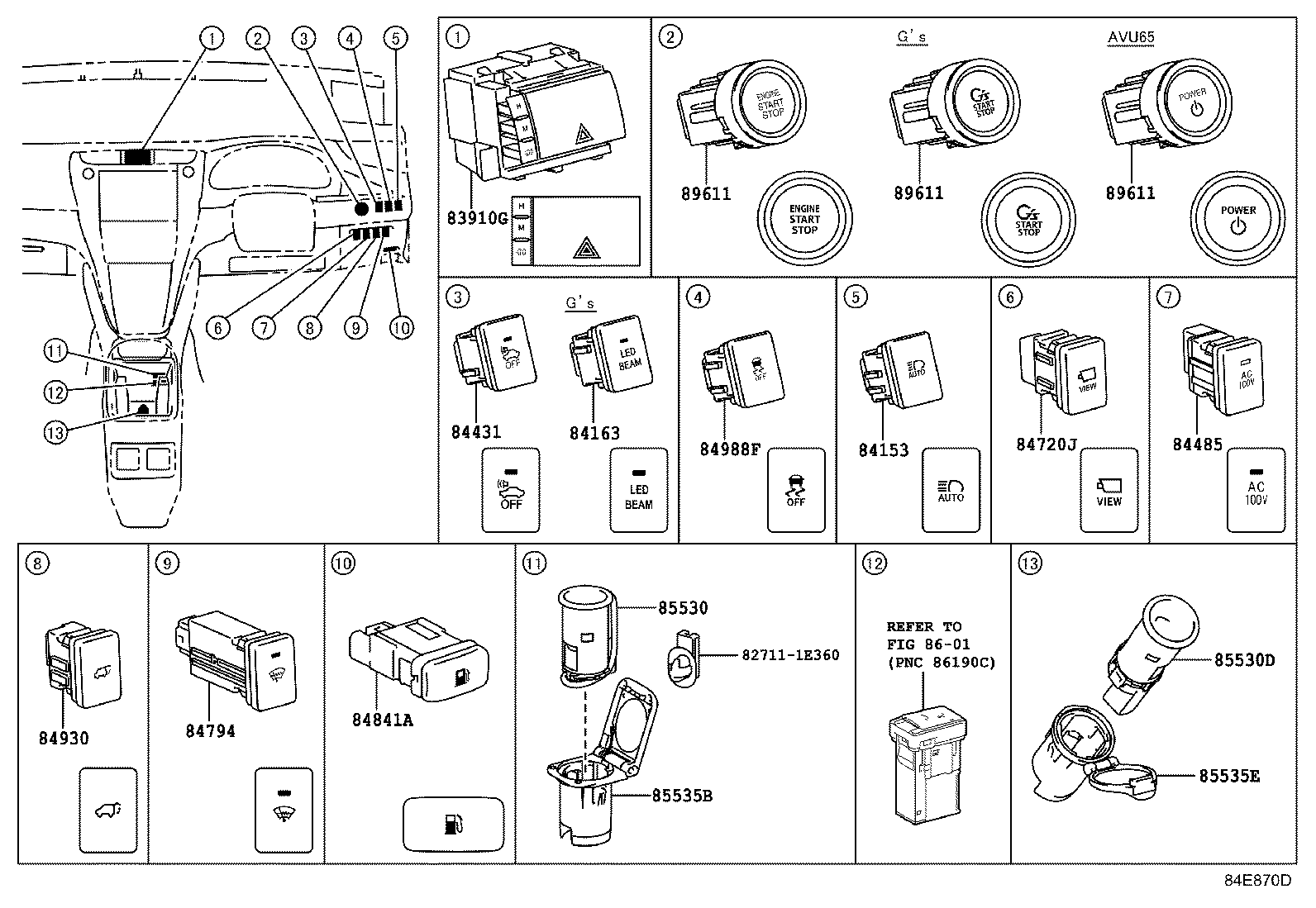

ILLUST NO. 5 OF 8(1312-1705)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-48091 |
AVU65,ZSU6# |
1 | ||
| 83910-48090 |
AVU65,ZSU6# |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-48011 |
AVU65,ZSU6#..PREM |
1 | ||
| 84153-48010 |
AVU65,ZSU6#..PREM |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84721-75040 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 84721-75041 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-42031 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 84794-42030 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-48010 |
AVU65,ZSU6# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-48100 |
AVU65,ZSU6#..PREM |
1 | ||
| 84930-48101 |
AVU65,ZSU6#..PREM |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-42081 |
AVU65,ZSU6# |
1 | ||
| 84988-42080 |
AVU65,ZSU6# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-60140 |
AVU65,ZSU6# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
AVU65,ZSU6# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-48150 |
AVU65,ZSU6# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
AVU65,ZSU6# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
ZSU6# |
1 | ||
| 89611-42012 |
ZSU6# |
1 | ||
| 89611-42010 |
ZSU6# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
ZSU6# |
1 | ||
| 89611-42012 |
ZSU6# |
1 | ||
| 89611-42010 |
ZSU6# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
ZSU6# |
1 | ||
| 89611-42012 |
ZSU6# |
1 | ||
| 89611-42010 |
ZSU6# |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| Linked diagrams | ||||
| 8601 | ||||

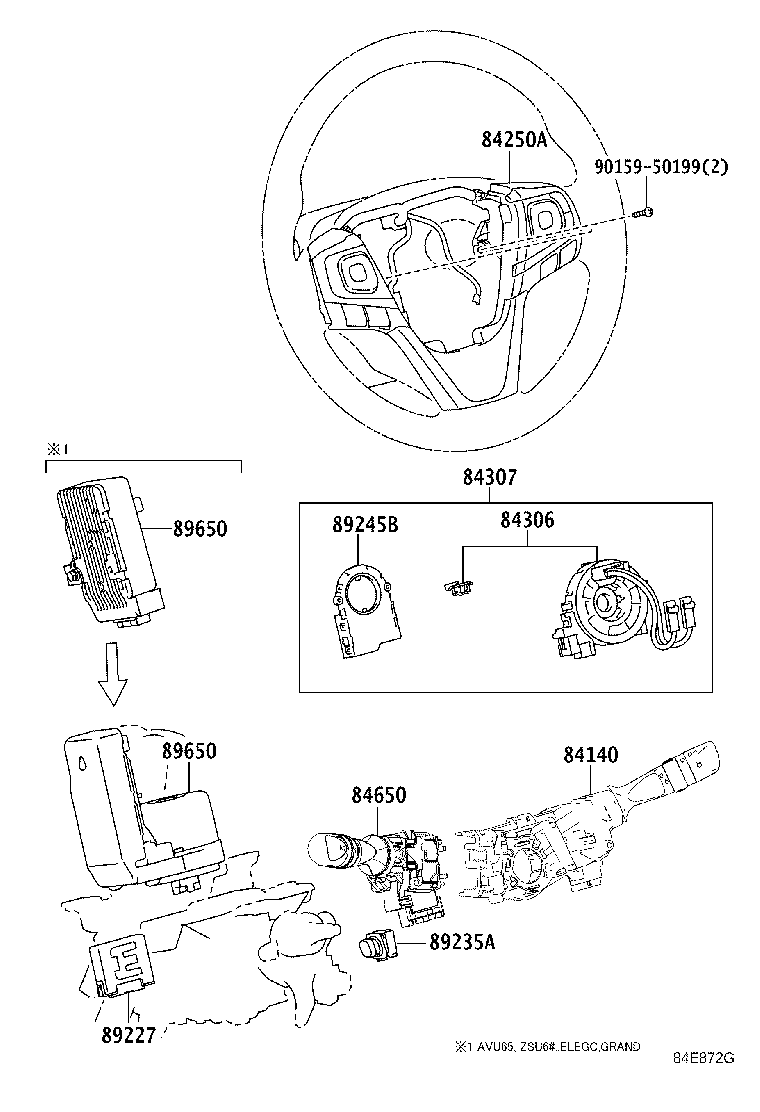

ILLUST NO. 6 OF 8(1312- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33230 |
AVU65,ZSU6# |
1 | ||
| 84140-33220 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 84140-33231 |
AVU65,ZSU6# |
1 | ||
| 84140-33221 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-48410 |
AVU65,ZSU6#..PREM |
1 | ||
| 84250-48400 |
AVU65,ZSU6#..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12010 |
AVU65,ZSU6# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-33090 |
AVU65,ZSU6# |
1 | ||
| 84307-30160 |
AVU65,ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12B10 |
AVU65,ZSU6#..PREM |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-48050 |
AVU65,ZSU6#..PREM |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
AVU65,ZSU6#..PREM |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-39055 |
AVU65,ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 89245-39025 |
AVU65,ZSU6# |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-48600 |
ZSU6#..PREM |
1 | ||
| 89650-48601 |
ZSU6#..PREM |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-48600 |
ZSU6#..PREM |
1 | ||
| 89650-48601 |
ZSU6#..PREM |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

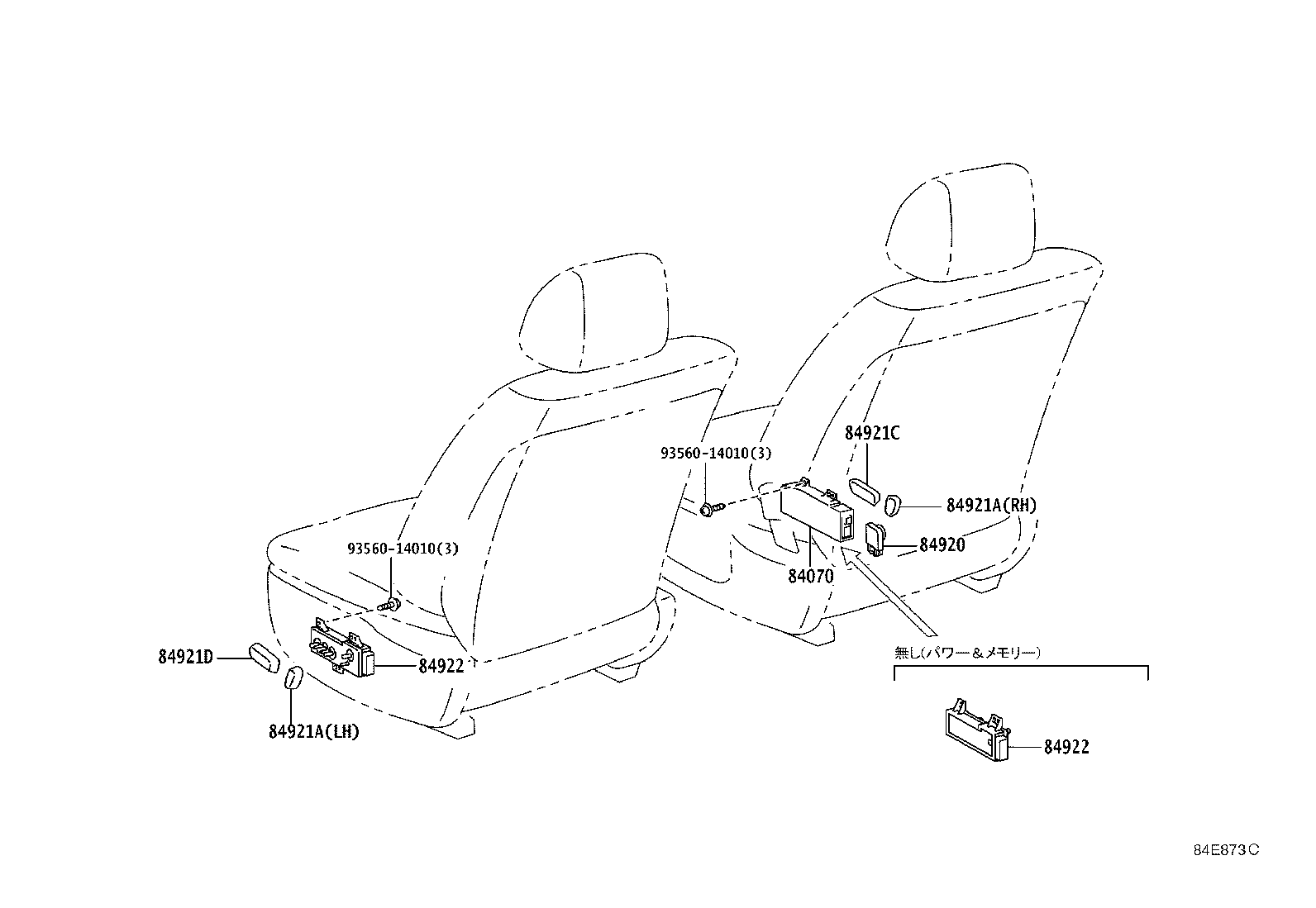

ILLUST NO. 7 OF 8(1312- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84070 - COMPUTER & SWITCH ASSY, POSITION CONTROL | ||||
| 84070-48061 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 84070-48061 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 84070-48060 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 84070-48061 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-22010C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 84920-22010C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 84920-60090C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 84920-22010C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-22080C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4#,右側 |
1 | ||
| 84921-60180C0 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4#,左側 |
1 | ||
| 84921-60170C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM0#,2#,4#,右側 |
1 | ||
| 84921-60170C0 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4#,右側 |
3 | ||
| 84921-22080C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4#,右側 |
3 | ||
| 84921-22090C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 84921-22080C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,右側 |
3 | ||
| 84921-22080C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,右側 |
3 | ||
| 84921-22090C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 84921-22090C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-22080C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4#,右側 |
1 | ||
| 84921-60180C0 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4#,左側 |
1 | ||
| 84921-60170C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM0#,2#,4#,右側 |
1 | ||
| 84921-60170C0 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4#,右側 |
3 | ||
| 84921-22080C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4#,右側 |
3 | ||
| 84921-22090C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 84921-22080C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,右側 |
3 | ||
| 84921-22080C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,右側 |
3 | ||
| 84921-22090C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 84921-22090C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,左側 |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-22070C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4#,ｽﾗｲﾄﾞ&ﾊﾞｰﾁｶﾙ用 |
1 | ||
| 84921-22070C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,ｽﾗｲﾄﾞ&ﾊﾞｰﾁｶﾙ用 |
1 | ||
| 84921-60150C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM0#,2#,4#,ｽﾗｲﾄﾞ&ﾊﾞｰﾁｶﾙ用 |
1 | ||
| 84921-22070C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,ｽﾗｲﾄﾞ&ﾊﾞｰﾁｶﾙ用 |
1 | ||
| 84921-22070C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4#,ｽﾗｲﾄﾞ&ﾊﾞｰﾁｶﾙ用 |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-22100C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921-22100C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921-60200C0 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84921-22100C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4#,ｽﾗｲﾄﾞ用 |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-60170 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 84922-60170 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 84922-60170 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 84922-60190 |
AVU65,ZSU6#..ELEGC,PREM 右側 |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-60170 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 84922-60170 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 84922-60170 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 84922-60190 |
AVU65,ZSU6#..ELEGC,PREM 右側 |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||

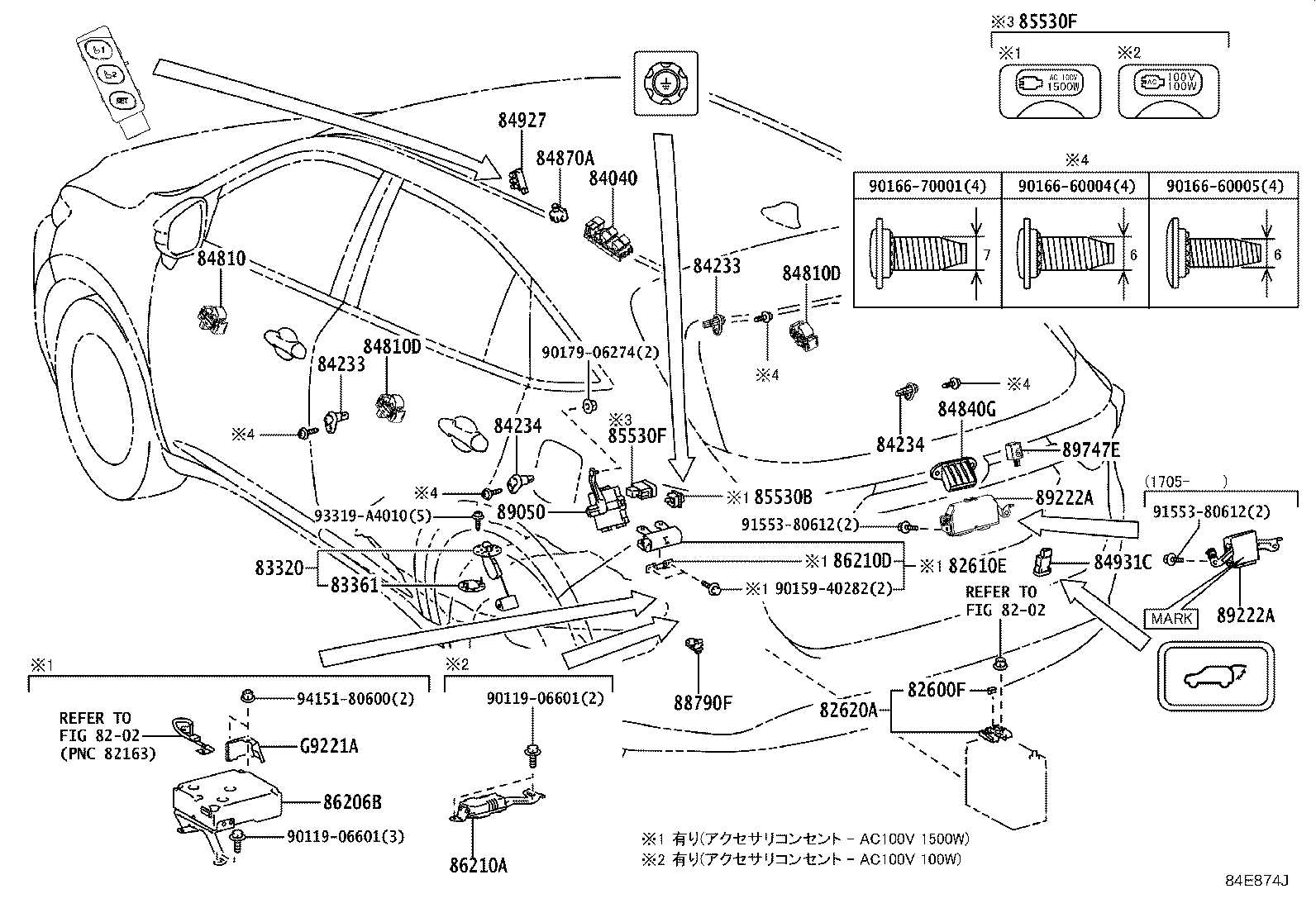

ILLUST NO. 8 OF 8(1312- )
DOOR,ROOF,FL00R & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49205 |
ZSU6# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AVU65,ZSU6# |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-48160 |
AVU65,ZSU6# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AVU65,ZSU6# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AVU65,ZSU6# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AVU65,ZSU6# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AVU65,ZSU6# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-48030 |
AVU65,ZSU6# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
AVU65,ZSU6# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
AVU65,ZSU6# |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-48020 |
AVU65,ZSU6# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-48030 |
AVU65,ZSU6# |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-48060C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 84927-48060C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 84927-48060C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-58010 |
AVU65,ZSU6#..PREM |
1 | ||
| 85530F - SOCKET ASSY, POWER OUTLET, REAR NO.2 | ||||
| 85530-58020C0 |
ZSU6#..PREM ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100W),BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 85530F - SOCKET ASSY, POWER OUTLET, REAR NO.2 | ||||
| 85530-58020C0 |
ZSU6#..PREM ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100W),BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-48120 |
ZSU6# ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100W) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-48102 |
AVU65,ZSU6#..PREM |
1 | ||
| 89222-48101 |
AVU65,ZSU6#..PREM |
1 | ||
| 89222-48100 |
AVU65,ZSU6#..PREM |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-48102 |
AVU65,ZSU6#..PREM |
1 | ||
| 89222-48101 |
AVU65,ZSU6#..PREM |
1 | ||
| 89222-48100 |
AVU65,ZSU6#..PREM |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
AVU65,ZSU6#..PREM |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90159-40282 | ||||
| 90166-60004 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90179-06274 | ||||
| 91553-80612 | ||||
| 93319-A4010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
