ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

Click highlighted areas on diagram

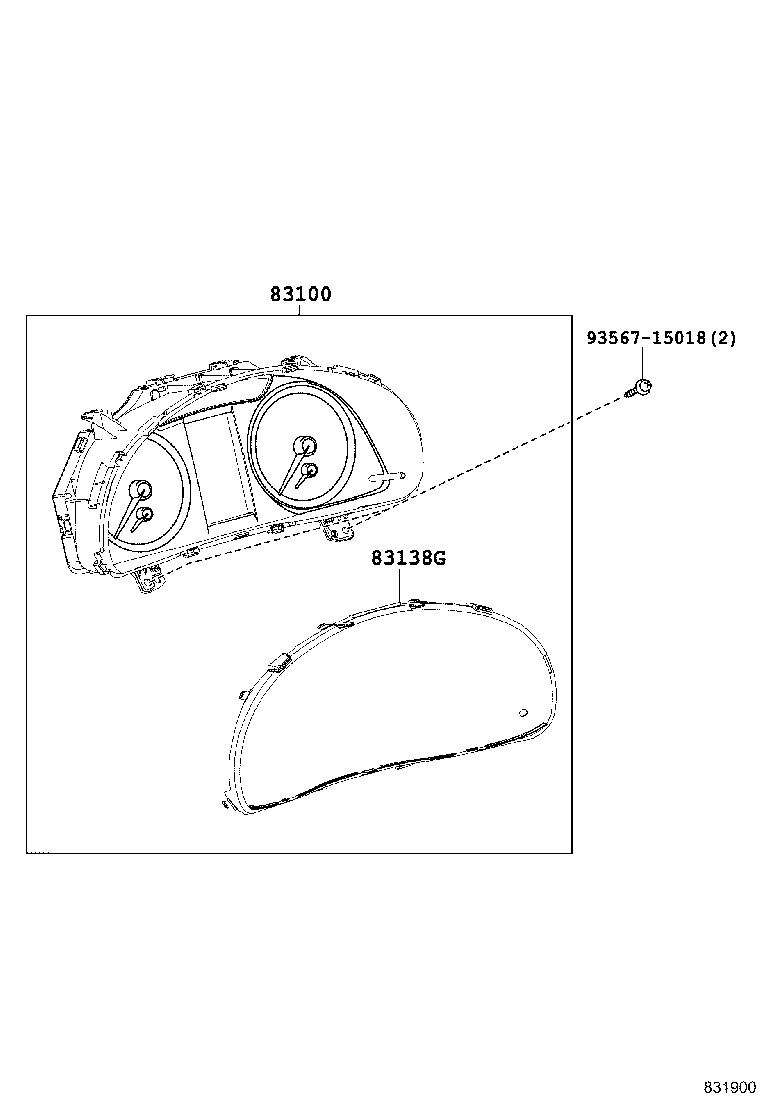

diagram 83100 83138G 9356715018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-48P90

ZSU6#

DENSO

 1
83138G - GLASS, COMBINATION METER
83852-48P90

AVU65,ZSU6#

 1
Common parts
93567-15018
