ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid

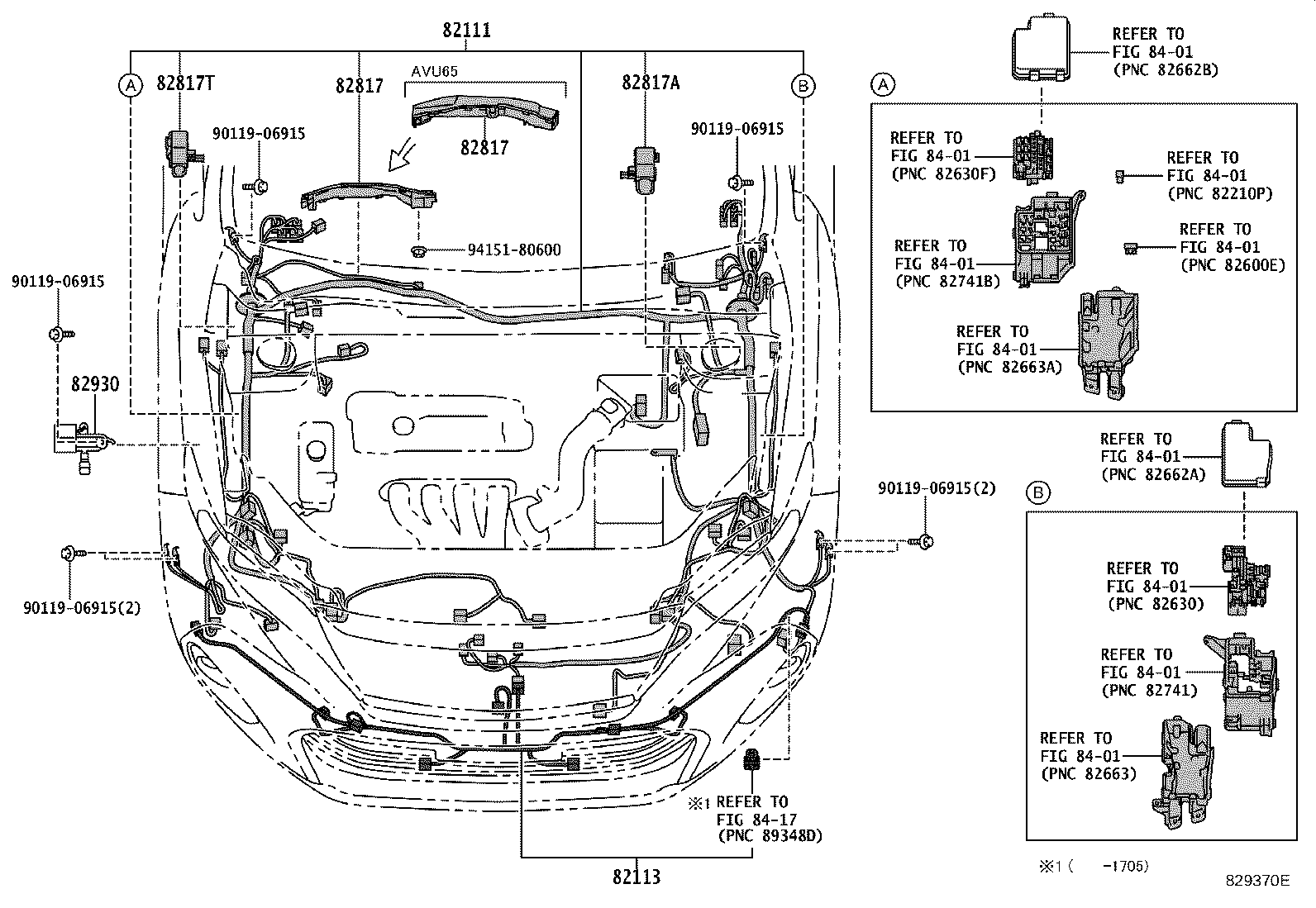

ILLUST NO. 1 OF11(1312- )
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-48Y90 |
ZSU6#..PREM |
1 | ||
| 82111-48Z10 |
ZSU6#..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82111-48Z00 |
ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82111-48Z20 |
ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-48060 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82113-48050 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-42470 |
ZSU6# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-42470 |
ZSU6# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-42750 |
AVU65,ZSU6# |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-42760 |
AVU65,ZSU6# |
1 | ||
| 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 | ||||
| 82930-48040 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||

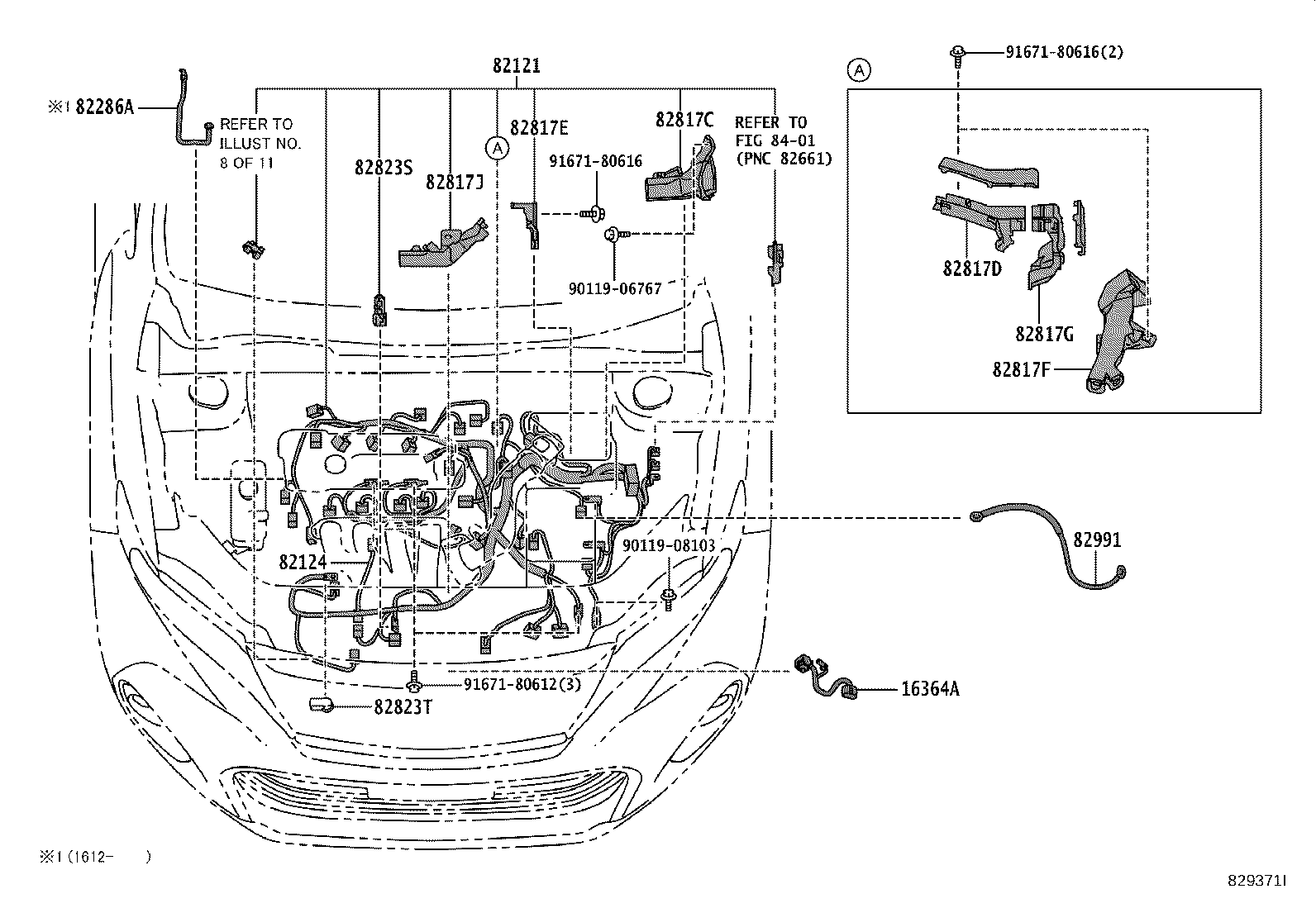

ILLUST NO. 2 OF11(1312- )ZSU6#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-48570 |
ZSU6# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZSU6# |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-42020 |
ZSU6# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-42520 |
ZSU6# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-42610 |
ZSU6# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-48C80 |
ZSU6# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-48E30 |
ZSU6# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-48F20 |
ZSU6# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-48K90 |
ZSU6# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12120 |
ZSU6# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZSU6# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-42060 |
ZSU6# |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90119-08103 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

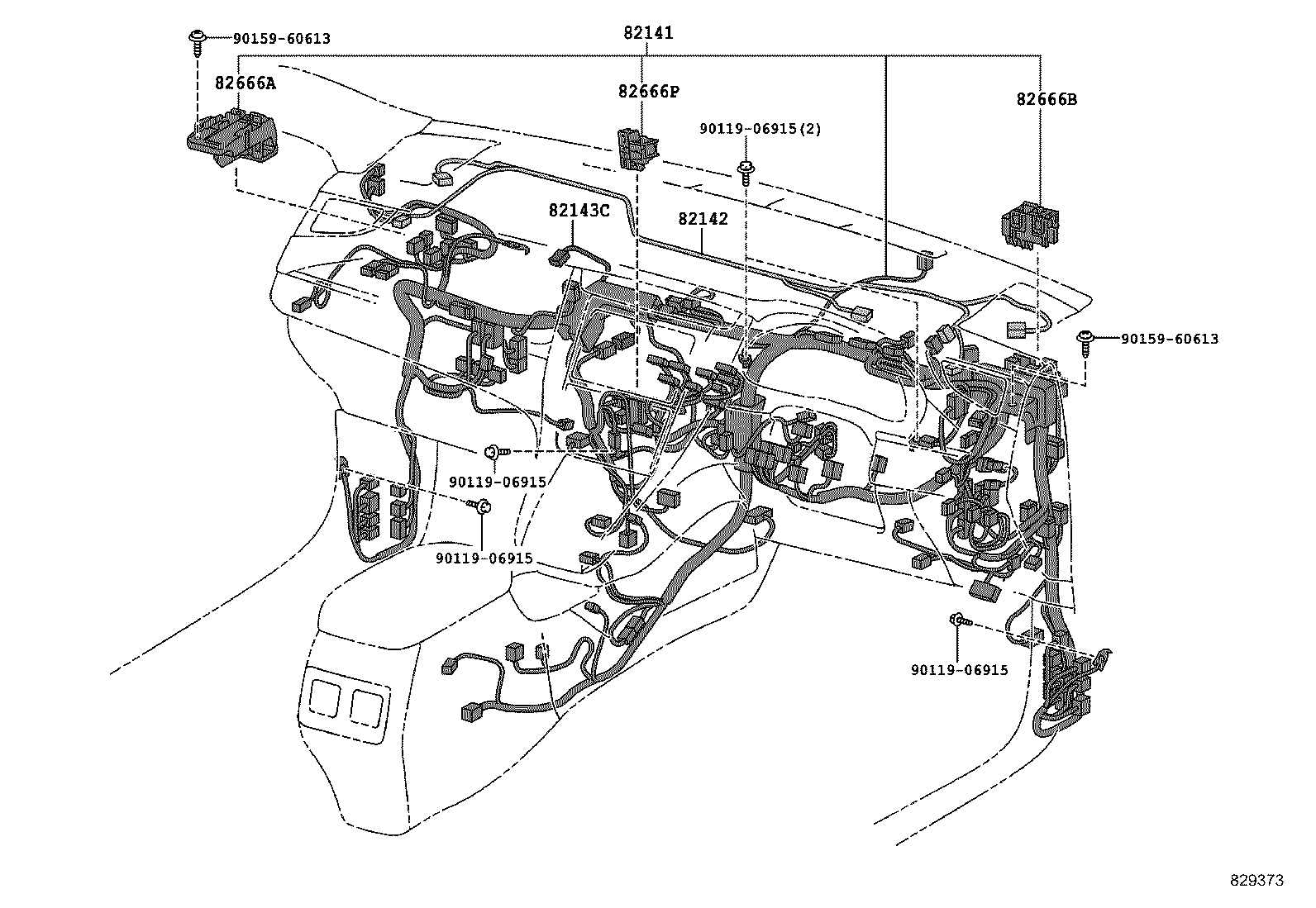

ILLUST NO. 3 OF11(1312- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-4D500 |
ZSU6#..PREM |
1 | ||
| 82141-4D520 |
ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-48G70 |
AVU65,ZSU6#..PREM |
1 | ||
| 82142-48G80 |
AVU65,ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82140-48020 |
AVU65,ZSU6# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-42360 |
AVU65,ZSU6# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-42370 |
AVU65,ZSU6# |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-42340 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60613 | ||||
ILLUST NO. 4 OF11(1312- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-48780 |
AVU65,ZSU6#..PREM *576&寒冷地仕様&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..PREM *576&寒冷地仕様&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82151-48780 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82151-48770 |
AVU65,ZSU6# |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｼｰﾄ表皮−本革 |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..PREM *577&寒冷地仕様&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..PREM *577&寒冷地仕様&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82151-48780 |
AVU65,ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-48050 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 82155-48060 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 82155-48060 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82155-48060 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-48790 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82152-48790 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 82152-48780 |
AVU65,ZSU6# |
1 | ||
| 82152-48790 |
AVU65,ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-48050 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-48230 |
AVU65,ZSU6# |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-48010 |
AVU65,ZSU6# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-48140 |
AVU65,ZSU6# |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82157-48010 |
AVU65,ZSU6# |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-48180 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82181-48180 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 82181-48180 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-48060 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82182-48080 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 82182-48070 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-48030 |
AVU65,ZSU6# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-48720 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82184-48700 |
AVU65,ZSU6#..PREM |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

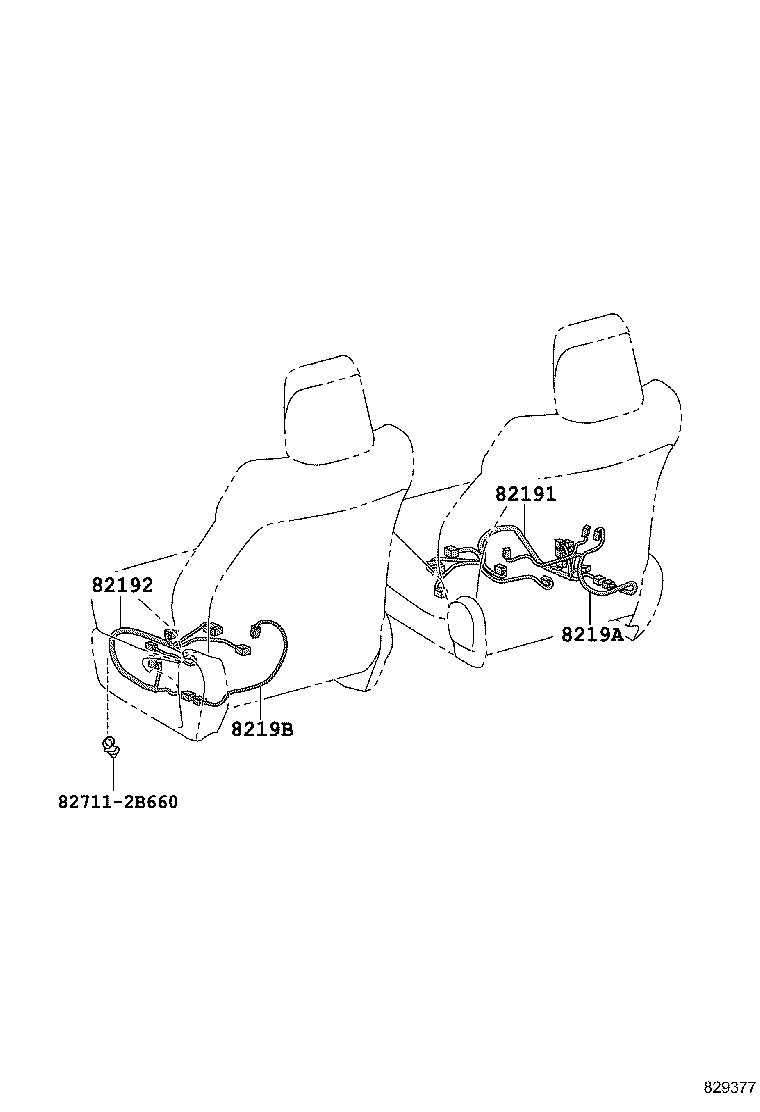

ILLUST NO. 7 OF11(1312- )
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-48630 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82191-48580 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 82191-48630 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82191-48630 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-48520 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82192-48520 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82192-48520 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-48020 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 8219A-42010 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 8219A-48020 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 8219A-48020 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-48010 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 8219B-48010 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 8219B-48010 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||

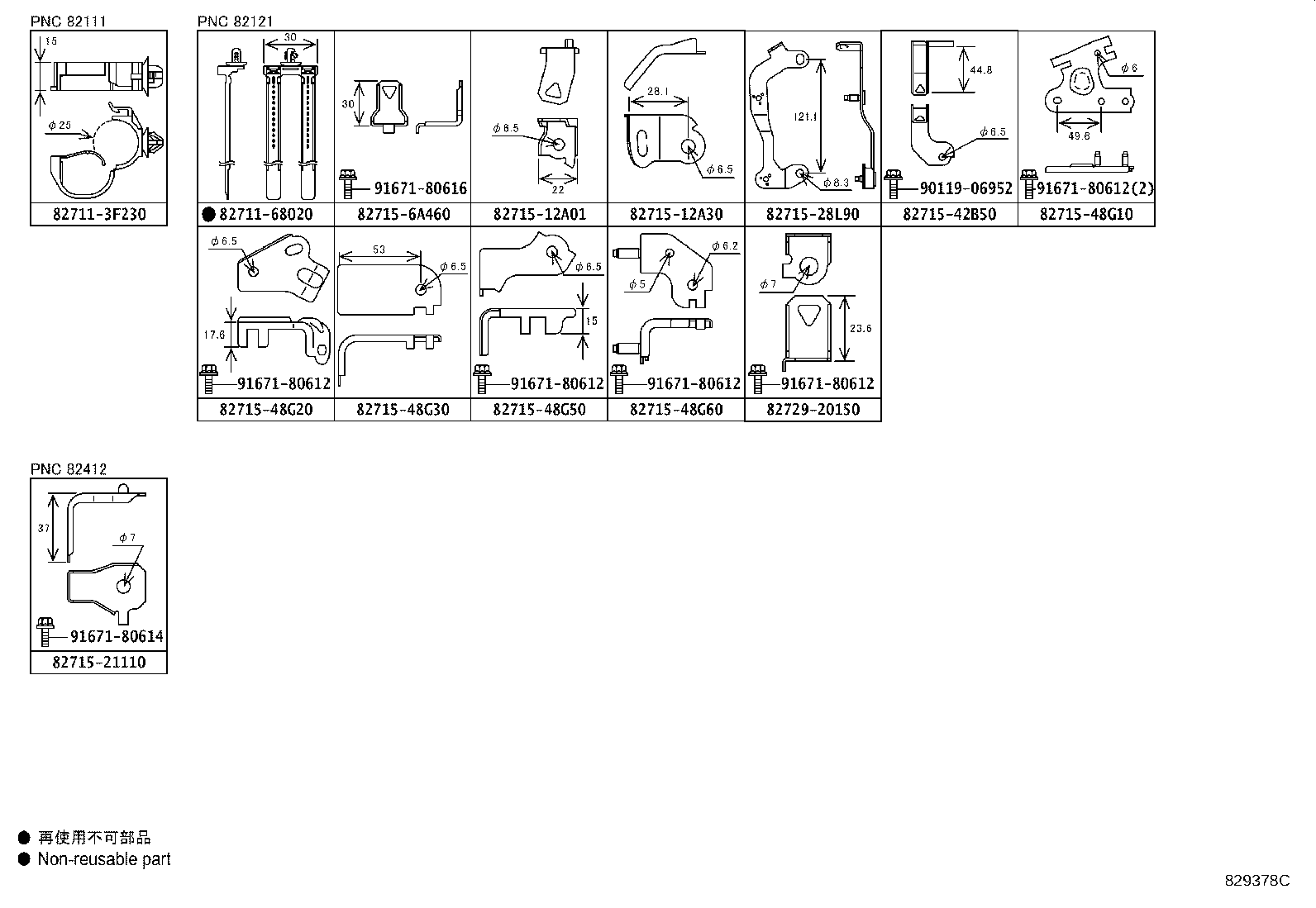

ILLUST NO. 8 OF11(1312- )ZSU6#
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3F230 | ||||
| 82711-68020 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-21110 | ||||
| 82715-28L90 | ||||
| 82715-42B50 | ||||
| 82715-48G10 | ||||
| 82715-48G20 | ||||
| 82715-48G30 | ||||
| 82715-48G50 | ||||
| 82715-48G60 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-06952 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||

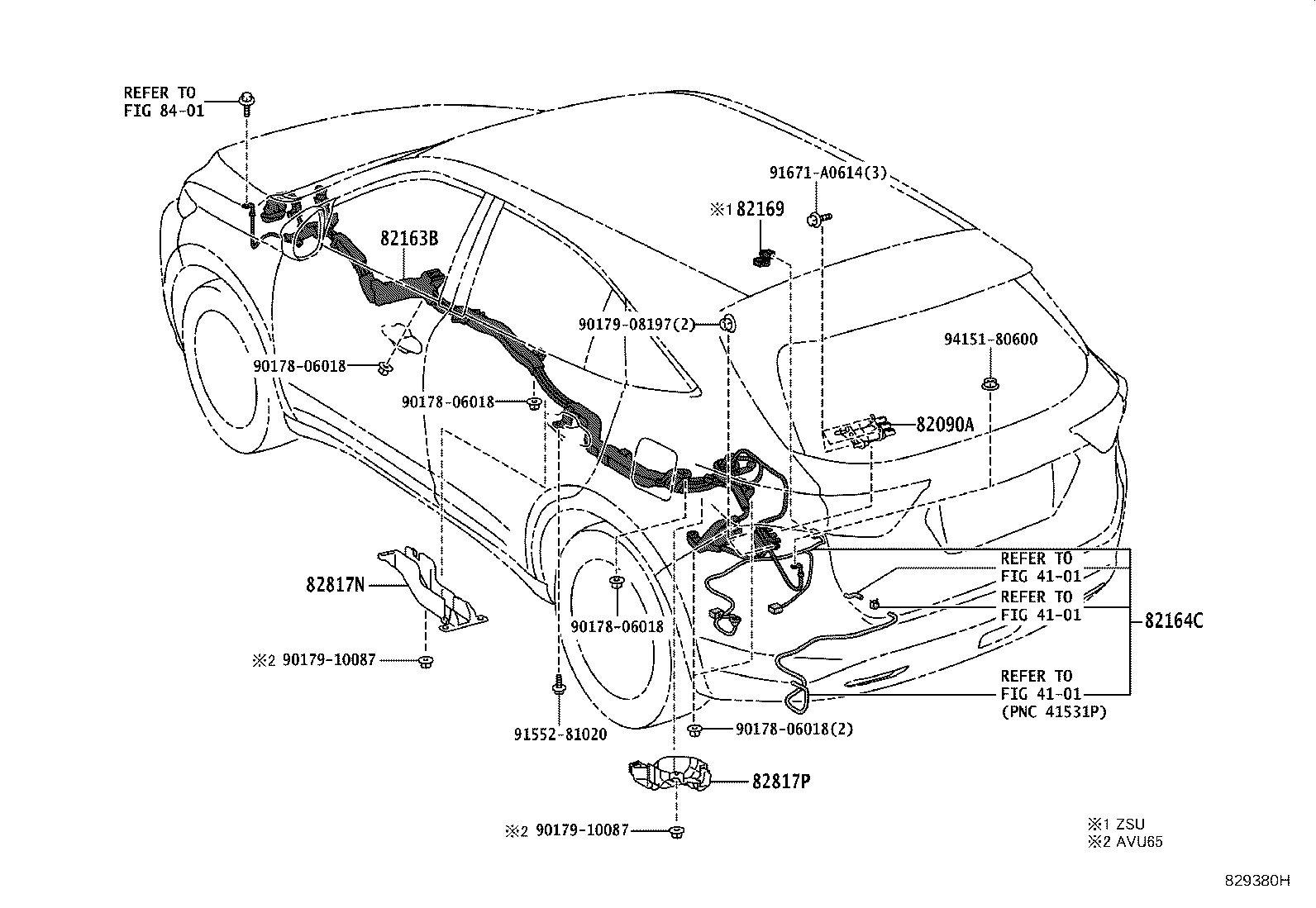

ILLUST NO. 6 OF11(1312-1401)
ｺｳｱﾂｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-42050 |
ZSU65 |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-42020 |
ZSU65 |
1 | ||
| Common parts | ||||
| 90178-06018 | ||||
| 90179-08197 | ||||
| 90179-10087 | ||||
| 91552-81020 | ||||
| 91671-A0614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8401 | ||||

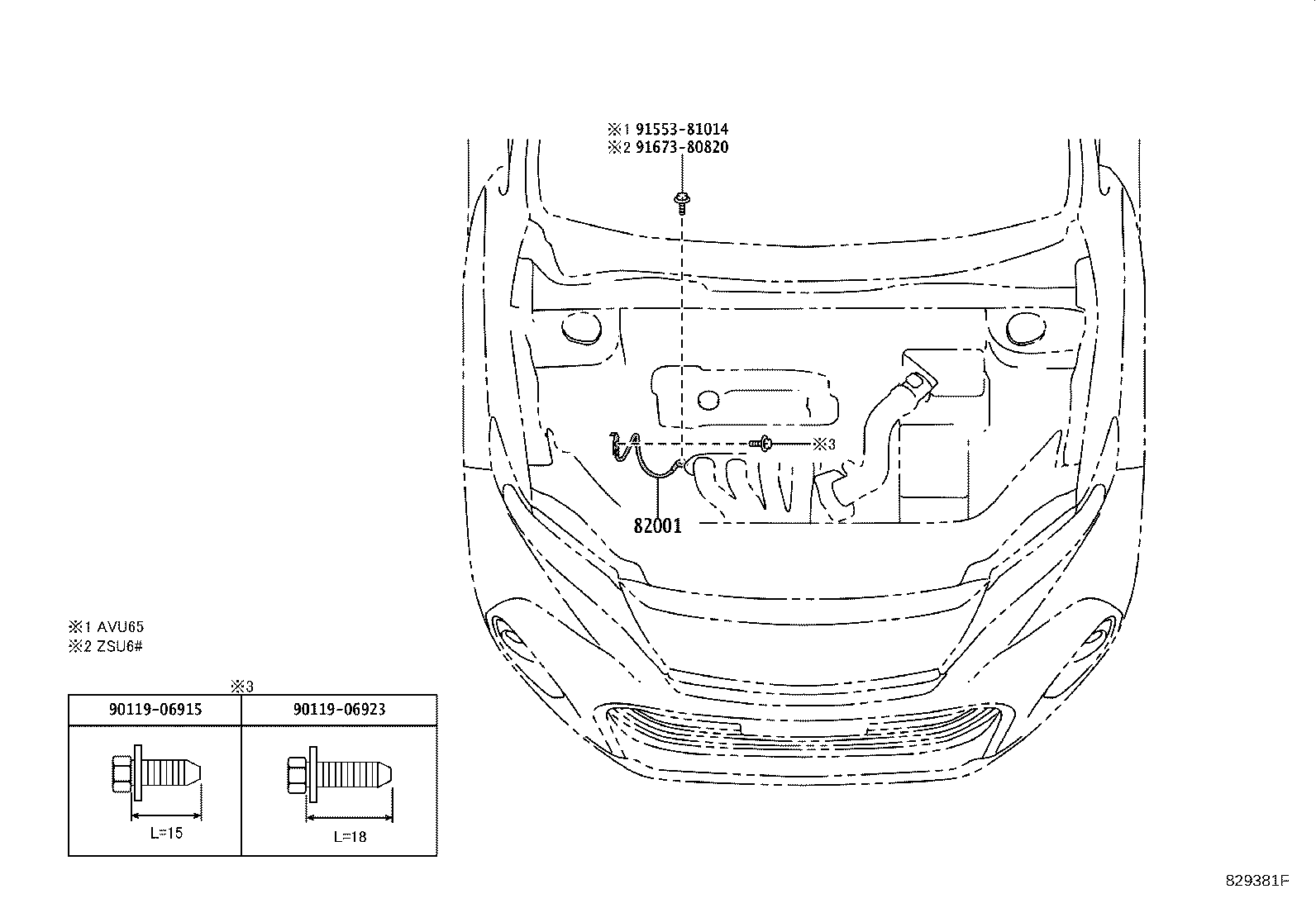

ILLUST NO. 9 OF11(1312- )
ｹｰﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07466 |
ZSU6# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 91553-81014 | ||||
| 91673-80820 | ||||

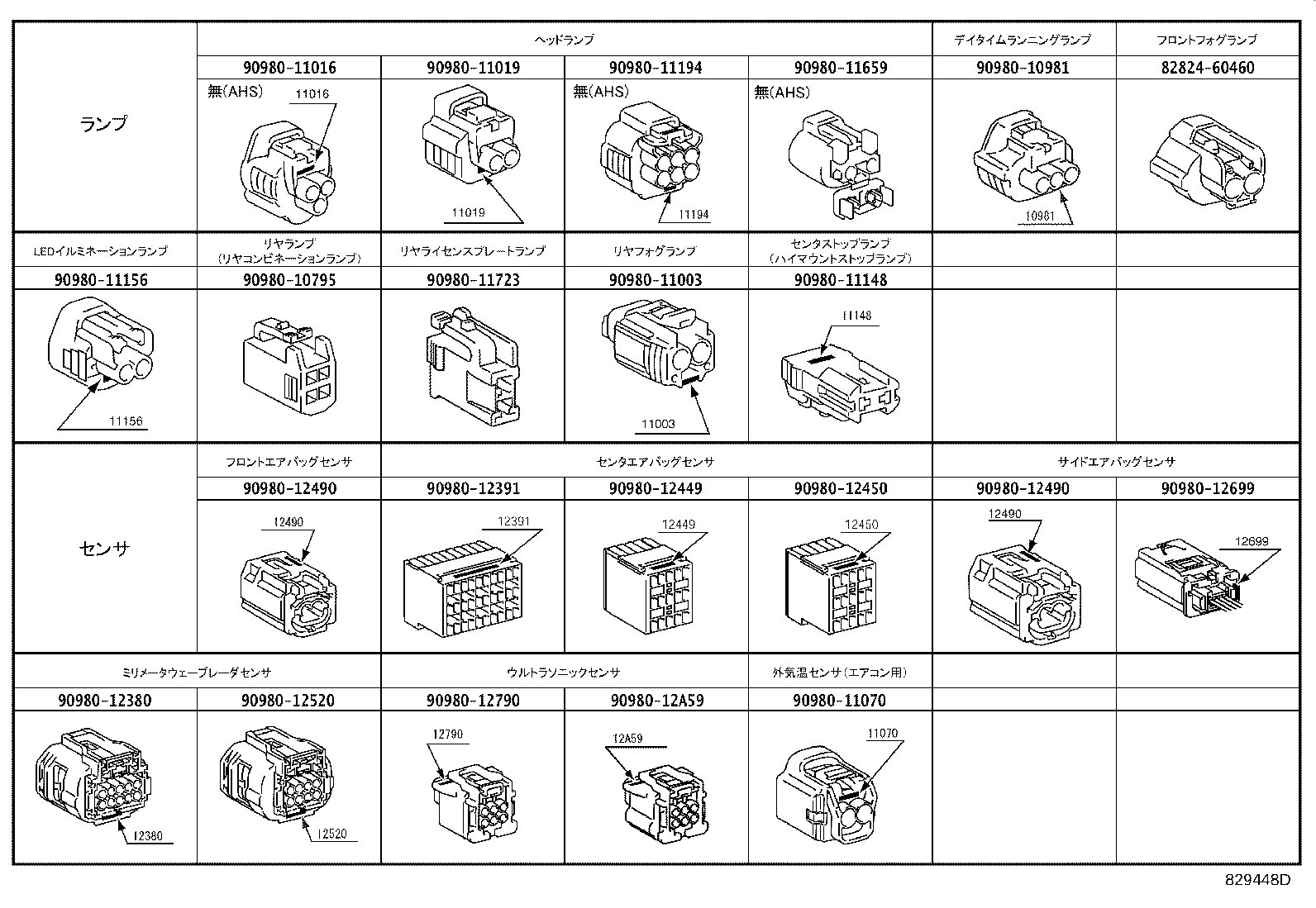

ILLUST NO.10 OF11(1312- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10981 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11659 | ||||
| 90980-11723 | ||||
| 90980-12380 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||

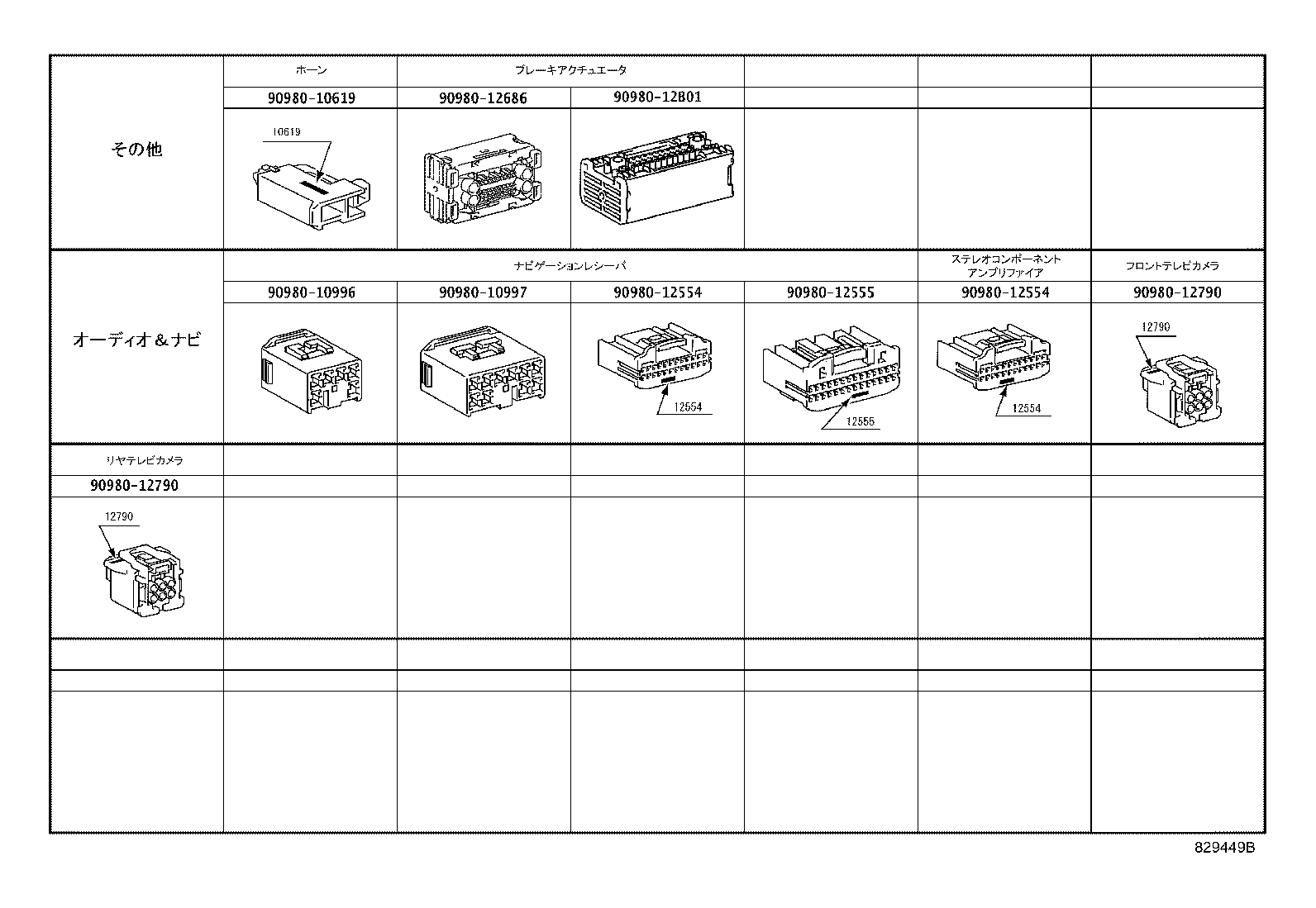

ILLUST NO.11 OF11(1312- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12686 | ||||
| 90980-12790 | ||||
| 90980-12B01 | ||||

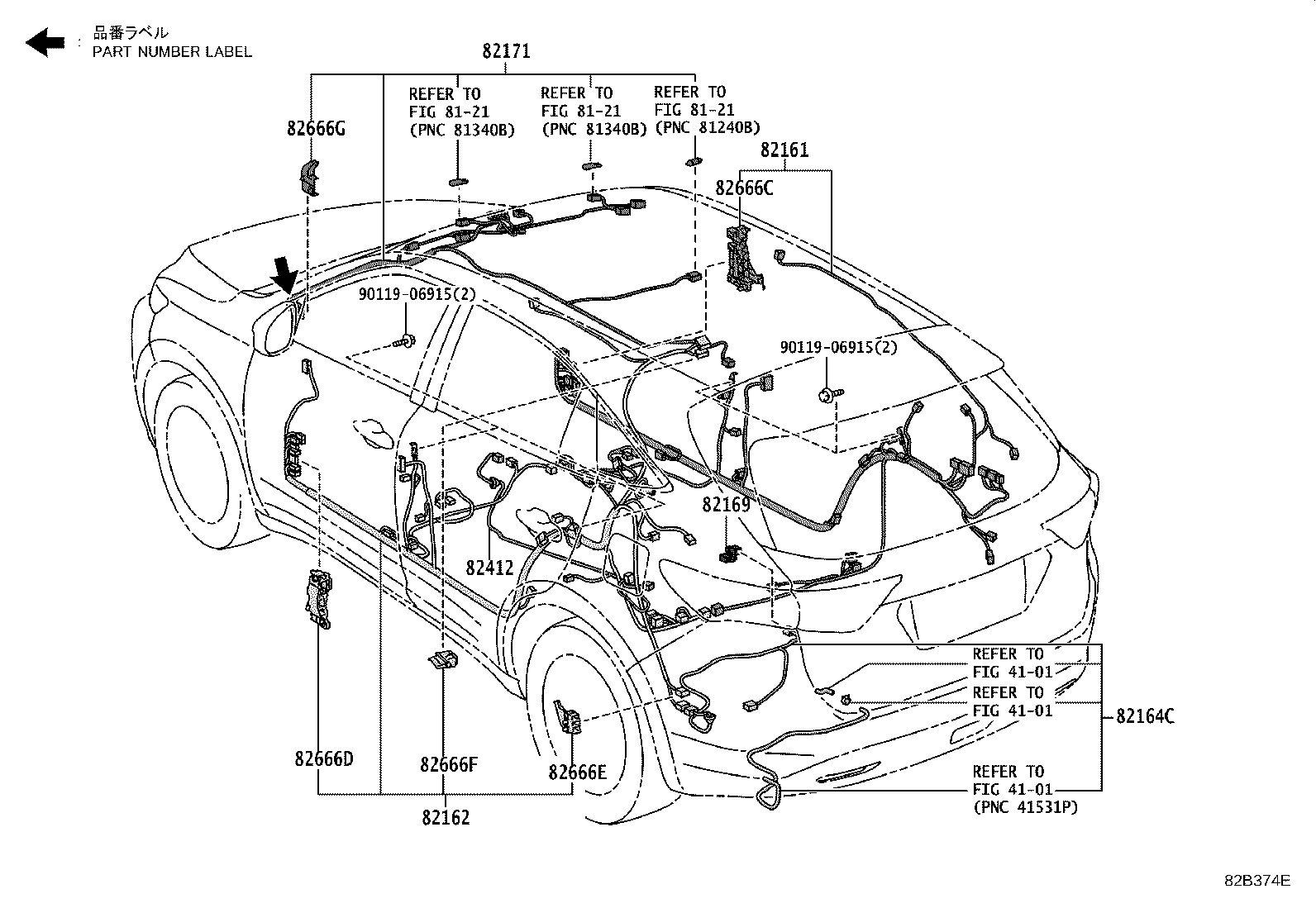

ILLUST NO. 5 OF11(1312-1705)ZSU6#
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-4D620 |
ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82161-4D590 |
ZSU6#..PREM |
1 | ||
| 82161-4D610 |
ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-48N10 |
ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82162-48N00 |
ZSU65;ZSU60..PREM |
1 | ||
| 82162-48N10 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 82162-48N10 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-42050 |
ZSU65 |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-42020 |
ZSU65 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-48E70 |
AVU65,ZSU6#..PREM |
1 | ||
| 82171-48F10 |
AVU65,ZSU6#..PREM ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-48E71 |
AVU65,ZSU6#..PREM |
1 | ||
| 82171-48F11 |
AVU65,ZSU6#..PREM ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-48020 |
ZSU6# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42380 |
AVU65,ZSU6# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42390 |
AVU65,ZSU6# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-42420 |
AVU65,ZSU6# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-48350 |
AVU65,ZSU6# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42410 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8121 | ||||
ILLUST NO. 6 OF11(1401- )AVU65,ZSU6#
ｺｳｱﾂｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90178-06018 | ||||
| 90179-08197 | ||||
| 90179-10087 | ||||
| 91552-81020 | ||||
| 91671-A0614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
