ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZSU6#

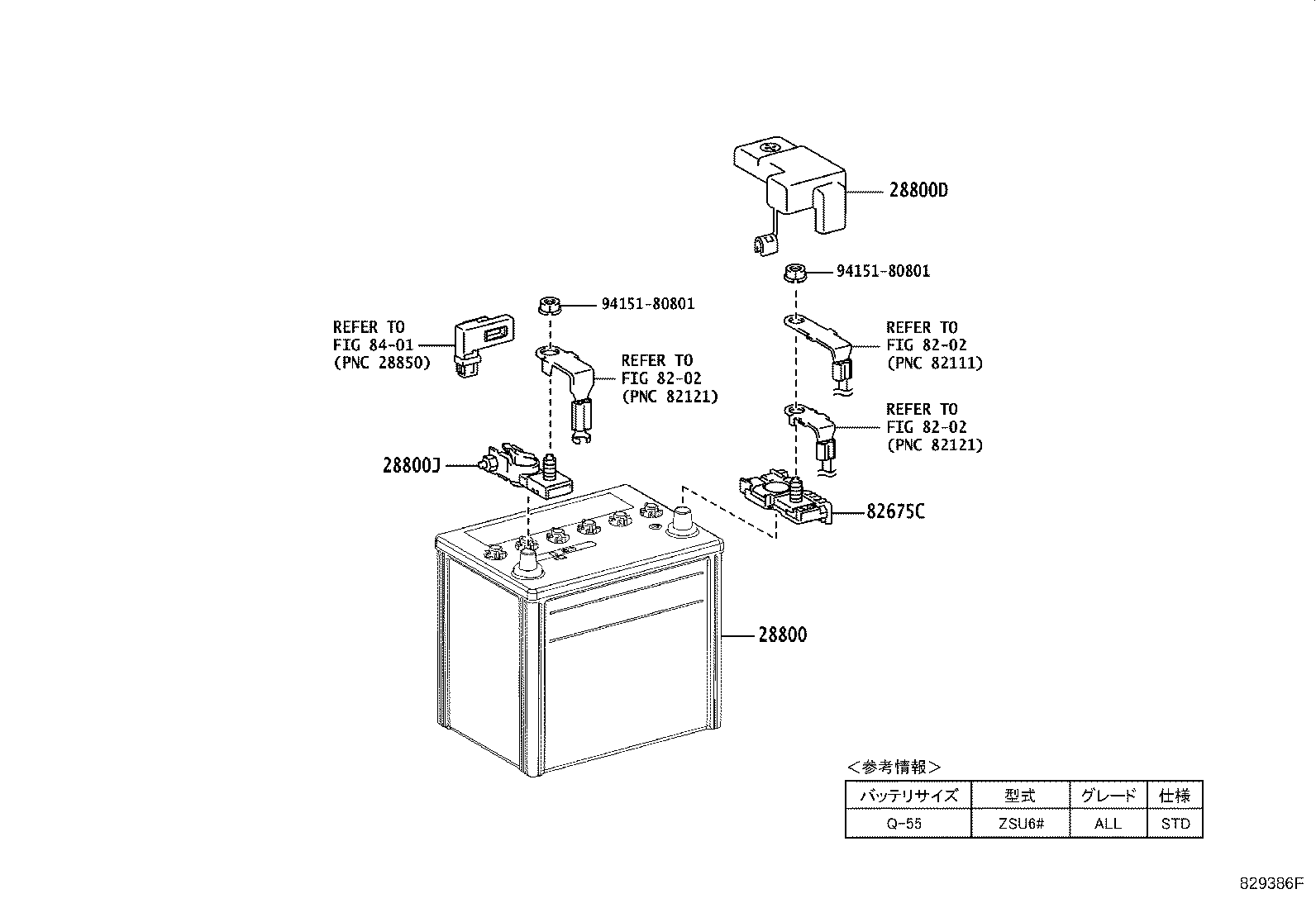

Click highlighted areas on diagram

diagram 28800 28800D 28800J 8202 8202 8202 82675C 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-47050

3ZRFAE..ZSU6#

Q−55

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-42070

3ZRFAE..ZSU6#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

3ZRFAE..ZSU6#

 1
82675C - TERMINAL, JUNCTION
82675-42080

ZSU6#

 1
Common parts
94151-80801
Linked diagrams
8202
8401
