ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

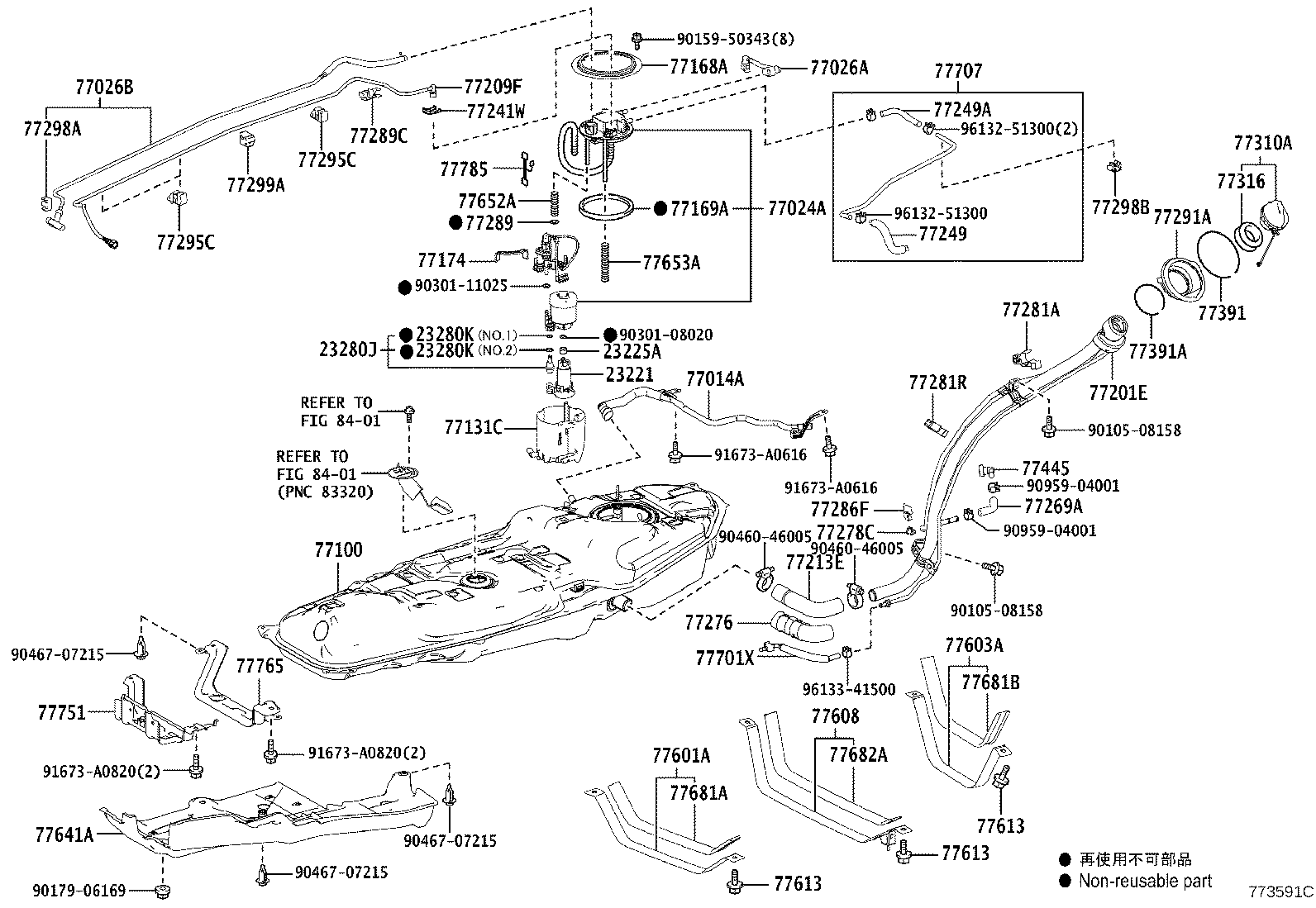

ILLUST NO. 1 OF 3(1312- )ZSU6#

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 23221 23225A 23280J 23280K 23280K 77014A 77024A 77026A 77026B 77100 77131C 77168A 77169A 77174 77201E 77209F 77213E 77241W 77249 77249A 77269A 77276 77278C 77281A 77281R 77286F 77289 77289C 77291A 77295C 77295C 77298A 77298B 77299A 77310A 77316 77391 77391A 77445 77601A 77603A 77608 77613 77613 77613 77641A 77652A 77653A 77681A 77681B 77682A 77701X 77707 77751 77765 77785 8401 8401 9010508158 9010508158 9015950343 9017906169 9030108020 9030111025 9046046005 9046046005 9046707215 9046707215 9046707215 9095904001 9095904001 91673A0616 91673A0616 91673A0820 91673A0820 9613251300 9613251300 9613341500
Part # Description Qty Price
23221 - PUMP, FUEL
23220-36011

2ARFXE,3ZRFAE..AVU65,ZSU6#

 1
23225A - SPACER, FUEL PUMP
23225-21020

2ARFXE,3ZRFAE..AVU65,ZSU6#

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010

2ARFXE,3ZRFAE..AVU65,ZSU6#

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

2ARFXE,3ZRFAE..AVU65,ZSU6#

NO.1

 1
90301-15024

2ARFXE,3ZRFAE..AVU65,ZSU6#

NO.2

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

2ARFXE,3ZRFAE..AVU65,ZSU6#

NO.1

 1
90301-15024

2ARFXE,3ZRFAE..AVU65,ZSU6#

NO.2

 1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014-42010

ZSU6#

 1
77014-42020

ZSU6#

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-42110

AVU65,ZSU6#

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-42030

ZSU6#

 1
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-42040

ZSU6#

 1
77100 - TANK ASSY, FUEL
77001-48190

ZSU6#

 1
77131C - SUB-TANK, FUEL, NO.1
77131-52082

AVU65,ZSU6#

 1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020

AVU65,ZSU6#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-52010

AVU65,ZSU6#

 1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-52070

AVU65,ZSU6#

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-42200

AVU65,ZSU6#

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-42170

ZSU6#

 1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-42080

AVU65,ZSU6#

 1
77241W - CLIP, TUBE JOINT
77241-33011

AVU65,ZSU6#

 1
77249 - HOSE, FUEL EMISSION
77249-42070

AVU65,ZSU6#

 1
77249A - HOSE, FUEL EMISSION
77249-42050

ZSU6#

 1
77269A - HOSE, FUEL TANK BREATHER
77269-42030

AVU65,ZSU6#

 1
77276 - PROTECTOR, FUEL HOSE
77276-42020

AVU65,ZSU6#

 1
77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2
77278-42030

AVU65,ZSU6#

 1
77281A - CLAMP, FUEL FILLER PIPE
77281-42030

AVU65,ZSU6#

 1
77281R - CLAMP, FUEL FILLER PIPE, NO.2
77281-42040

AVU65,ZSU6#

 1
77286F - CLAMP, FUEL TUBE, NO.2
89639-28130

AVU65,ZSU6#

 1
77289 - HOLDER, FUEL TANK PIPE SETTING
77289-52110

AVU65,ZSU6#

 1
77289C - CLAMP, FUEL TUBE, NO.4
77289-42020

ZSU6#

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-42050

AVU65,ZSU6#

 1
77295C - GROMMET, FUEL TUBE
77295-42110

ZSU6#

 3
77295C - GROMMET, FUEL TUBE
77295-42110

ZSU6#

 3
77298A - CLAMP, FUEL TUBE, NO.4
77298-42030

ZSU6#

 1
77298B - CLAMP, FUEL TUBE, NO.4
77298-30170

ZSU6#

 2
77299A - CLAMP, FUEL TUBE, NO.5
77299-42010

ZSU6#

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

AVU65,ZSU6#

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

AVU65,ZSU6#

 1
77391 - RING, FUEL INLET BOX
77391-12020

AVU65,ZSU6#

 1
77391A - RING, FUEL INLET BOX
77391-30020

AVU65,ZSU6#

 1
77445 - CONNECTOR, FUEL TANK VENT, NO.2
77445-42020

AVU65,ZSU6#

 1
77445-42050

AVU65,ZSU6#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-42080

ZSU6#

 1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-42020

ZSU6#

 1
77608 - BAND SUB-ASSY, FUEL TANK, NO.2
77602-42020

ZSU6#

 1
77613 - BOLT, FUEL TANK BAND SET
90119-10971

ZSU6#

 6
77613 - BOLT, FUEL TANK BAND SET
90119-10971

ZSU6#

 6
77613 - BOLT, FUEL TANK BAND SET
90119-10971

ZSU6#

 6
77641A - PROTECTOR, FUEL TANK, NO.1
77641-42060

AVU65,ZSU6#

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-42020

AVU65,ZSU6#

 1
77653A - CUSHION, FUEL TANK, NO.3
77652-42030

AVU65,ZSU6#

 1
77681A - SEAT, FUEL TANK BAND
77681-42020

ZSU6#

 1
77681B - SEAT, FUEL TANK BAND
77681-42010

ZSU6#

 1
77682A - SEAT, FUEL TANK BAND, NO.2
77681-21010

AVU65,ZSU6#

 1
77701X - HOSE SUB-ASSY, CANISTER OUTLET, NO.1
77701-42040

AVU65,ZSU6#

 1
77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77707-42030

ZSU6#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-0R030

AVU65,ZSU6#

 1
77751-78020

AVU65,ZSU6#

 1
77765 - PROTECTOR, CHARCOAL CANISTER
77765-0R030

AVU65,ZSU6#

 1
77765-78020

AVU65,ZSU6#

 1
77785 - HARNESS, FUEL PUMP
77785-42050

AVU65,ZSU6#

 1
Common parts
90105-08158
90159-50343
90179-06169
90301-08020
90301-11025
90460-46005
90467-07215
90959-04001
91673-A0616
91673-A0820
96132-51300
96133-41500
Linked diagrams
8401

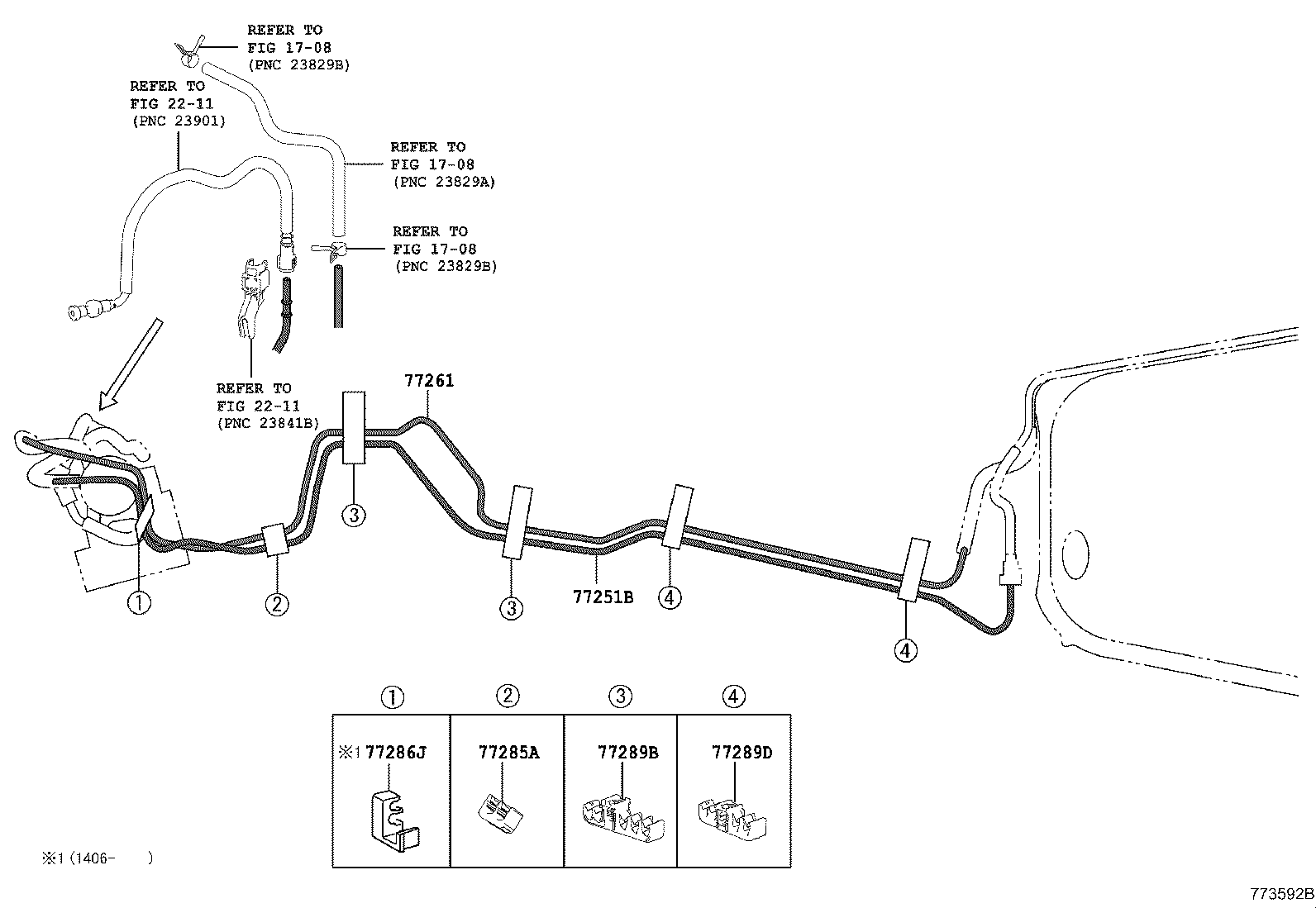

ILLUST NO. 2 OF 3(1312- )ZSU6#

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 77251B 77261 77285A 77286J 77289B 77289D
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-42210

ZSU6#

 1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-48230

ZSU6#

 1
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-42110

ZSU6#

 1
77286J - CLAMP, FUEL TUBE, NO.4
77286-48180

ZSU6#

 1
77289B - CLAMP, FUEL TUBE, NO.3
77298-68010

AVU65,ZSU6#

 2
77289D - CLAMP, FUEL TUBE, NO.5
77298-52070

AVU65,ZSU6#

 2

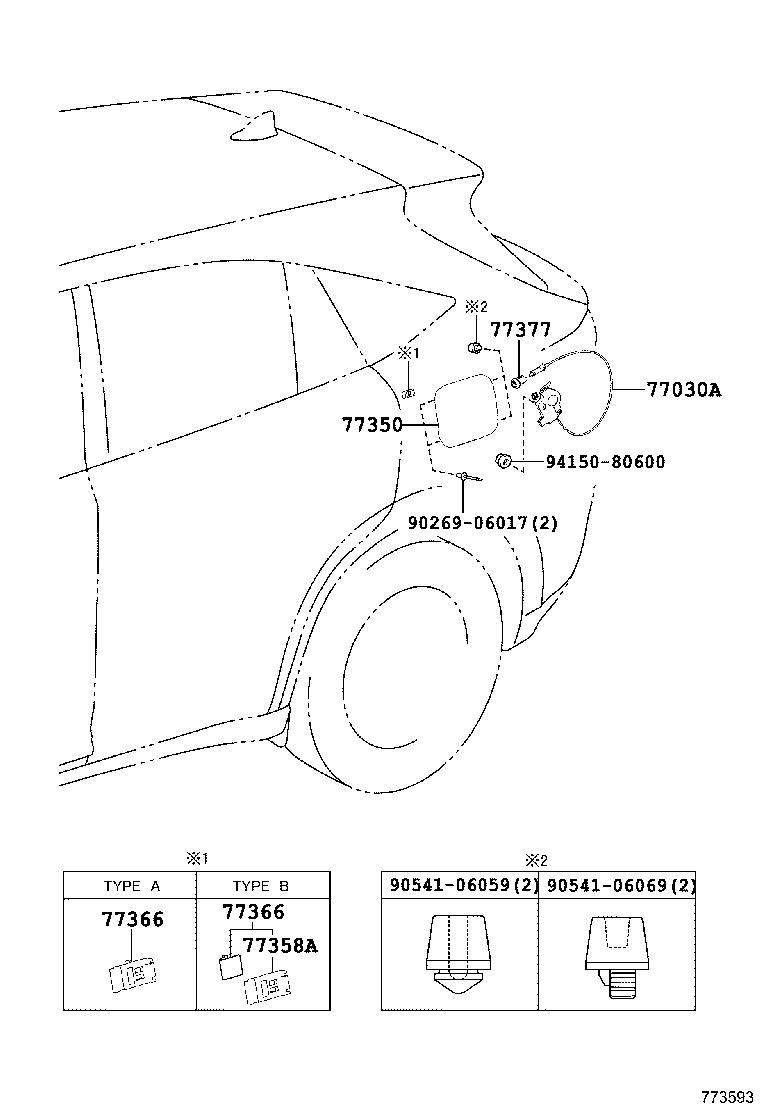

ILLUST NO. 3 OF 3(1312- )

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ

diagram 77030A 77350 77358A 77366 77366 77377 9026906017 9054106059 9054106069 9415080600
Part # Description Qty Price
77030A - LOCK ASSY, FUEL LID W/MOTOR
77030-48070

AVU65,ZSU6#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-48100

AVU65,ZSU6#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-30060

AVU65,ZSU6#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30070

AVU65,ZSU6#

TYPE A:ｲﾗｽﾄ参照

 1
77360-30080

AVU65,ZSU6#

TYPE B:ｲﾗｽﾄ参照

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30070

AVU65,ZSU6#

TYPE A:ｲﾗｽﾄ参照

 1
77360-30080

AVU65,ZSU6#

TYPE B:ｲﾗｽﾄ参照

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-75010

AVU65,ZSU6#

 1
Common parts
90269-06017
90541-06059
90541-06069
94150-80600
