ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
Production
Dec 2013
-
May 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )

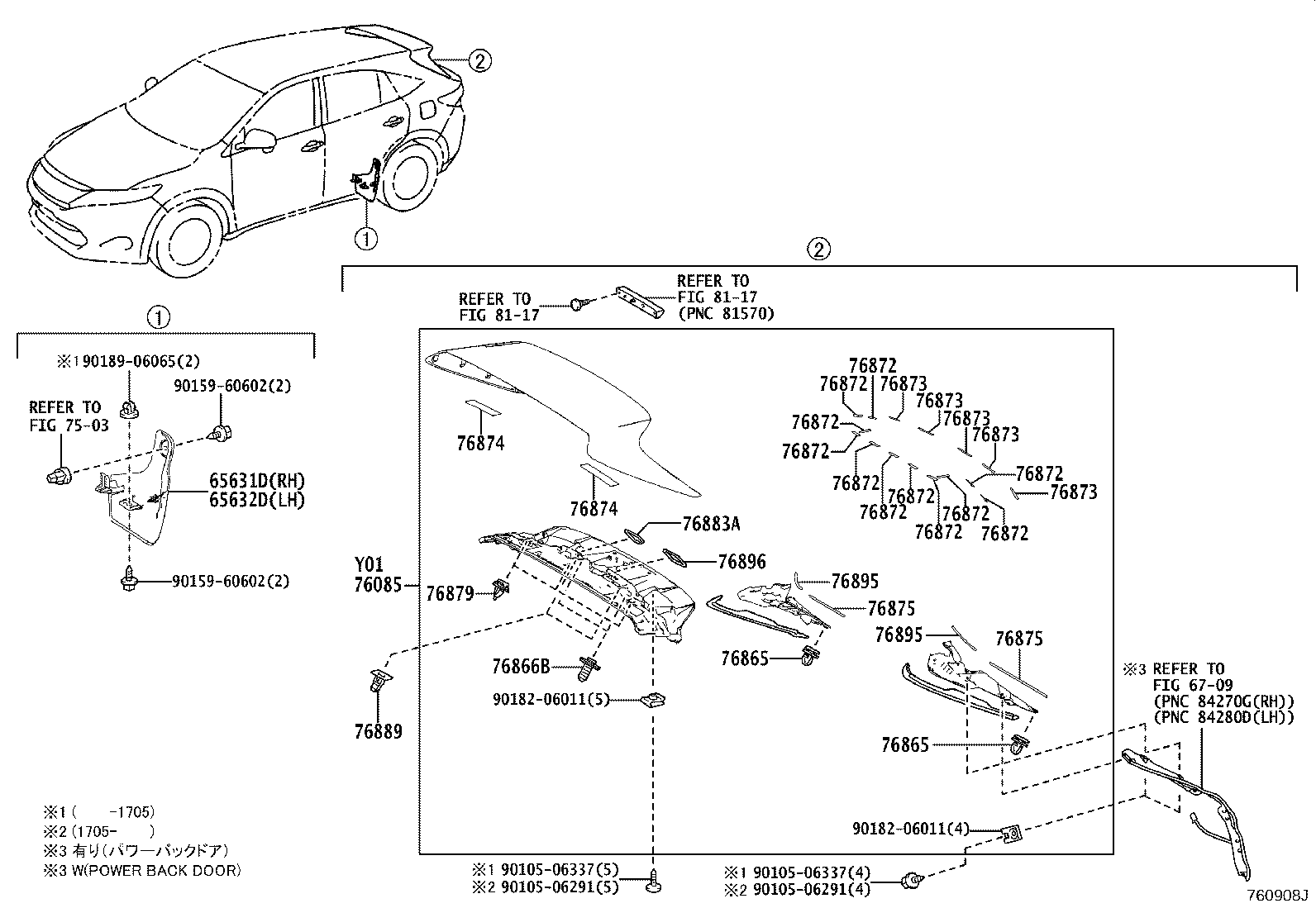

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-48010 |
AVU65,ZSU6# |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-48010 |
AVU65,ZSU6# |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-48900C0 |
AVU65,ZSU6#..PREM BLACK,070 ,1F7 ,1H2 ,202 ,220 ,221 ,3R0 ,3R3 ,4U5 ,8T7 |
1 | ||
| 76085-48901C0 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK,070 ,1F7 ,1H2 ,202 ,220 ,221 ,3R0 ,3R3 ,4U5 ,8T7 |
1 | ||
| 76865 - RETAINER, REAR SPOILER, NO.1 | ||||
| 76865-35030 |
AVU65,ZSU6# |
2 | ||
| 76865 - RETAINER, REAR SPOILER, NO.1 | ||||
| 76865-35030 |
AVU65,ZSU6# |
2 | ||
| 76866B - RETAINER, REAR SPOILER, NO.2 | ||||
| 76866-48010 |
AVU65,ZSU6# |
2 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48020 |
AVU65,ZSU6# |
11 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48030 |
AVU65,ZSU6# |
5 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48030 |
AVU65,ZSU6# |
5 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48030 |
AVU65,ZSU6# |
5 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48030 |
AVU65,ZSU6# |
5 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48030 |
AVU65,ZSU6# |
5 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-48020 |
AVU65,ZSU6# |
2 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-48020 |
AVU65,ZSU6# |
2 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-48040 |
AVU65,ZSU6# |
2 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-48040 |
AVU65,ZSU6# |
2 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 75819-68010 |
AVU65,ZSU6# |
3 | ||
| 76883A - PROTECTOR, REAR SOPILER, NO.7 | ||||
| 76883-48010 |
AVU65,ZSU6# |
1 | ||
| 76889 - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
AVU65,ZSU6# |
2 | ||
| 76895 - PROTECTOR, REAR SPOILER, NO.5 | ||||
| 76895-48010 |
AVU65,ZSU6# |
2 | ||
| 76895 - PROTECTOR, REAR SPOILER, NO.5 | ||||
| 76895-48010 |
AVU65,ZSU6# |
2 | ||
| 76896 - PROTECTOR, REAR SPOILER, NO.6 | ||||
| 76896-48010 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90105-06291 | ||||
| 90105-06337 | ||||
| 90159-60602 | ||||
| 90182-06011 | ||||
| 90189-06065 | ||||
| Linked diagrams | ||||
| 6709 | ||||
| 7503 | ||||
| 8117 | ||||
