ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
Production
Dec 2013
-
May 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )

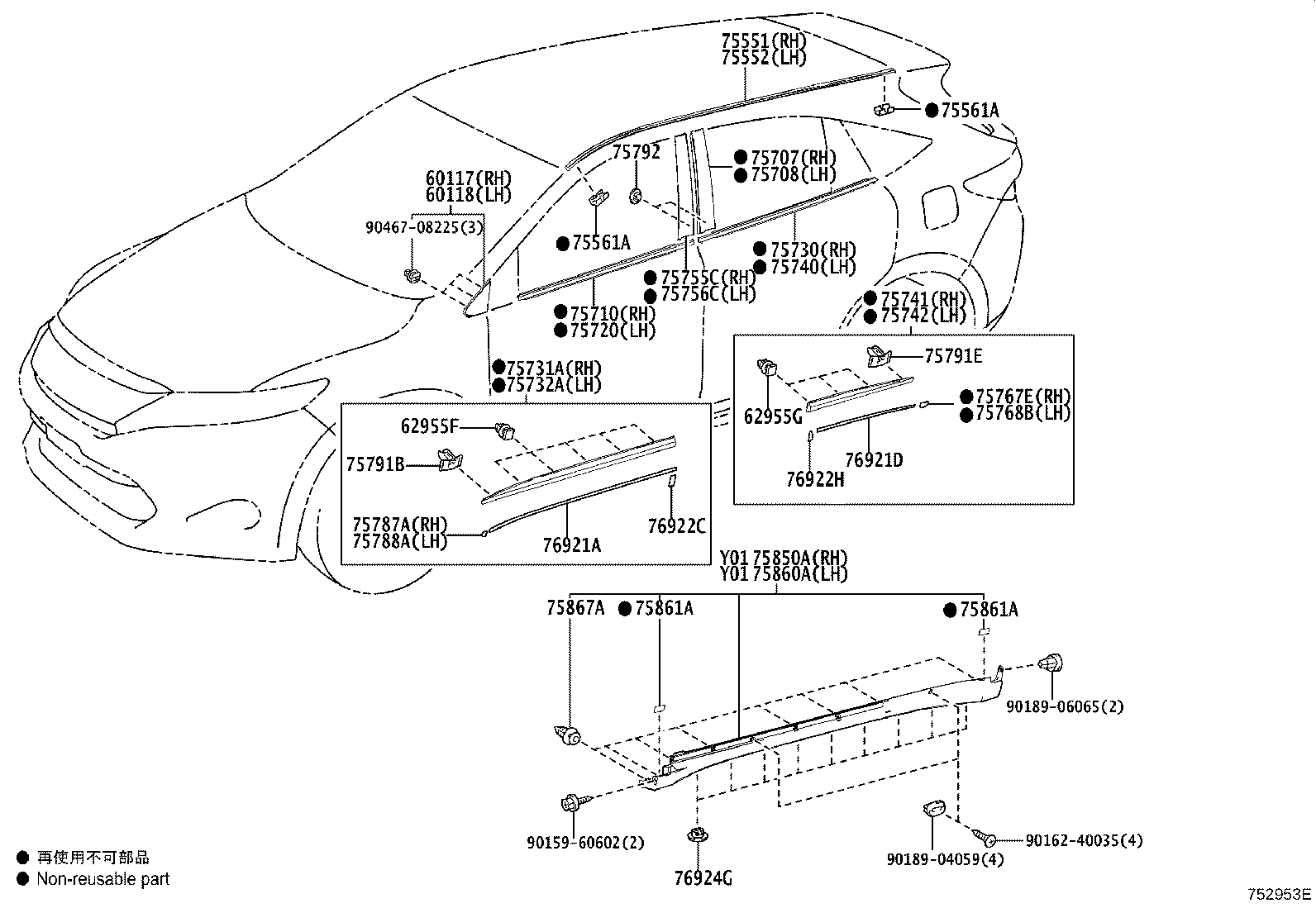

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-48020 |
AVU65,ZSU6# |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-48020 |
AVU65,ZSU6# |
1 | ||
| 62955F - RETAINER, QUARTER VENT LOUVER | ||||
| 62955-50010 |
AVU65,ZSU6# |
10 | ||
| 62955G - RETAINER, QUARTER VENT LOUVER | ||||
| 62955-50010 |
AVU65,ZSU6# |
6 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-48071 |
AVU65,ZSU6# 塗装不要 |
1 | ||
| 75551-48070 |
AVU65,ZSU6# 塗装不要 |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-48070 |
AVU65,ZSU6# 塗装不要 |
1 | ||
| 75552-48071 |
AVU65,ZSU6# 塗装不要 |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
AVU65,ZSU6# |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
AVU65,ZSU6# |
4 | ||
| 75707 - MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH | ||||
| 75075-48130 |
AVU65,ZSU6# |
1 | ||
| 75708 - MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH | ||||
| 75076-48130 |
AVU65,ZSU6# |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-48080 |
AVU65,ZSU6# |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-48080 |
AVU65,ZSU6# |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-48070 |
AVU65,ZSU6# |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-48070 |
AVU65,ZSU6# ﾒｯｷ |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-48070 |
AVU65,ZSU6# ﾒｯｷ |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-48080 |
AVU65,ZSU6# |
1 | ||
| 75741 - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75741-48080 |
AVU65,ZSU6# ﾒｯｷ |
1 | ||
| 75742 - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75742-48080 |
AVU65,ZSU6# ﾒｯｷ |
1 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-48030 |
AVU65,ZSU6# |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-48030 |
AVU65,ZSU6# |
1 | ||
| 75767E - PAD, REAR DOOR MOULDING, RH | ||||
| 75797-48030 |
AVU65,ZSU6# |
1 | ||
| 75768B - PAD, REAR DOOR MOULDING, LH | ||||
| 75798-48010 |
AVU65,ZSU6# |
1 | ||
| 75787A - PAD, FRONT DOOR OUTSIDE MOULDING, RH | ||||
| 75787-48010 |
AVU65,ZSU6# |
1 | ||
| 75788A - PAD, FRONT DOOR OUTSIDE MOULDING, LH | ||||
| 75788-48010 |
AVU65,ZSU6# |
1 | ||
| 75791B - CLIP, BELT MOULDING SIDE | ||||
| 75791-42010 |
AVU65,ZSU6# |
2 | ||
| 75791E - CLIP, BELT MOULDING SIDE | ||||
| 75791-42010 |
AVU65,ZSU6# |
2 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
AVU65,ZSU6# |
4 | ||
| 75850A - MOULDING ASSY, BODY ROCKER PANEL, RH | ||||
| 75850-48030 |
AVU65,ZSU6# |
1 | ||
| 75860A - MOULDING ASSY, BODY ROCKER PANEL, LH | ||||
| 75860-48030 |
AVU65,ZSU6# |
1 | ||
| 75861A - PROTECTOR, ROCKER PANEL MOULDING, NO.1 | ||||
| 75861-48020 |
AVU65,ZSU6# |
4 | ||
| 75861A - PROTECTOR, ROCKER PANEL MOULDING, NO.1 | ||||
| 75861-48020 |
AVU65,ZSU6# |
4 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 90467-10162 |
AVU65,ZSU6# |
16 | ||
| 76921A - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76917-48010 |
AVU65,ZSU6# |
2 | ||
| 76921D - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76925-48010 |
AVU65,ZSU6# |
2 | ||
| 76922C - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76918-48010 |
AVU65,ZSU6# |
2 | ||
| 76922H - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76926-48010 |
AVU65,ZSU6# |
2 | ||
| 76924G - RETAINER, ROCKER PANEL MOULDING | ||||
| 76924-12040 |
AVU65,ZSU6# |
18 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90162-40035 | ||||
| 90189-04059 | ||||
| 90189-06065 | ||||
| 90467-08225 | ||||
