ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

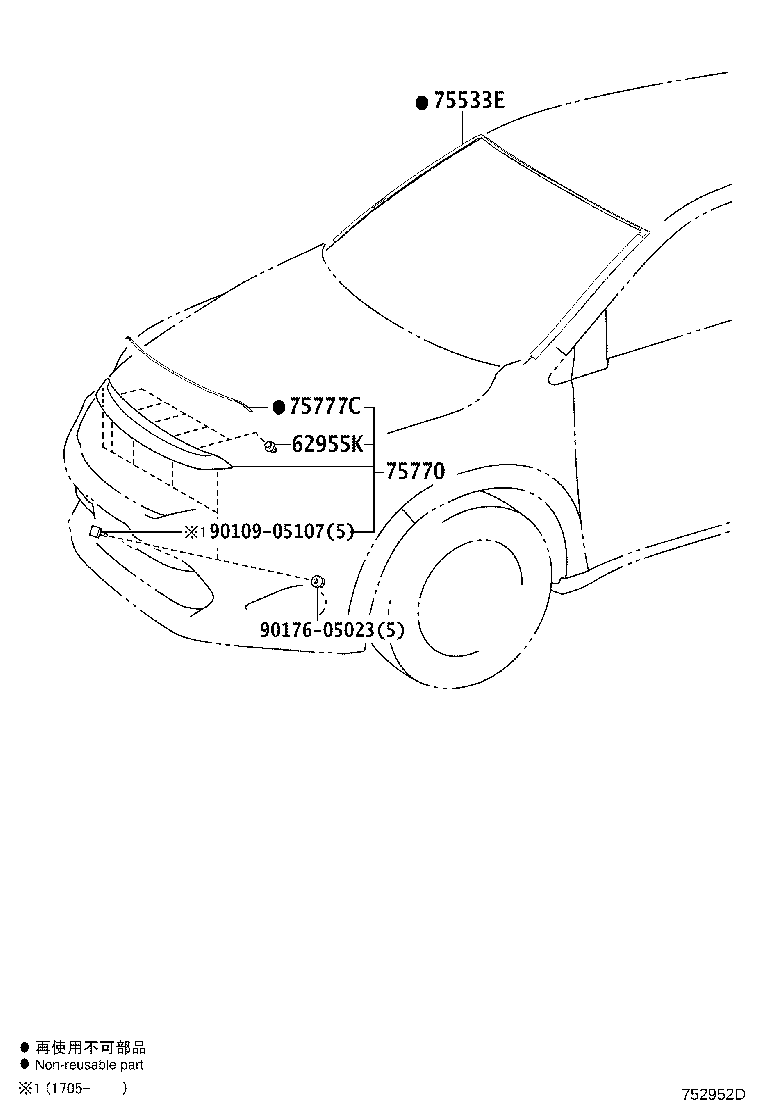

Click highlighted areas on diagram

diagram 62955K 75533E 75770 75777C 9010905107 9017605023
Part # Description Qty Price
62955K - RETAINER, QUARTER VENT LOUVER
62955-50010

AVU65,ZSU6#

 5
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-48120

AVU65,ZSU6#

 1
75770 - MOULDING ASSY, HOOD, FRONT
75770-48030

AVU65,ZSU6#

ﾒｯｷ

 1
75777C - PAD, HOOD FRONT MOULDING
75777-48020

AVU65,ZSU6#

 1
Common parts
90109-05107
90176-05023
