ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

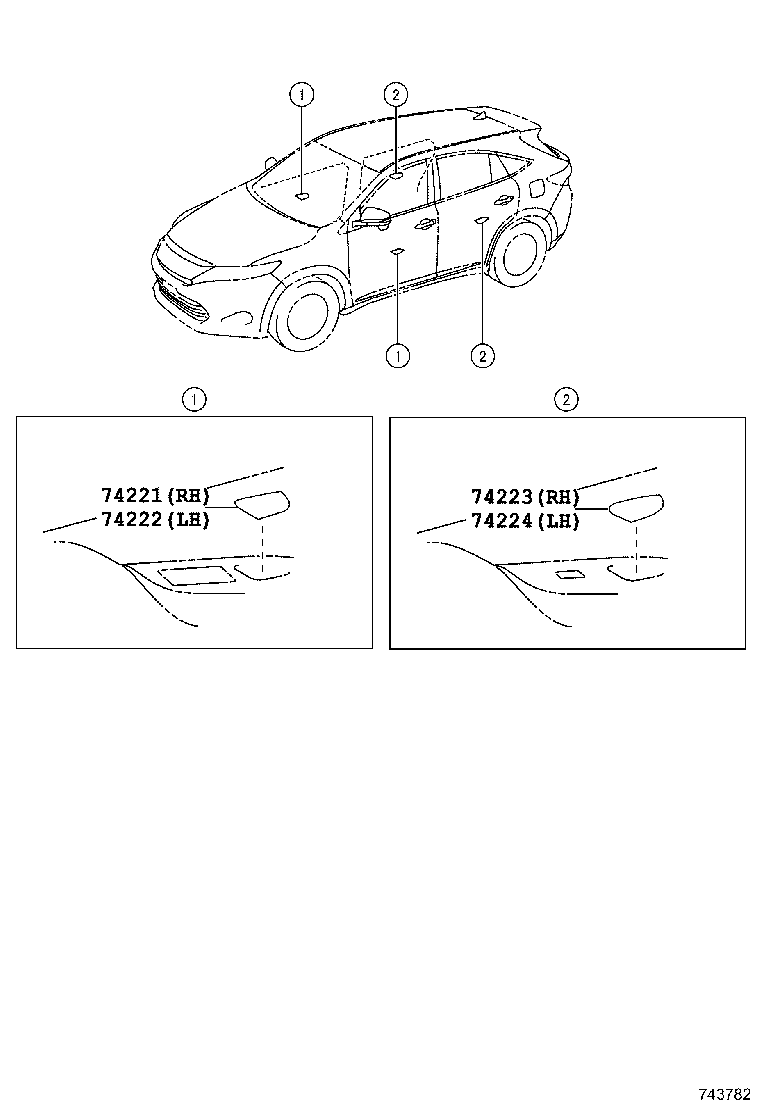

ILLUST NO. 1 OF 2(1312- )

Click highlighted areas on diagram

ｱｰﾑﾚｽﾄ

diagram 74221 74222 74223 74224
Part # Description Qty Price
74221 - COVER, DOOR ARMREST, RH
74221-48030

AVU65,ZSU6#

 1
74222 - COVER, DOOR ARMREST, LH
74222-48030

AVU65,ZSU6#

 1
74223 - CAP, DOOR ARMREST, RH
74223-48010

AVU65,ZSU6#

 1
74224 - CAP, DOOR ARMREST, LH
74224-48010

AVU65,ZSU6#

 1

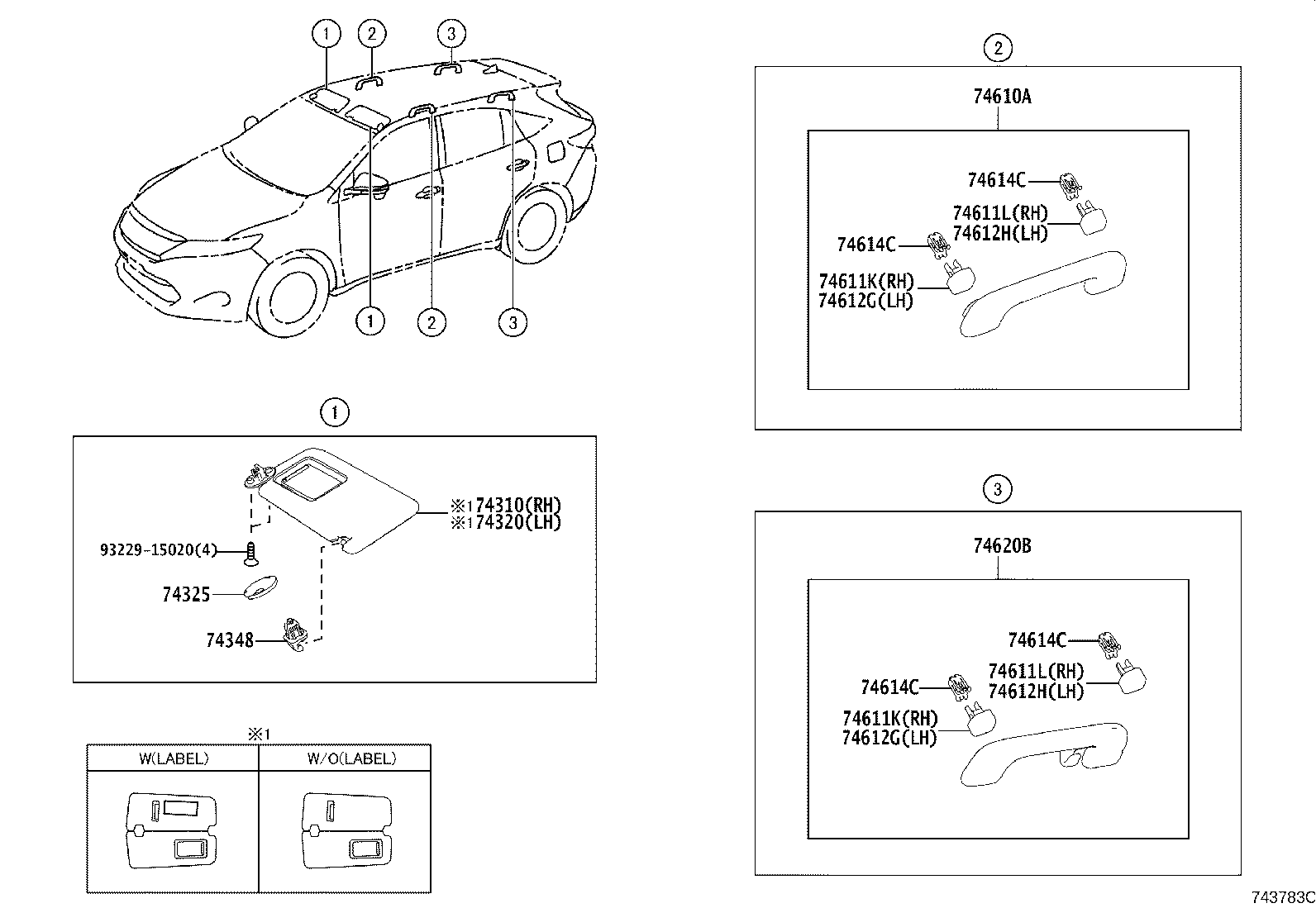

ILLUST NO. 2 OF 2(1312- )

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

diagram 74310 74320 74325 74348 74610A 74611K 74611K 74611L 74611L 74612G 74612G 74612H 74612H 74614C 74614C 74614C 74614C 74620B 9322915020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-48380C0

AVU65,ZSU6#..ELEGC,PREM

BLACK,TRIM0#,2#,4#,有り(ﾗﾍﾞﾙ)

 1
74310-48440C1

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#,有り(ﾗﾍﾞﾙ)

 1
74320 - VISOR ASSY, LH
74320-48360C1

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
74325 - COVER, VISOR BRACKET
74317-60020C2

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74317-60020C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74348 - HOLDER, VISOR
74348-33040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74348-33040C2

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-12130C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74611K - COVER, ASSIST GRIP, RH FRONT SIDE
74612-12040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74611K - COVER, ASSIST GRIP, RH FRONT SIDE
74612-12040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74611L - COVER, ASSIST GRIP, RH REAR SIDE
74611-12040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74611L - COVER, ASSIST GRIP, RH REAR SIDE
74611-12040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74612G - COVER, ASSIST GRIP, LH FRONT SIDE
74611-12040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74612G - COVER, ASSIST GRIP, LH FRONT SIDE
74611-12040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74612H - COVER, ASSIST GRIP, LH REAR SIDE
74612-12040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74612H - COVER, ASSIST GRIP, LH REAR SIDE
74612-12040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
74614C - PLATE, ASSIST GRIP LOCK
74614-12010

AVU65,ZSU6#

 8
74614C - PLATE, ASSIST GRIP LOCK
74614-12010

AVU65,ZSU6#

 8
74614C - PLATE, ASSIST GRIP LOCK
74614-12010

AVU65,ZSU6#

 8
74614C - PLATE, ASSIST GRIP LOCK
74614-12010

AVU65,ZSU6#

 8
74620B - GRIP ASSY, ASSIST, REAR
74610-42060C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
Common parts
93229-15020
