ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
(1312- )ASU6#,ZSU6#

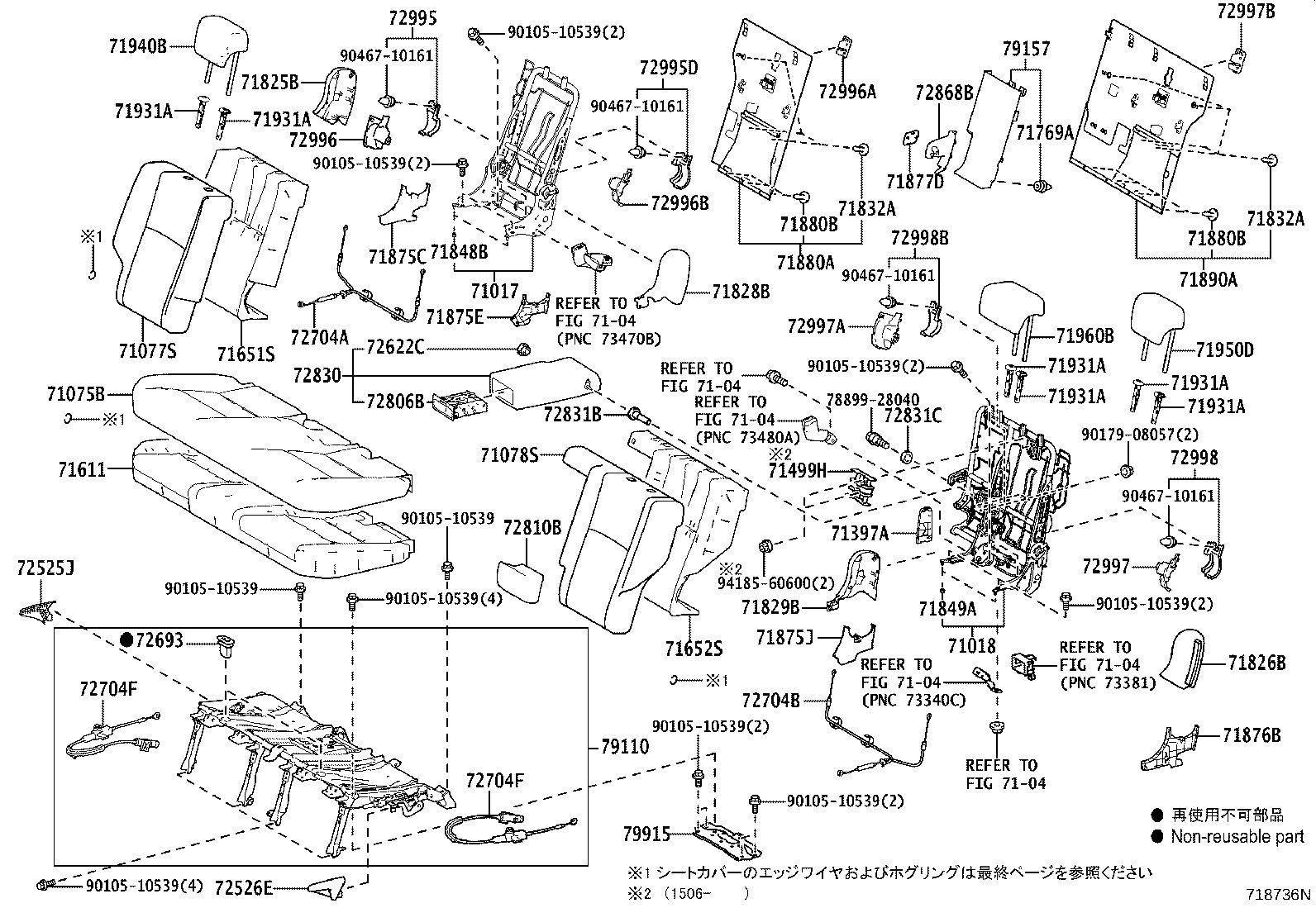

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-48200 |
AVU65,ZSU6# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-48161 |
AVU65,ZSU6# |
1 | ||
| 71018-48160 |
AVU65,ZSU6# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-48580A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71075-48740C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71075-48580C2 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71075-48750B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71075-48580C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71075-48580A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71075-48590C4 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71075-48590C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-48850C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71077-48850A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71077-48860C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71077-48B60C1 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71077-48860C4 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71077-48850A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71077-48850C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71077-48850C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71077-48861C6 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71077-48850A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71077-48C30B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71077-48860C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-48760C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71078-48760A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71078-48760A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71078-48771C4 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71078-48A61C1 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71078-48761C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71078-48770C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71078-48770C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71078-48761A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71078-48760C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71078-48B30B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71078-48772C6 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71397-48040C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71499H - DAMPER, REAR SEAT BACK SPRING, LH | ||||
| 71499-48090 |
AVU65,ZSU6# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-48010 |
AVU65,ZSU6# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-48230 |
AVU65,ZSU6# |
1 | ||
| 71651-48290 |
AVU65,ZSU6# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-48200 |
AVU65,ZSU6# |
1 | ||
| 71652-48260 |
AVU65,ZSU6# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-47020 |
AVU65,ZSU6# |
1 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-48070C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-48060C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-48110C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-48090C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 71769-48010 |
AVU65,ZSU6# |
7 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 71769-48010 |
AVU65,ZSU6# |
7 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-78010 |
AVU65,ZSU6# |
2 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-78010 |
AVU65,ZSU6# |
2 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48090C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48100C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-48090C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-48080C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71877D - COVER, REAR SEAT ARMREST HOLE | ||||
| 71877-48010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-48270C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-08186C3 |
AVU65,ZSU6# BLACK |
7 | ||
| 90467-08186C0 |
AVU65,ZSU6# BLACK |
7 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-08186C3 |
AVU65,ZSU6# BLACK |
7 | ||
| 90467-08186C0 |
AVU65,ZSU6# BLACK |
7 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-48240C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
3 | ||
| 71940B - HEADREST ASSY, REAR SEAT, RH | ||||
| 71940-48690C2 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM20,43,ﾄﾘﾑ=FA** |
1 | ||
| 71940-48690A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM00,ﾄﾘﾑｺｰﾄﾞ=FA** |
1 | ||
| 71940-48690A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM00 |
1 | ||
| 71940-48690C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM20,43 |
1 | ||
| 71940-48700C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM20,43,ﾄﾘﾑ=LA** |
1 | ||
| 71940-48691A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71940-48702C7 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4# |
1 | ||
| 71940-48700C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM20,43 |
1 | ||
| 71940-48691B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/SILVER,TRIM1# |
1 | ||
| 71940-48691C7 |
ZSU6#..ELEGC,PREM BLACK/CREAM,TRIM2#,4# |
1 | ||
| 71940-48702C7 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71940-48702B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71940-48702A0 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71940-48701C4 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71940-48691C8 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71950D - HEADREST ASSY, REAR SEAT, LH | ||||
| 71940-48690A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM00,ﾄﾘﾑ=FA** |
1 | ||
| 71940-48690A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM00 |
1 | ||
| 71940-48690C2 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM20,43 |
1 | ||
| 71940-48690C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM20,43,ﾄﾘﾑ=FA** |
1 | ||
| 71940-48700C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM20,43,ﾄﾘﾑ=LA** |
1 | ||
| 71940-48691C7 |
AVU65,ZSU6#..ELEGC,PREM BLACK/CREAM,TRIM2#,4# |
1 | ||
| 71940-48691C8 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71940-48701C7 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4# |
1 | ||
| 71940-48702C7 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4# |
1 | ||
| 71940-48701C4 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71940-48700C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM20,43 |
1 | ||
| 71940-48702A0 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71940-48702B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71940-48691A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71940-48702C7 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71940-48691B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/SILVER,TRIM1# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-48440C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71960-48441C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71960-48430A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71960-48430C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71960-48430C2 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71960-48431C3 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71960-48430A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71960-48442B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71960-48442A0 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71960-48431B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71960-48442C5 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4# |
1 | ||
| 71960-48431A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71960-48442C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 72525J - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-48020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-48050C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT | ||||
| 72622-48010 |
AVU65,ZSU6# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AVU65,ZSU6# |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-48110 |
AVU65,ZSU6# |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-48130 |
AVU65,ZSU6# |
1 | ||
| 72704F - CABLE, REAR SEAT RECLINING CONTROL, NO.3 | ||||
| 72704-48120 |
AVU65,ZSU6# |
2 | ||
| 72704F - CABLE, REAR SEAT RECLINING CONTROL, NO.3 | ||||
| 72704-48120 |
AVU65,ZSU6# |
2 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-53020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72806-53020C0 |
AVU65..PREM;ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,BLACK,TRIM2#,4# |
1 | ||
| 72810B - ARMREST ASSY, NO.1 SEAT | ||||
| 72810-48221C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 72810-48220C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 72810-48230C1 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 72810-48220A0 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 72810-48221A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 72810-48221B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 72810-48231C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-48670C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 72830-48670A0 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 72830-48670B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 72830-48680C1 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 72831B - PLATE, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72831-47010 |
AVU65,ZSU6# |
1 | ||
| 72831C - PLATE, REAR SEAT CENTER ARMREST, NO.2 | ||||
| 72831-52010 |
AVU65,ZSU6# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-48020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72996-48100C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72995D - COVER, REAR SEAT CUSHION, INNER RH | ||||
| 72997-48070C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-48080C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-60160C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72996B - COVER, REAR SEAT BACK, INNER RH | ||||
| 72997-48050C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-48050C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72997A - COVER, REAR SEAT BACK, INNER LH | ||||
| 72996-48080C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72997B - COVER, REAR SEAT BACK | ||||
| 72996-60160C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72997-48070C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72998B - COVER, REAR SEAT CUSHION, LH | ||||
| 72996-48100C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 79110 - LEG ASSY, NO.1 SEAT | ||||
| 79110-48020 |
ZSU6# |
1 | ||
| 79157 - COVER, NO.1 SEAT BACK | ||||
| 79157-48060C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-42010 |
ZSU6# |
1 | ||
| Common parts | ||||
| 78899-28040 | ||||
| 90105-10539 | ||||
| 90179-08057 | ||||
| 90467-10161 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1312- )
ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
