ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
(1312-1705)ELEGC,PREM

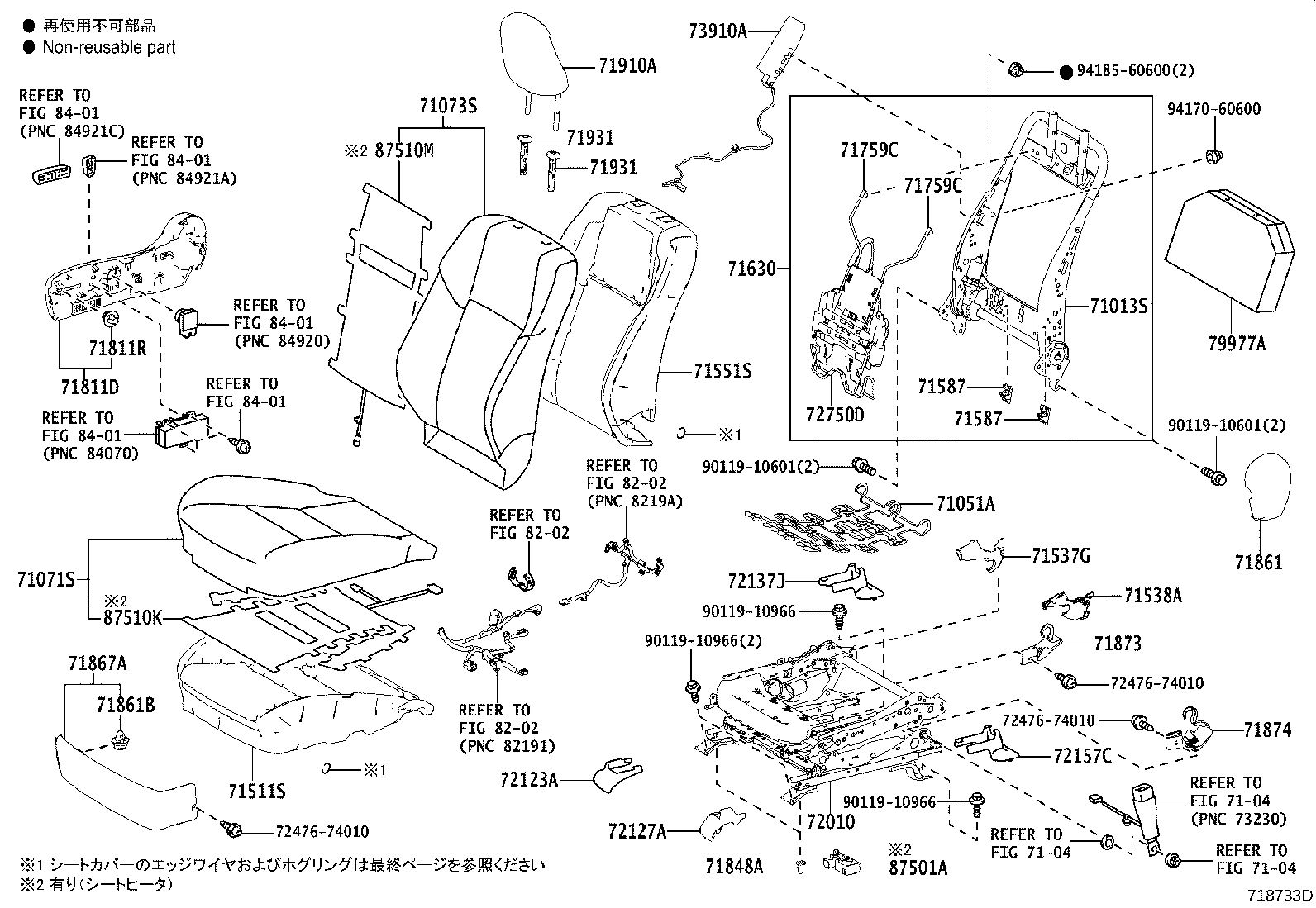

ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-48100 |
ZSU6#..ELEGC,PREM |
1 | ||
| 71013-48120 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 71013-48120 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71013-48120 |
ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47060 |
AVU65,ZSU6# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48890C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK/BEIGE,TRIM20 |
1 | ||
| 71071-48B30C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71071-48890A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71071-48A00C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71071-48890C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71071-48A00C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71071-48870B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71071-48890C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK/BLACK,TRIM2#,4# |
1 | ||
| 71071-48890C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK/BLACK,TRIM20,4# |
1 | ||
| 71071-48890A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71071-48890A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48C30C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71073-48C41C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71073-48C30C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71073-48C40C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71073-48C40C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71073-48E20C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71073-48C30A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71073-48C30A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71073-48C30A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71073-48C41C4 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71073-48C50B1 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71073-48C30C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-S0260 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-42010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-42010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-S0370 |
AVU65,ZSU6# |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AVU65,ZSU6# |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AVU65,ZSU6# |
2 | ||
| 71630 - SPRING ASSY, FRONT SEAT BACK, RH | ||||
| 71630-48100 |
ZSU6#..ELEGC,PREM |
1 | ||
| 71630-48120 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71630-48120 |
ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71630-48120 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
AVU65,ZSU6# |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
AVU65,ZSU6# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42160C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
AVU65,ZSU6# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-48050 |
AVU65,ZSU6# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42110C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-42030C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60030 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-60110 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48690C4 |
AVU65,ZSU6#..PREM BLACK/DARK VIOLET,TRIM44 |
2 | ||
| 71910-48690A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..PREM BLACK,TRIM2#,43 |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..PREM BLACK,TRIM2#,4# |
2 | ||
| 71910-48690B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/SILVER,TRIM1# |
2 | ||
| 71910-48700C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..PREM BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-48071 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 72010-48071 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 72010-48071 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 72010-42201 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-42030C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-42030C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-42050C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72158-42020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-48070 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 72750-48070 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 72750-48030 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 72750-48030 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 72750-48040 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 72750-48030 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42040 |
AVU65,ZSU6# |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52120 |
AVU65,ZSU6# |
2 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-60040 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 87501-60040 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87501-60050 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 87501-60040 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-48170 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87510-48170 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 87510-48170 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-48060 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87530-48060 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 87530-48060 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1312- )

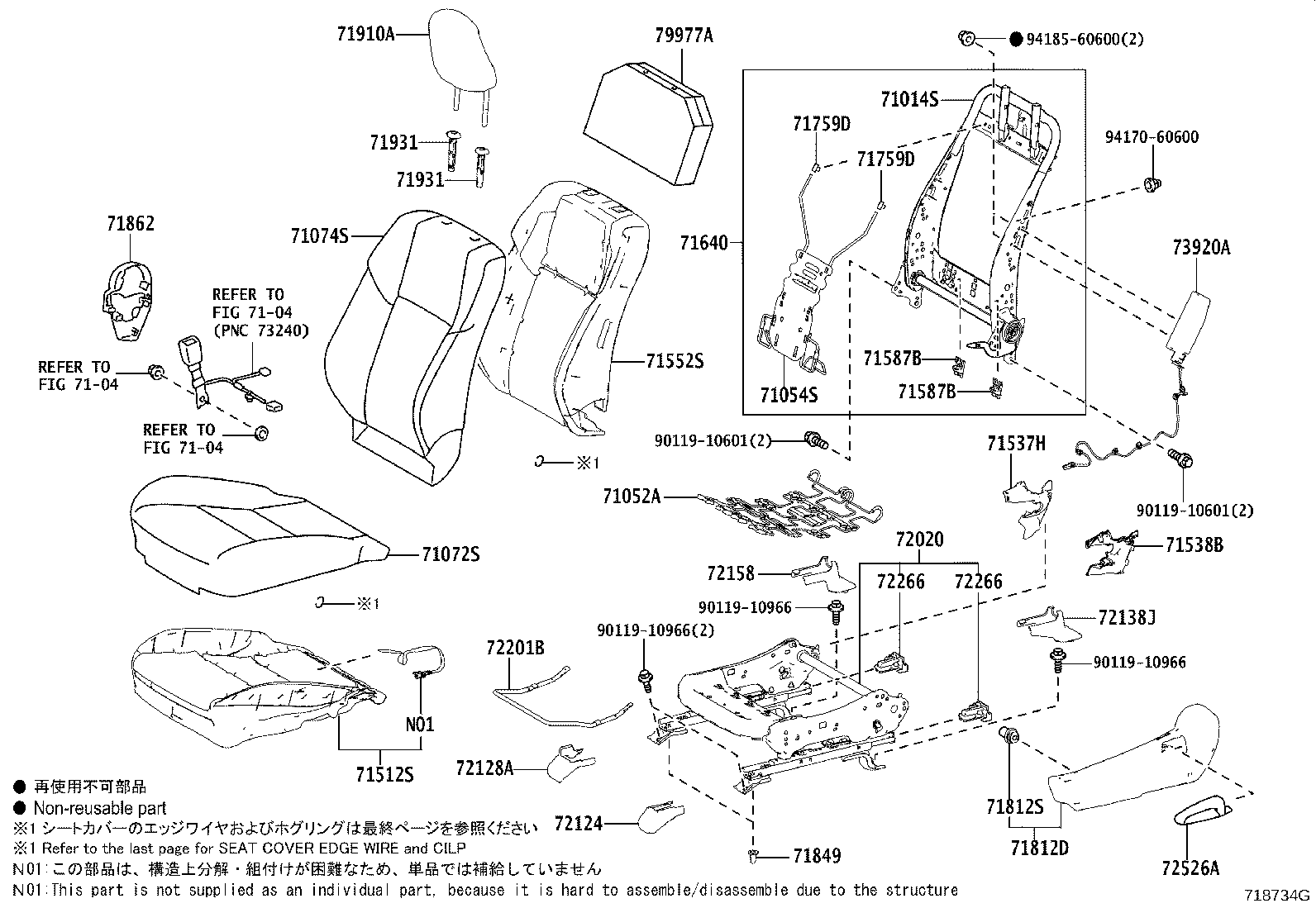

ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-48090 |
ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71014-48090 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 71014-48070 |
ZSU6# |
1 | ||
| 71014-48090 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
AVU65,ZSU6# |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-52050 |
AVU65,ZSU6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-48A00C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71072-48890A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71072-48B00C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71072-48890C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK/BEIGE,TRIM20 |
1 | ||
| 71072-48890C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71072-48A00C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71072-48890C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK/BLACK,TRIM2#,4# |
1 | ||
| 71072-48B10B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71072-48890A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71072-48890A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71072-48890C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK/BLACK,TRIM20,4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-48B50C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71074-48B50A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71074-48D40C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71074-48B50C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71074-48B61C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71074-48B60C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71074-48B60C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71074-48B50C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71074-48B61C4 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71074-48B50A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71074-48B50A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71074-48D50B1 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-48060 |
AVU65,ZSU6# |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-42020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71537-42020C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71537-42020C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71537-42020C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-42020C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 71538-42020C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71538-42020C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71538-42020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-S0270 |
AVU65,ZSU6# |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AVU65,ZSU6# |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AVU65,ZSU6# |
2 | ||
| 71640 - SPRING ASSY, FRONT SEAT BACK, LH | ||||
| 71640-48070 |
ZSU6# |
1 | ||
| 71640-48090 |
ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71640-48090 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 71640-48090 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AVU65,ZSU6# |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AVU65,ZSU6# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-48170C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 71812-48170C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71812-42140C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71812-48170C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-47020 |
AVU65,ZSU6# |
1 | ||
| 71769-47020 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
2 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-48050 |
AVU65,ZSU6# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-48110C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71862-42090C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71862-48110C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71862-48110C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48690C4 |
AVU65,ZSU6#..PREM BLACK/DARK VIOLET,TRIM44 |
2 | ||
| 71910-48690A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..PREM BLACK,TRIM2#,43 |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..PREM BLACK,TRIM2#,4# |
2 | ||
| 71910-48690B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/SILVER,TRIM1# |
2 | ||
| 71910-48700C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..PREM BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-48091 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 72020-48091 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 72020-42211 |
AVU65,ZSU6# |
1 | ||
| 72020-48091 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-42020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-42030C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-42010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-42020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-47020 |
AVU65,ZSU6# |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-42010 |
AVU65,ZSU6# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-42010 |
AVU65,ZSU6# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-52040C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42040 |
AVU65,ZSU6# |
1 | ||
| 73920-42040 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
4 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52120 |
AVU65,ZSU6# |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1312- )
ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1312-1705)ELEGC,PREM
ｼﾞｮｼｭｾｷ,ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-48090 |
ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71014-48090 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 71014-48070 |
ZSU6# |
1 | ||
| 71014-48090 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
AVU65,ZSU6# |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-52050 |
AVU65,ZSU6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-48A00C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71072-48890A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71072-48B00C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71072-48890C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK/BEIGE,TRIM20 |
1 | ||
| 71072-48890C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71072-48A00C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71072-48890C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK/BLACK,TRIM2#,4# |
1 | ||
| 71072-48B10B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71072-48890A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71072-48890A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71072-48890C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK/BLACK,TRIM20,4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-48B50C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71074-48B50A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71074-48D40C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DARK VIOLET,TRIM4# |
1 | ||
| 71074-48B50C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71074-48B61C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71074-48B60C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71074-48B60C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71074-48B50C5 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71074-48B61C4 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71074-48B50A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71074-48B50A3 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71074-48D50B1 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-48060 |
AVU65,ZSU6# |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-42020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71537-42020C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71537-42020C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71537-42020C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-42020C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 71538-42020C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71538-42020C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71538-42020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-S0270 |
AVU65,ZSU6# |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AVU65,ZSU6# |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AVU65,ZSU6# |
2 | ||
| 71640 - SPRING ASSY, FRONT SEAT BACK, LH | ||||
| 71640-48070 |
ZSU6# |
1 | ||
| 71640-48090 |
ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71640-48090 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 71640-48090 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AVU65,ZSU6# |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AVU65,ZSU6# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-48170C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 71812-48170C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71812-42140C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71812-48170C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-47020 |
AVU65,ZSU6# |
1 | ||
| 71769-47020 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
2 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-48050 |
AVU65,ZSU6# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-48110C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71862-42090C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 71862-48110C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71862-48110C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 71769-47020 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-42030C0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK,TRIM1#,2#,4# |
1 | ||
| 71868-42030C0 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71868-42030C0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48690C4 |
AVU65,ZSU6#..PREM BLACK/DARK VIOLET,TRIM44 |
2 | ||
| 71910-48690A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..PREM BLACK,TRIM2#,43 |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..PREM BLACK,TRIM2#,4# |
2 | ||
| 71910-48690B0 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/SILVER,TRIM1# |
2 | ||
| 71910-48700C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..PREM BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ付,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6#..PREM ﾛｯｸ無,BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-48091 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 72020-48091 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 72020-42211 |
AVU65,ZSU6# |
1 | ||
| 72020-48091 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-42020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-42030C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-42010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-42020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42040 |
AVU65,ZSU6# |
1 | ||
| 73920-42040 |
ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
4 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52120 |
AVU65,ZSU6# |
2 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-60040 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87501-60040 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 87501-60040 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87501-60050 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-48180 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 87510-48180 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87510-48180 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-48060 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 87530-48060 |
AVU65,ZSU6#..PREM *576&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 87530-48060 |
AVU65,ZSU6#..PREM *577&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
