ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1705)

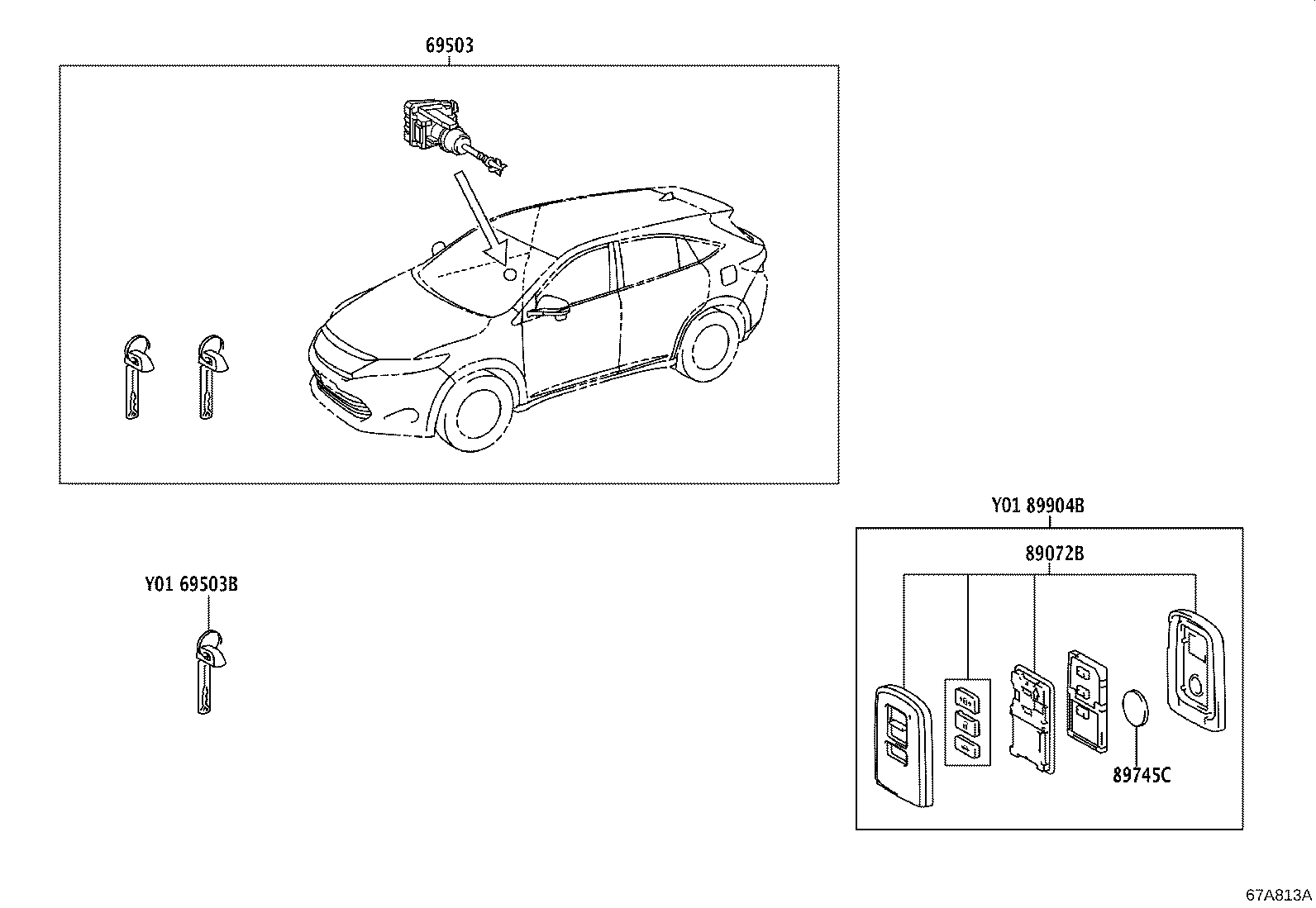

Click highlighted areas on diagram

diagram 69503 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-48510

AVU65,ZSU6#

 1
69503B - KEY, CUT
69515-33090

AVU65,ZSU6#

ﾏｽﾀｰｷｰ,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-48A60

AVU65,ZSU6#..PREM

 2
89745C - BATTERY, TRANSMITTER
89745-45010

AVU65,ZSU6#

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-48F20

AVU65,ZSU6#..PREM

 2
89904-48F21

AVU65,ZSU6#..PREM

 2
