ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

Click highlighted areas on diagram

ｱﾘ(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)

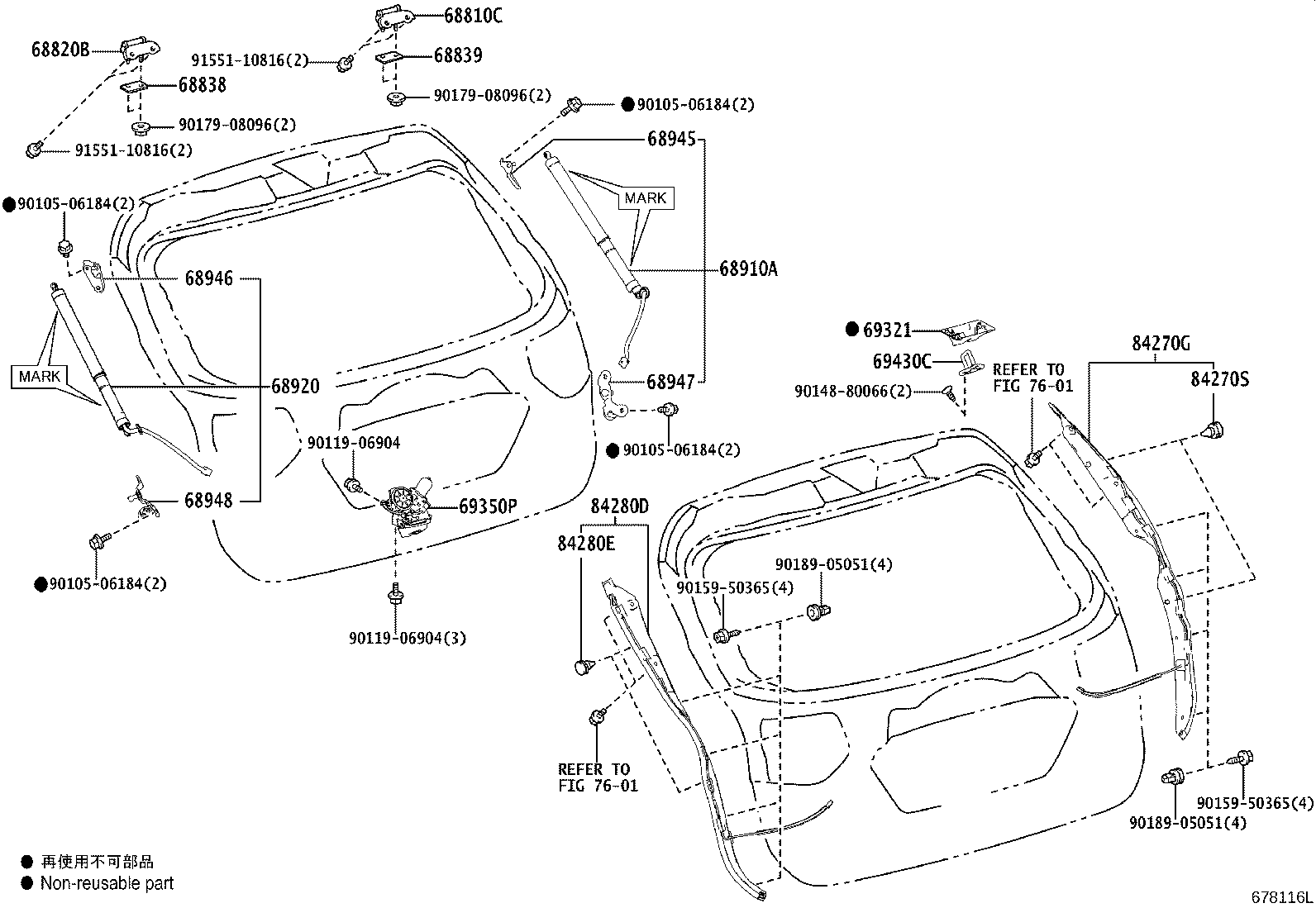

diagram 68810C 68820B 68838 68839 68910A 68920 68945 68946 68947 68948 69321 69350P 69430C 7601 7601 84270G 84270S 84280D 84280E 9010506184 9010506184 9010506184 9010506184 9011906904 9011906904 9014880066 9015950365 9015950365 9017908096 9017908096 9018905051 9018905051 9155110816 9155110816
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-48130

AVU65,ZSU6#

 1
68820B - HINGE ASSY, BACK DOOR, LH
68810-48130

AVU65,ZSU6#

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-48110

AVU65,ZSU6#

厚さ=1.0,厚さ=1.0

 1
68838-48130

AVU65,ZSU6#

厚さ=2.0,厚さ=2.0

 1
68838-48120

AVU65,ZSU6#

厚さ=1.5,厚さ=1.5

 1
68839 - PAD, BACK DOOR HINGE, NO.2
68838-48120

AVU65,ZSU6#

厚さ=1.5

 1
68838-48110

AVU65,ZSU6#

厚さ=1.0

 1
68838-48130

AVU65,ZSU6#

*201,厚さ=2.00,ﾏｰｸ H

 1
68910A - UNIT ASSY SET, POWER BACK DOOR, RH
68910-49067

AVU65,ZSU6#..PREM

 1
68910-49026

AVU65,ZSU6#..PREM

 1
68910-49025

AVU65,ZSU6#..PREM

 1
68920 - UNIT ASSY SET, POWER BACK DOOR, LH
68920-49067

AVU65,ZSU6#..PREM

 1
68920-49025

AVU65,ZSU6#..PREM

 1
68920-49026

AVU65,ZSU6#..PREM

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-48080

AVU65,ZSU6#..PREM

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-48080

AVU65,ZSU6#..PREM

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68903-48011

AVU65,ZSU6#..PREM

 1
68903-48010

AVU65,ZSU6#..PREM

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68904-48010

AVU65,ZSU6#..PREM

 1
68904-48011

AVU65,ZSU6#..PREM

 1
69321 - COVER, BACK DOOR LOCK
69321-48070

AVU65,ZSU6#..PREM

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―)

 1
69321-48050

AVU65,ZSU6#..PREM

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-48062

AVU65,ZSU6#..PREM

 1
69350-48063

AVU65,ZSU6#..PREM

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-48030

AVU65,ZSU6#

 1
84270G - SENSOR ASSY, POWER BACK DOOR, RH
84270-48020

AVU65,ZSU6#..PREM

 1
84270S - CLIP(POWER BACK DOOR SENSOR, RH)
61617-42040

AVU65,ZSU6#..PREM

 2
90467-10213C0

AVU65,ZSU6#..PREM

BLACK

 2
84280D - SENSOR ASSY, POWER BACK DOOR, LH
84280-48020

AVU65,ZSU6#..PREM

 1
84280E - CLIP (FOR POWER BACK DOOR SENSOR, LH)
90467-10213C0

AVU65,ZSU6#..PREM

BLACK

 2
61617-42040

AVU65,ZSU6#..PREM

 2
Common parts
90105-06184
90119-06904
90148-80066
90159-50365
90179-08096
90189-05051
91551-10816
Linked diagrams
7601

(1312- )

Click highlighted areas on diagram

ﾅｼ(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)

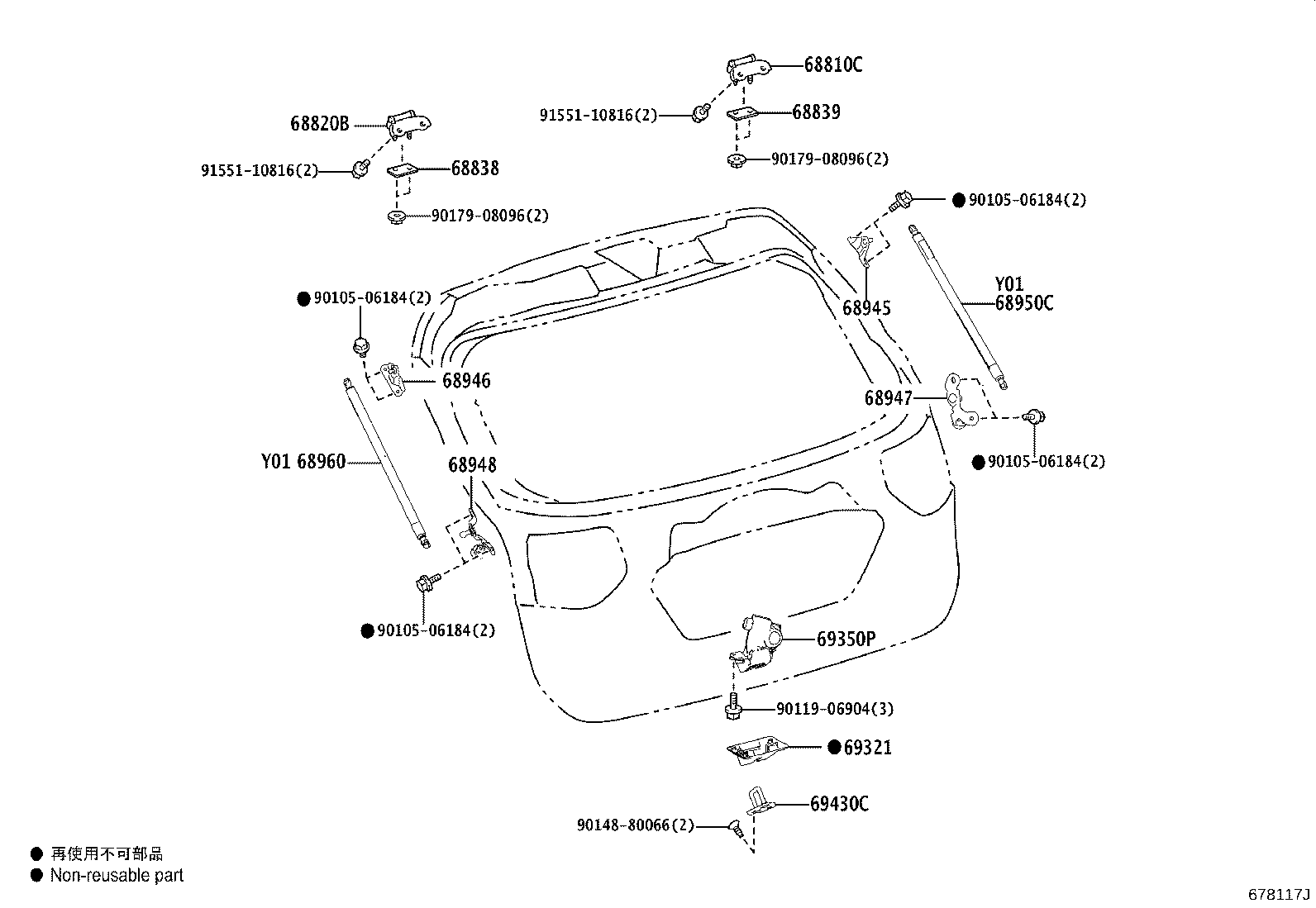

diagram 68810C 68820B 68838 68839 68945 68946 68947 68948 68950C 68960 69321 69350P 69430C 9010506184 9010506184 9010506184 9010506184 9011906904 9014880066 9017908096 9017908096 9155110816 9155110816
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-48130

AVU65,ZSU6#

 1
68820B - HINGE ASSY, BACK DOOR, LH
68810-48130

AVU65,ZSU6#

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-48110

AVU65,ZSU6#

厚さ=1.0,厚さ=1.0

 1
68838-48130

AVU65,ZSU6#

厚さ=2.0,厚さ=2.0

 1
68838-48120

AVU65,ZSU6#

厚さ=1.5,厚さ=1.5

 1
68839 - PAD, BACK DOOR HINGE, NO.2
68838-48120

AVU65,ZSU6#

厚さ=1.5

 1
68838-48110

AVU65,ZSU6#

厚さ=1.0

 1
68838-48130

AVU65,ZSU6#

*201,厚さ=2.00,ﾏｰｸ H

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-48080

AVU65,ZSU6#..PREM

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-48080

AVU65,ZSU6#..PREM

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68903-48011

AVU65,ZSU6#..PREM

 1
68903-48010

AVU65,ZSU6#..PREM

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68904-48010

AVU65,ZSU6#..PREM

 1
68904-48011

AVU65,ZSU6#..PREM

 1
69321 - COVER, BACK DOOR LOCK
69321-48070

AVU65,ZSU6#..PREM

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―)

 1
69321-48050

AVU65,ZSU6#..PREM

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-48062

AVU65,ZSU6#..PREM

 1
69350-48063

AVU65,ZSU6#..PREM

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-48030

AVU65,ZSU6#

 1
Common parts
90105-06184
90119-06904
90148-80066
90179-08096
91551-10816
