ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

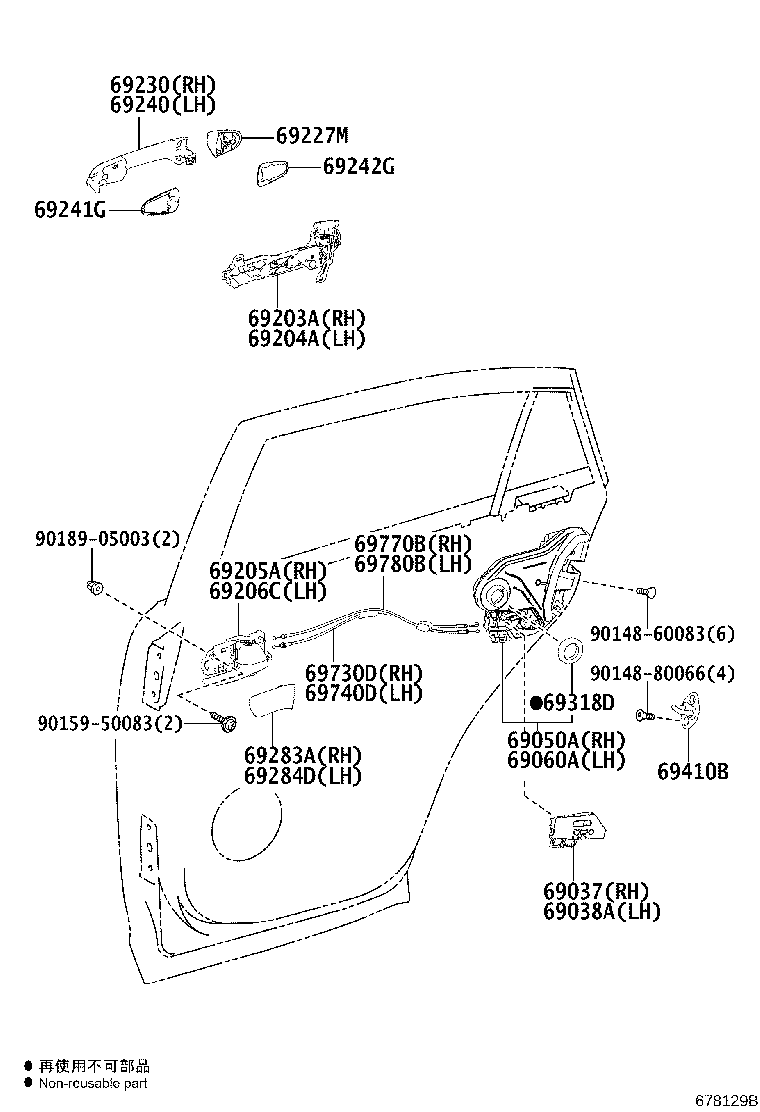

Click highlighted areas on diagram

diagram 69037 69038A 69050A 69060A 69203A 69204A 69205A 69206C 69227M 69230 69240 69241G 69242G 69283A 69284D 69318D 69410B 69730D 69740D 69770B 69780B 9014860083 9014880066 9015950083 9018905003
Part # Description Qty Price
69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH
69037-30010

AVU65,ZSU6#

 1
69038A - COVER SUB-ASSY, REAR DOOR LOCK, LH
69038-30010

AVU65,ZSU6#

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-48060

AVU65,ZSU6#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-48060

AVU65,ZSU6#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-48050

AVU65,ZSU6#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-48050

AVU65,ZSU6#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-30210C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
69205-30210C1

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-30210C1

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
69206-30210C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
69227M - COVER, REAR DOOR OUTSIDE HANDLE
69250-30100

AVU65,ZSU6#

*CR

 2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-48100B1

AVU65,ZSU6#

DK. STEEL MC.,1H2

 1
69210-48100C0

AVU65,ZSU6#

BLACK,202

 1
69210-48100D1

AVU65,ZSU6#..PREM

RED M.M.,3R3

 1
69210-48100B0

AVU65,ZSU6#

SILVER ME.,1F7

 1
69210-48100A0

AVU65,ZSU6#

WHITE PEARL CS.,070

 1
69210-48100E0

AVU65,ZSU6#

DK.BROWN ME.,4U5

 1
69210-48100D0

AVU65,ZSU6#

BLACKISH RED MC.,3R0

 1
69210-48100C1

AVU65,ZSU6#

SPARKLING BLACK PEARL CS.,220

 1
69210-48100J0

AVU65,ZSU6#..PREM

BLUE ME.,8T7

 1
69210-48100C2

AVU65,ZSU6#

BLACKISH AGEHA GF.,221

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-48100B1

AVU65,ZSU6#

DK. STEEL MC.,1H2

 1
69210-48100B0

AVU65,ZSU6#

SILVER ME.,1F7

 1
69210-48100C2

AVU65,ZSU6#

BLACKISH AGEHA GF.,221

 1
69210-48100E0

AVU65,ZSU6#

DK.BROWN ME.,4U5

 1
69210-48100C0

AVU65,ZSU6#

BLACK,202

 1
69210-48100J0

AVU65,ZSU6#..PREM

BLUE ME.,8T7

 1
69210-48100A0

AVU65,ZSU6#

WHITE PEARL CS.,070

 1
69210-48100C1

AVU65,ZSU6#

SPARKLING BLACK PEARL CS.,220

 1
69210-48100D0

AVU65,ZSU6#

BLACKISH RED MC.,3R0

 1
69210-48100D1

AVU65,ZSU6#..PREM

RED M.M.,3R3

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-30120

AVU65,ZSU6#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-30100

AVU65,ZSU6#

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-30060C1

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
69283-30060C2

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-30060C1

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
69284-30060C2

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

AVU65,ZSU6#

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20110

AVU65,ZSU6#

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-48070

AVU65,ZSU6#

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-48070

AVU65,ZSU6#

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-48080

AVU65,ZSU6#

 1
69770-48081

AVU65,ZSU6#

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-48081

AVU65,ZSU6#

 1
69770-48080

AVU65,ZSU6#

 1
Common parts
90148-60083
90148-80066
90159-50083
90189-05003
