ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid

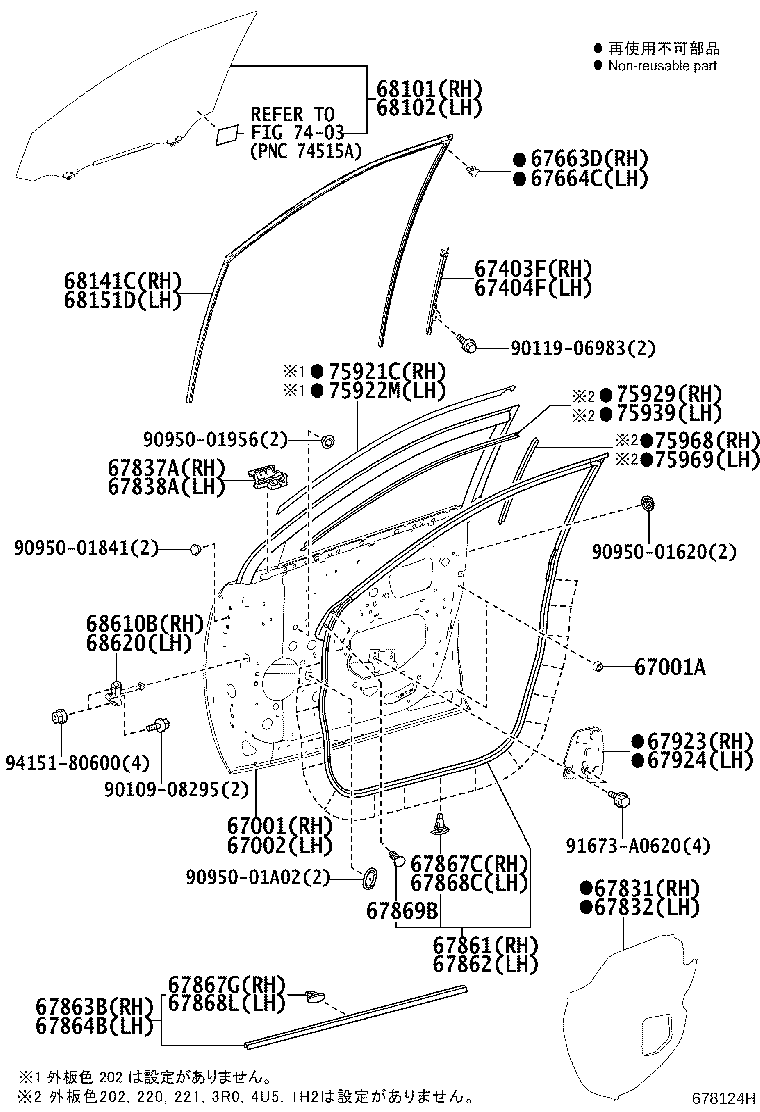

ILLUST NO. 1 OF 2(1312-1705)
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-48150 |
AVU65,ZSU6# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09137 |
AVU65,ZSU6# |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-48150 |
AVU65,ZSU6# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-42040 |
AVU65,ZSU6# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-42040 |
AVU65,ZSU6# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-42020 |
AVU65,ZSU6# |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-42020 |
AVU65,ZSU6# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-48060 |
AVU65,ZSU6# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-48060 |
AVU65,ZSU6# |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-48020 |
AVU65,ZSU6# |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-48010 |
AVU65,ZSU6# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-48100 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 67861-48090 |
AVU65,ZSU6# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-48100 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 67862-48090 |
AVU65,ZSU6# |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-48020 |
AVU65,ZSU6# |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-48020 |
AVU65,ZSU6# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AVU65,ZSU6# |
17 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52030 |
AVU65,ZSU6# |
9 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AVU65,ZSU6# |
17 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52020 |
AVU65,ZSU6# |
9 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
AVU65,ZSU6# |
4 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-48050 |
AVU65,ZSU6# |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-48030 |
AVU65,ZSU6# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-48161 |
AVU65,ZSU6#..PREM |
1 | ||
| 68101-48160 |
AVU65,ZSU6#..PREM *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-48150 |
AVU65,ZSU6#..PREM *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-48151 |
AVU65,ZSU6#..PREM |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-48070 |
AVU65,ZSU6# |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-48070 |
AVU65,ZSU6# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-48070 |
AVU65,ZSU6# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-48070 |
AVU65,ZSU6# |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-48050 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-48050 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 91673-A0620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7403 | ||||

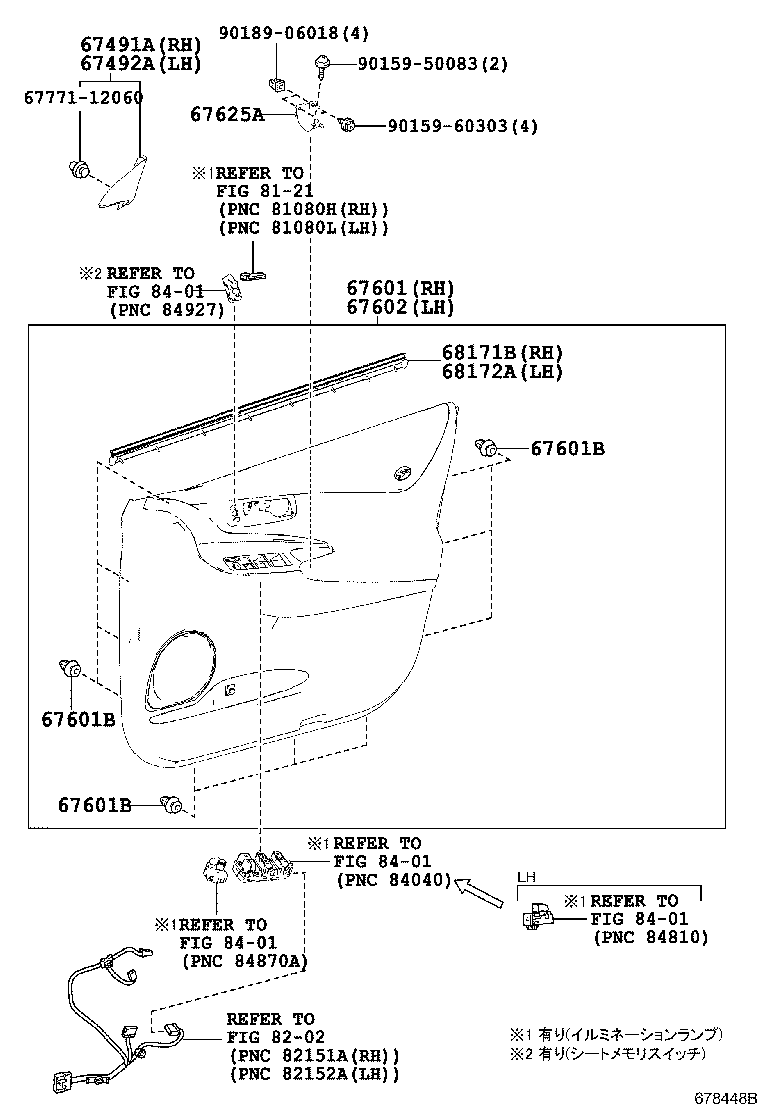

ILLUST NO. 2 OF 2(1312- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-48060C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-48060C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-48D60C3 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67610-48D60C3 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67610-48D60C3 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,DP.BORDEAUX/DK.RED/BLACK,TRIM43 |
1 | ||
| 67610-48D50C3 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67610-48D60C3 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DP.BORDEAUX/DK.RED/BLACK,TRIM43 |
1 | ||
| 67610-48D60C4 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,STEEL MAUVE/AURORA/BLACK,TRIM44 |
1 | ||
| 67610-48D50C1 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67610-48D60C1 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67610-48D60C1 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67610-48D60C4 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,STEEL MAUVE/AURORA/BLACK,TRIM44 |
1 | ||
| 67610-48D5021 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67610-48D6020 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67610-48D6021 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67610-48D60C8 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67610-48D5045 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67610-48D6020 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67610-48D6021 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67610-48D5042 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67610-48D50C9 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67610-48D60C8 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67610-48D6026 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67610-48D6027 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67610-48D6027 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67610-48D6024 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67610-48D6026 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67610-48D6024 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
AVU65,ZSU6# |
20 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
AVU65,ZSU6# |
20 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
AVU65,ZSU6# |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-48D60C1 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67620-48D60C1 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67620-48D60C4 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,STEEL MAUVE/AURORA/BLACK,TRIM44 |
1 | ||
| 67620-48D60C3 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67620-48D60C1 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67620-48D6024 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67620-48D60C4 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,STEEL MAUVE/AURORA/BLACK,TRIM44 |
1 | ||
| 67620-48D6023 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67620-48D6021 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67620-48D6024 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67620-48D6049 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67620-48D60N0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67620-48D6046 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67620-48D60N0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67645-48030 |
AVU65,ZSU6# |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-48060 |
AVU65,ZSU6# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-48060 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 67771-12060 | ||||
| 90159-50083 | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
